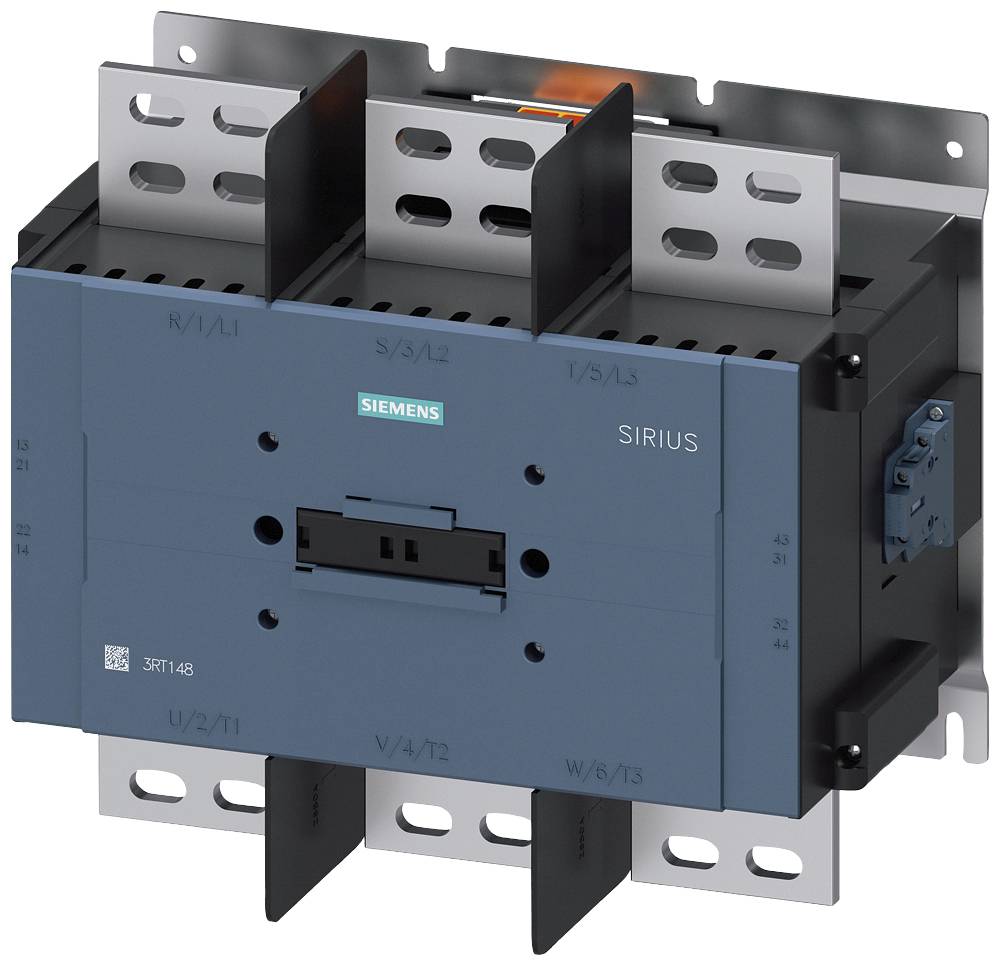

Siemens 3RT1485-6AP36 Contactor + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)
Product type
Contactor
No. of pins
3-pin
Packaging type
Piece
Type
3RT1485-6AP36
Switching voltage (max.)
690 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Contactor
- Type
3RT1485-6AP36
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
1700 A
- Compatible with
Siemens
- Compatible with series
Siemens Sirius series
- Features
+ auxiliary contact
- Max. temperature
40 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
FALSE
3
0
2
2
1700 A
Rail connection
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2870045 Siemens 3RT1485-6AP36 Contactor + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2870045 Siemens 3RT1485-6AP36 Contactor + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)
Description

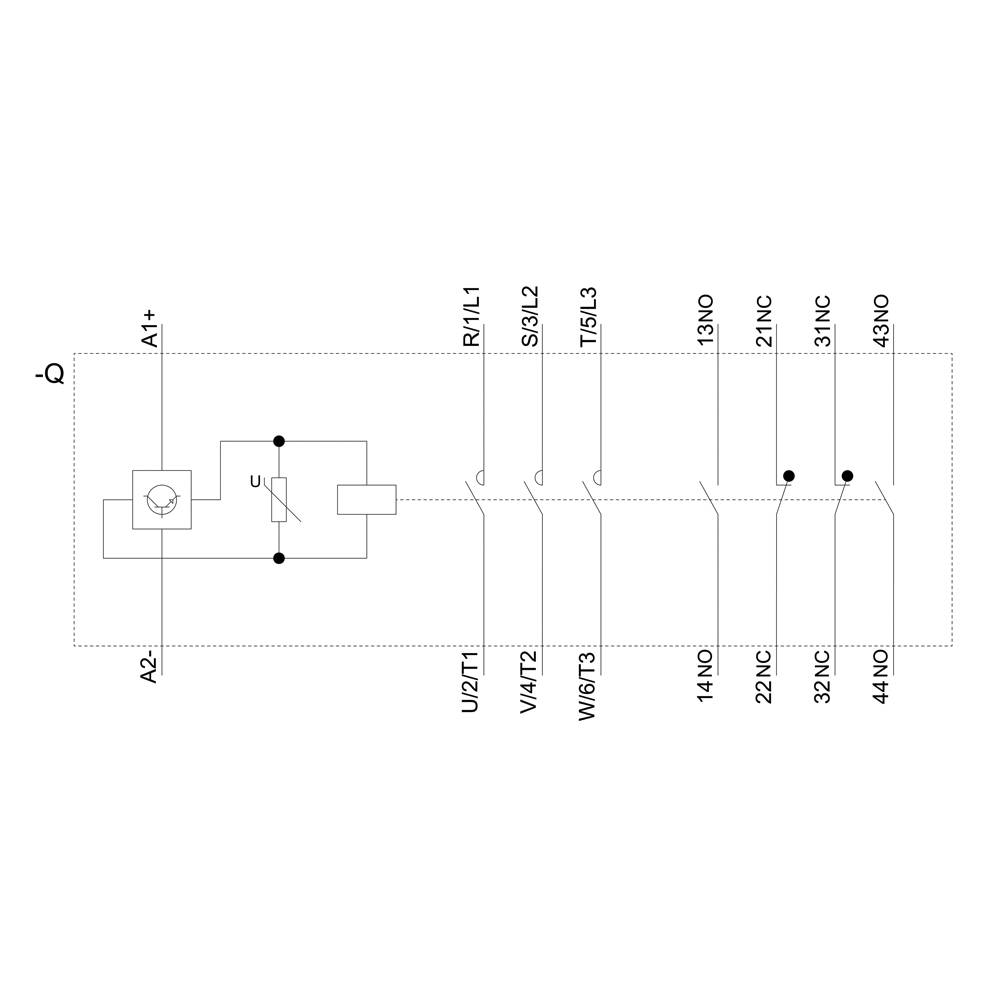

power contactor AC-1 1700 A / 690 V / 40 °C 3-pole, Uc: 220-240 V AC(50-60 Hz) / DC drive: conventional auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal Contactor SIRIUS 3RT14 for switching resistive loads.
The 3RT1 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. The contactors offer the best connection to the automation level for every application (direct or via PLC input). Pre-installed auxiliary switches reduce the complexity of your design. 3RT1 contactors are climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
Simple, efficient and always up to date - SIRIUS modular system.
The 3RT1 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. The contactors offer the best connection to the automation level for every application (direct or via PLC input). Pre-installed auxiliary switches reduce the complexity of your design. 3RT1 contactors are climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
Simple, efficient and always up to date - SIRIUS modular system.
