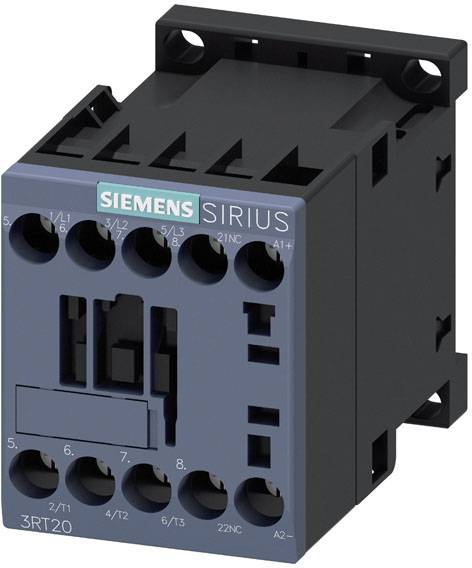

Siemens 3RT2016-1UB42 Contactor 1 breaker 22 kW 690 V 9 A + varistor Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Nominal voltage
690 V
Current load
9 A
Power
22 kW
Datasheet (PDF)
Technical specifications

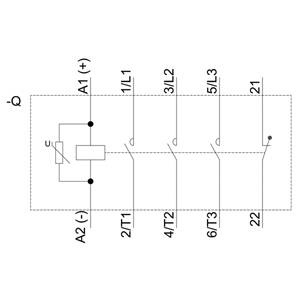

- Number of NO contacts / for main contacts: 3
- Number of NC contacts / for auxiliary contacts / instantaneous switching: 1
- Operating current at AC-1 / at 400 V / at ambient temperature 40 °C: 22 A
- Operating current at AC-3 / at 400 V: 9 A
- Tightening capacity of the magnetic coil at DC 4 W.
- Type of connectable wire cross-sections / for AWG lines / for main contacts: 2x (20 ... 16), 2x (18 ... 14), 2x 12
- Type of connectable wire cross-sections / with AWG lines / for auxiliary contacts: 2x (20 ... 16), 2x (18 ... 14), 2x 12
- Installation height at height above sea level / maximum: 2000 m.
- Range installation: Yes
- Front contact protection: Finger-safe with vertical contact from the front
- Mirror contact: Yes
- Main circuit surge resistance: 6 kV
- Maximum permissible voltage for safe disconnection / between coil and main contacts: 400 V.
- Product extension / auxiliary switch: Yes
- Packaging type
Piece
- Product type
Contactor
- Type
3RT2016-1UB42
- Type
S00
- No. of pins
3-pin
- Contact type
1 breaker
- Auxiliary contact type
1 breaker
- Nominal voltage
690 V
- Control voltage (min.)
24 V DC
- Control voltage (max.)
24 V DC
- Control voltage range
24 - 24 V DC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
22 A
- Current load
9 A
22 kW
- Features
+ varistor
- Mounting type
Screw-fit
Snap-in
DIN rail
- Connection
Screws
- Durability
30000000
- Response time
13 ms
- Fall time
100 ms
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C

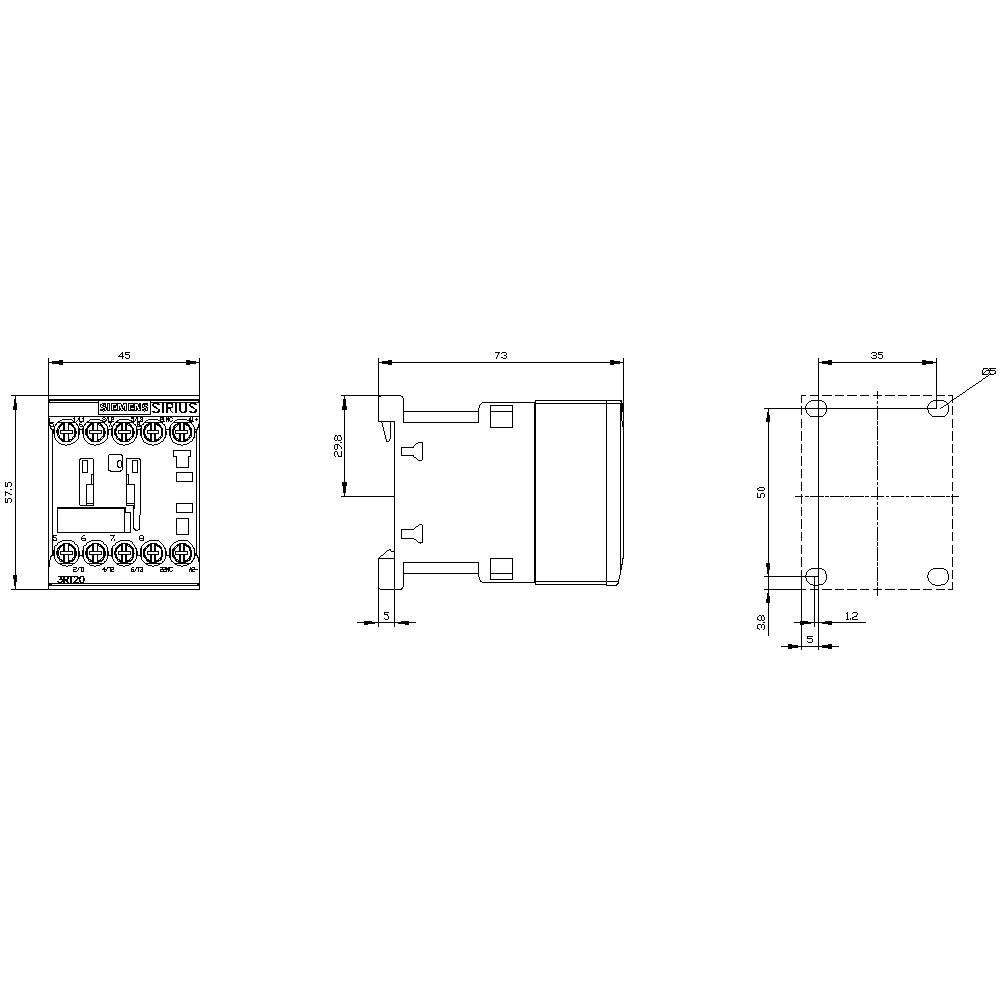

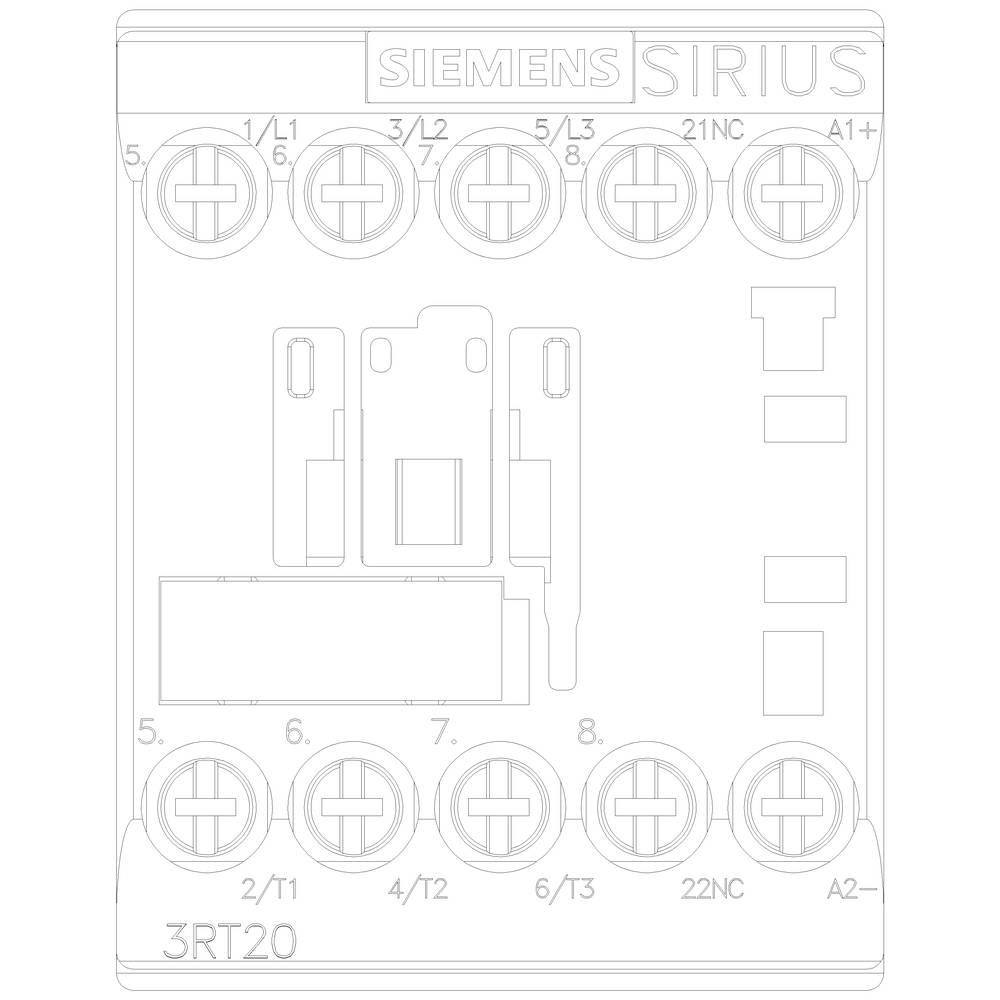

- Width
45 mm
- Height
58 mm
- Depth
73 mm
- Dim
(W x H x D) 45 x 58 x 73 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2863549 Siemens 3RT2016-1UB42 Contactor 1 breaker 22 kW 690 V 9 A + varistor Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2863549 Siemens 3RT2016-1UB42 Contactor 1 breaker 22 kW 690 V 9 A + varistor Piece 1 pc(s)
Description
Power contactor, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, DC 24 V, with integrated varistor, auxiliary contacts: 1 Ö, SIRIUS 3RT2 screw terminals for switching motors.
The 3RT2 contactors are part of the SIRIUS modular system with their optimally coordinated products. They convince by high power with a compact design and high contact reliability. They can be combined in a variety of ways with other components in the load feeder. Many of the device combinations have been tested at the factory. The contactors provide optimum connection to the controller (parallel, via ASi or IO-Link) for each application. Integrated auxiliary switches reduce the complexity of your setup. The front connections allow simple wiring. The 3RT2 contactors are climate-proof, worldwide approved (e.g. IEC and UL/CSA) and IE3/IE4ready.
They are available in various sizes and in a wide power range with AC and DC actuation. Apart from screw connection technology, the devices are also available continuously with spring connection for a fast, maintenance-free and vibration-proof connection.

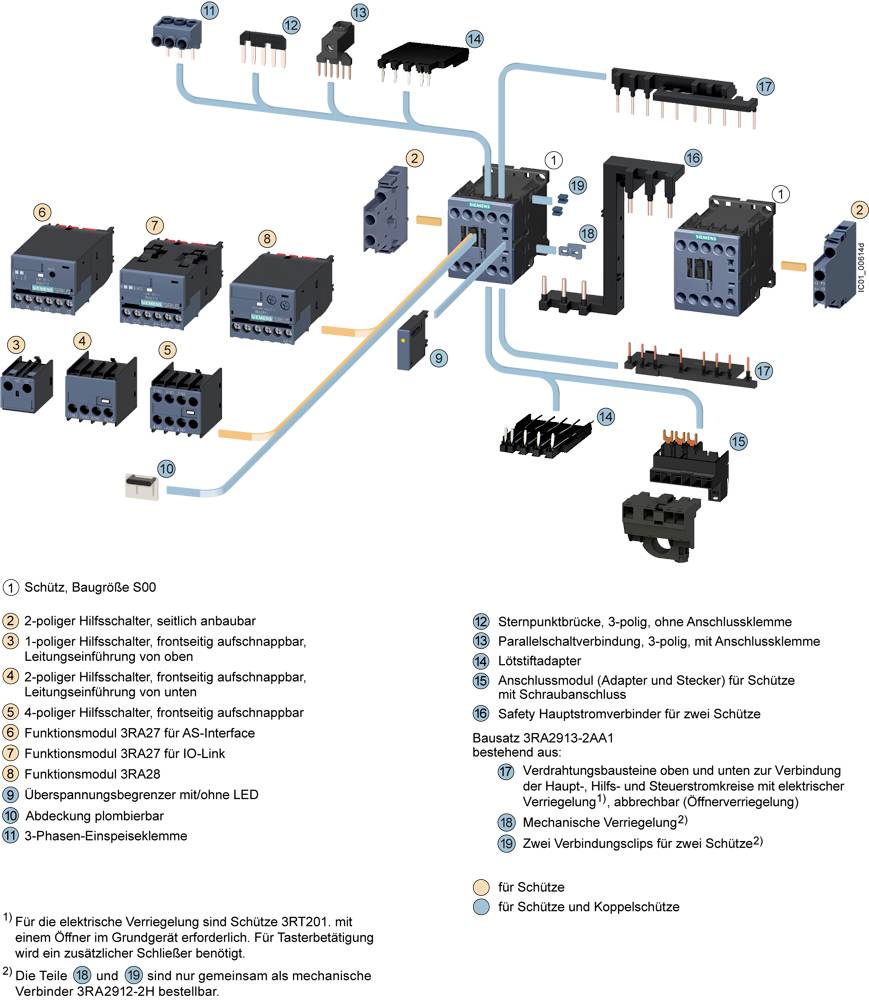

The comprehensive accessories, such as auxiliary switch, auxiliary release, etc. are uniform for all sizes. The available connection modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring effort.
The 3RT2 contactors replace the tried-and-tested series 3RT1 (up to 55 kW).
Simple, efficient, always up-to-date - the SIRIUS modular system.
This text is machine translated.
The 3RT2 contactors are part of the SIRIUS modular system with their optimally coordinated products. They convince by high power with a compact design and high contact reliability. They can be combined in a variety of ways with other components in the load feeder. Many of the device combinations have been tested at the factory. The contactors provide optimum connection to the controller (parallel, via ASi or IO-Link) for each application. Integrated auxiliary switches reduce the complexity of your setup. The front connections allow simple wiring. The 3RT2 contactors are climate-proof, worldwide approved (e.g. IEC and UL/CSA) and IE3/IE4ready.
They are available in various sizes and in a wide power range with AC and DC actuation. Apart from screw connection technology, the devices are also available continuously with spring connection for a fast, maintenance-free and vibration-proof connection.
The comprehensive accessories, such as auxiliary switch, auxiliary release, etc. are uniform for all sizes. The available connection modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring effort.
The 3RT2 contactors replace the tried-and-tested series 3RT1 (up to 55 kW).
Simple, efficient, always up-to-date - the SIRIUS modular system.
This text is machine translated.
