Name: Siemens 3RT2046-1NF34 Contactor 2 makers, 2 breakers 148 kW 1000 V 96 A + varistor Compatible with (relay brand): Siemen
Brand: Siemens
SKU: 2863609

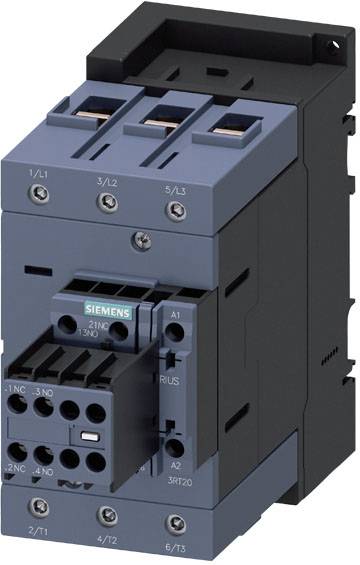

A Siemens electrical contactor with multiple connection terminals, used in industrial circuits for machine control.

An open electrical cabinet reveals cables and electronic components, beside raindrops on a glass surface with a blurred background.

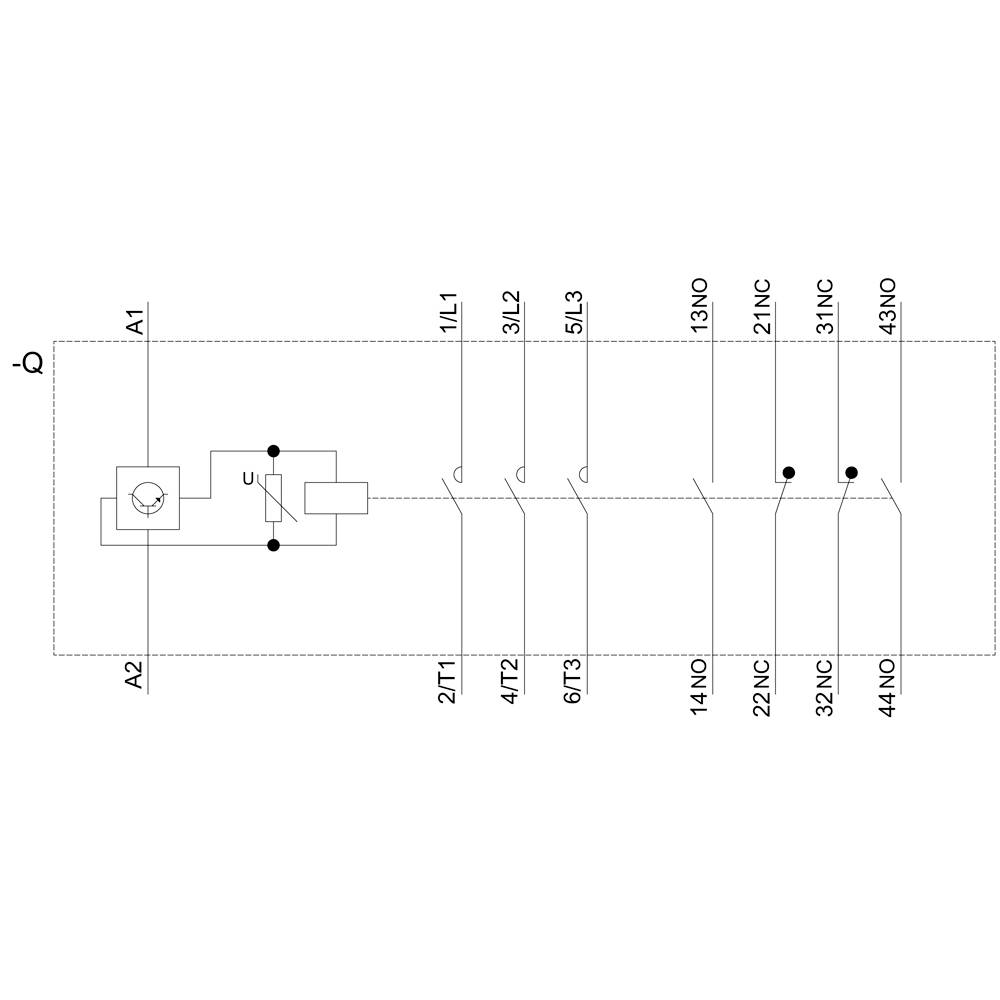

'Schematic representation of an electrical circuit diagram with relay. Shows connections, numberings and contact positions.'

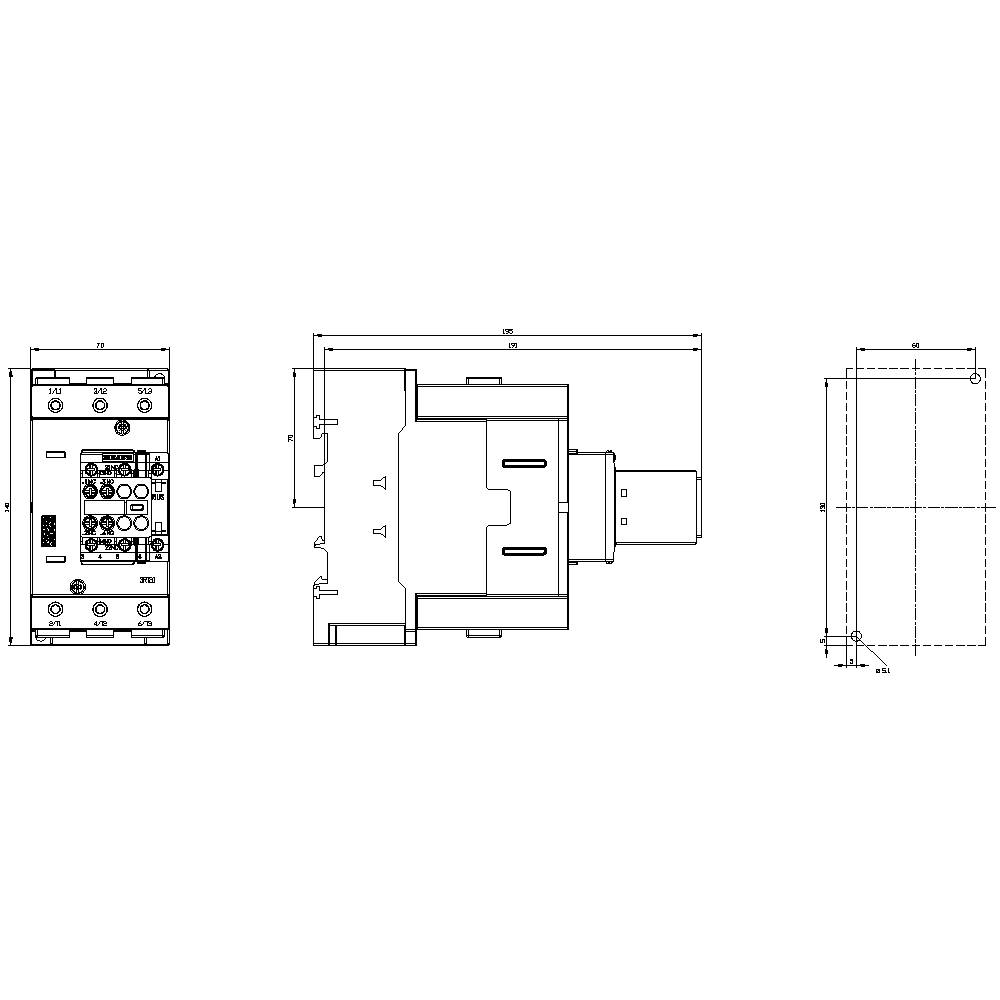

Technical drawing of an electrical component with front, side, and top views. Includes connection details and dimensions.

1/4

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

1000 V

Current load

96 A

Power

148 kW

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of NO contacts / for main contacts: 3
Number of NO contacts / for auxiliary contacts / instantaneous switching: 2
Number of NC contacts / for auxiliary contacts / instantaneous switching: 2
Operating current at AC-1 / at 400 V / at ambient temperature 40 °C: 130 A
Operating current at AC-3 / at 400 V: 95 A
Tightening capacity of the magnetic coil at DC 76 W.
Type of connectable wire cross-sections / for AWG lines / for main contacts: 2x (10 ... 1/0), 1x (10 ... 2)
Type of connectable wire cross-sections / with AWG lines / for auxiliary contacts: 2x (20 ... 16), 2x (18 ... 14)
Installation height at height above sea level / maximum: 2000 m.
Range installation: Yes
Front contact protection: Finger-safe with vertical contact from the front
Mechanical life (switching cycles) of the contactor with fitted electronic auxiliary switch block / typical: 5000000
Mechanical life (switching cycles) of the contactor with the auxiliary switch block attached / typical: 10000000
Mirror contact: Yes
Main circuit surge resistance: 8 kV
Maximum permissible voltage for safe disconnection / between coil and main contacts: 690 V.
Product extension / auxiliary switch: Yes

Packaging type: Piece

Product type: Contactor

Type: 3RT2046-1NF34

Type: S3

No. of pins: 3-pin

Contact type: 2 makers
2 breakers

Auxiliary contact type: 2 makers

Nominal voltage: 1000 V

Control voltage (min.): 83 V AC
83 V DC

Control voltage (max.): 155 V AC
155 V DC

Control voltage range: 83, 83 - 155, 155 V AC, V DC

Switching voltage (max.): 1000 V DC/AC

Max. switching capacity: 148 W

Permanent current (max.): 130 A

Current load: 96 A

: 148 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + varistor

Mounting type: Screw-fit
Snap-in
DIN rail

Connection: Screws

Durability: 10000000

Response time: 57 ms

Fall time: 70 ms

: IP00
IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 70 mm

Height: 140 mm

Depth: 195 mm

Dim: (W x H x D) 70 x 140 x 195 mm

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Power

No. of pins

Nominal voltage

Siemens 3RT1355-6AE36 Contactor 2 makers, 2 breakers 75000 W 690 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863517

Unavailable

Conrad Electronic

75000 W

4-pin

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1355-6AF36 Contactor 2 makers, 2 breakers 75000 W 690 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863519

Unavailable

Conrad Electronic

75000 W

4-pin

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1355-6AP36 Contactor 2 makers, 2 breakers 75000 W 690 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863521

Unavailable

Conrad Electronic

75000 W

4-pin

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1355-6AR36 Contactor 2 makers, 2 breakers 75000 W 690 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863523

Unavailable

Conrad Electronic

75000 W

4-pin

690 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1363-6AE36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:2863524

Unavailable

Conrad Electronic

90000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1363-6AF36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863525

Unavailable

Conrad Electronic

90000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1363-6AP36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863526

Unavailable

Conrad Electronic

90000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1363-6AR36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863527

Unavailable

Conrad Electronic

90000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1364-6AE36 Contactor 2 makers, 2 breakers 110000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:2863528

Unavailable

Conrad Electronic

110000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3RT1364-6AF36 Contactor 2 makers, 2 breakers 110000 W 1000 V + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:2863529

Unavailable

Conrad Electronic

110000 W

4-pin

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2863609 Siemens 3RT2046-1NF34 Contactor 2 makers, 2 breakers 148 kW 1000 V 96 A + varistor Compatible with (relay brand): Siemen

User & Safety Instructions

User & Safety Instructions 2863609 Siemens 3RT2046-1NF34 Contactor 2 makers, 2 breakers 148 kW 1000 V 96 A + varistor Compatible with (relay brand): Siemen

Description

Power protection, AC-3e/AC-3, 95 A, 45 kW / 400 V, 3-pin, AC/DC 83-155 V, 50/60 Hz, with integrated varistor, Auxiliary contacts: 2 NO + 2 NC, screw terminal, auxiliary switch available SIRIUS 3RT2 power relays for switching motors.
The 3RT2 contactors are part of the SIRIUS modular system with their optimally coordinated products. They convince by high power with a compact design and high contact reliability. They can be combined in a variety of ways with other components in the load feeder. Many of the device combinations have been tested at the factory. The contactors provide optimum connection to the controller (parallel, via ASi or IO-Link) for each application. Integrated auxiliary switches reduce the complexity of your setup. The front connections allow simple wiring. The 3RT2 contactors are climate-proof, worldwide approved (e.g. IEC and UL/CSA) and IE3/IE4ready.
They are available in various sizes and in a wide power range with AC and DC actuation. Apart from screw connection technology, the devices are also available continuously with spring connection for a fast, maintenance-free and vibration-proof connection.
The comprehensive accessories, such as auxiliary switch, auxiliary release, etc. are uniform for all sizes. The available connection modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring effort.
The 3RT2 contactors replace the tried-and-tested series 3RT1 (up to 55 kW).
Simple, efficient, always up-to-date - the SIRIUS modular system.

This text is machine translated.
