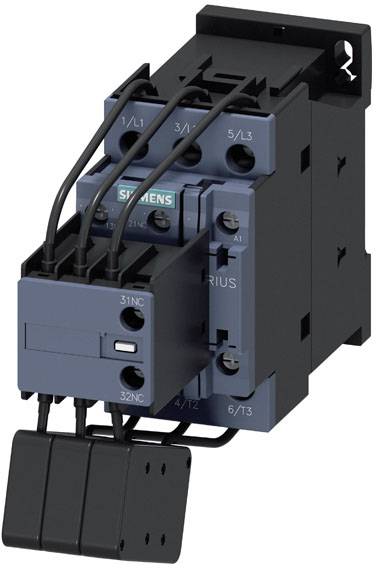

Siemens 3RT2645-1AP05 Capacitor bank contactor 3 makers 296 VA + auxiliary contact Compatible with (relay brand): Siemen

Capacitor contactor, AC-6b 75 kVar, / 400 V, 3-pole, AC 230 V, 50 Hz, auxiliary contacts: 2 NC, screw connection SIRIUS 3RT26 capacitor contactor for switching capacitive loads, for example Capacitor batteries or converters.The 3RT26 capacitor contactors are part of the SIRIUS modular system with their optimally coordinated products. They offer conventional drives for AC and DC operation as well as electronic drives with AC/DC operation. They convince by high power with a compact design and high contact reliability. They can be combined in a variety of ways with other components in the load feeder. Many of the device combinations have been tested at the factory. Integrated auxiliary switches reduce the complexity of your setup. The front connections allow simple wiring. The 3RT26 capacitor contactors are climate-proof and globally approved (e.g. IEC AND UL/CSA).They are available in various sizes and in a wide power range in AC and DC operation with screw connection technology.The comprehensive accessories are uniform for all scales.The 3RT26 capacitor contactors replace the 3RT16 capacitor contactors.Simple, efficient, always up-to-date - the SIRIUS modular system.

This text is machine translated.
