Name: Siemens 3RV2021-1JA20 Circuit breaker 1 pc(s) Adjustment range (amperage): 7 - 10 A Switching voltage (max.): 690 V AC (
Brand: Siemens
SKU: 1745980
Availability: BackOrder

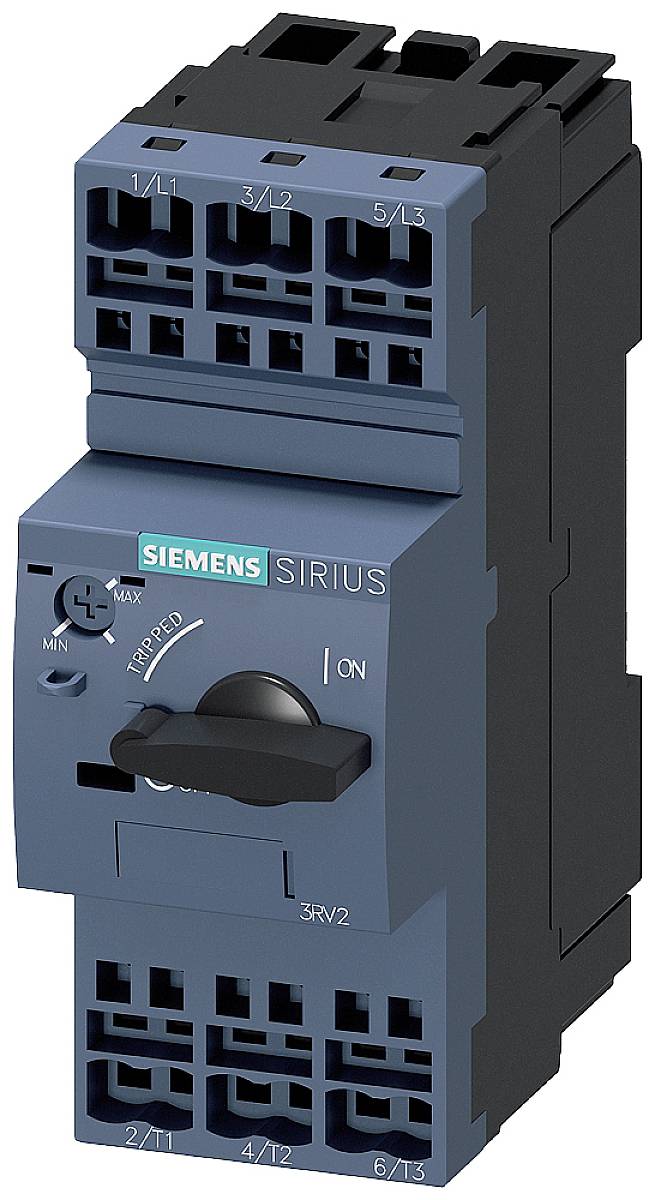

'Siemens Sirius Load Isolator' in Black and Blue, with Toggle Switch on Front for Electrical Applications.

Machine room with an open control panel and a veiled view through a rain-soaked window; emphasising technology and work environment.

'Switchgear Wiring: Diagram shows connections and components, including transverse auxiliary switches and terminal blocks.'

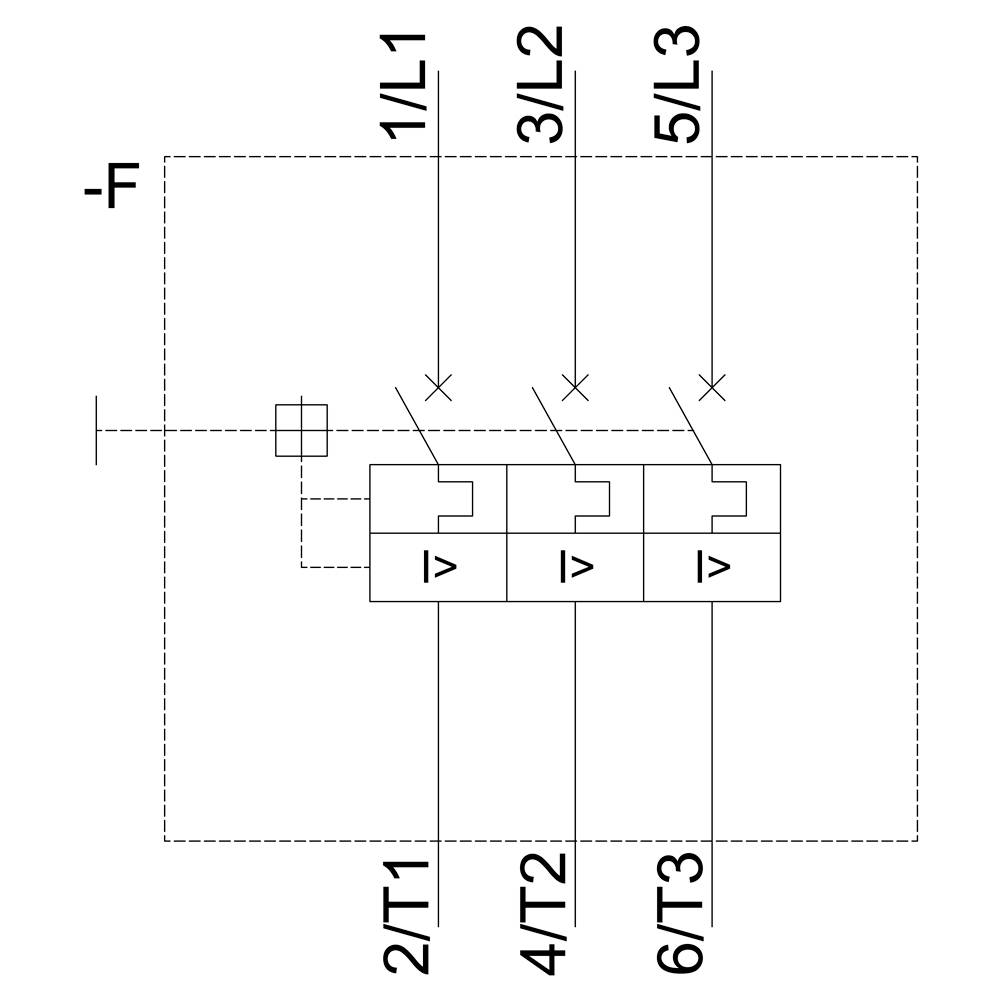

Switching symbol of a three-pole circuit breaker with terminals L1, L2, L3 at the top and T1, T2, T3 at the bottom, shown in the electrical circuit.

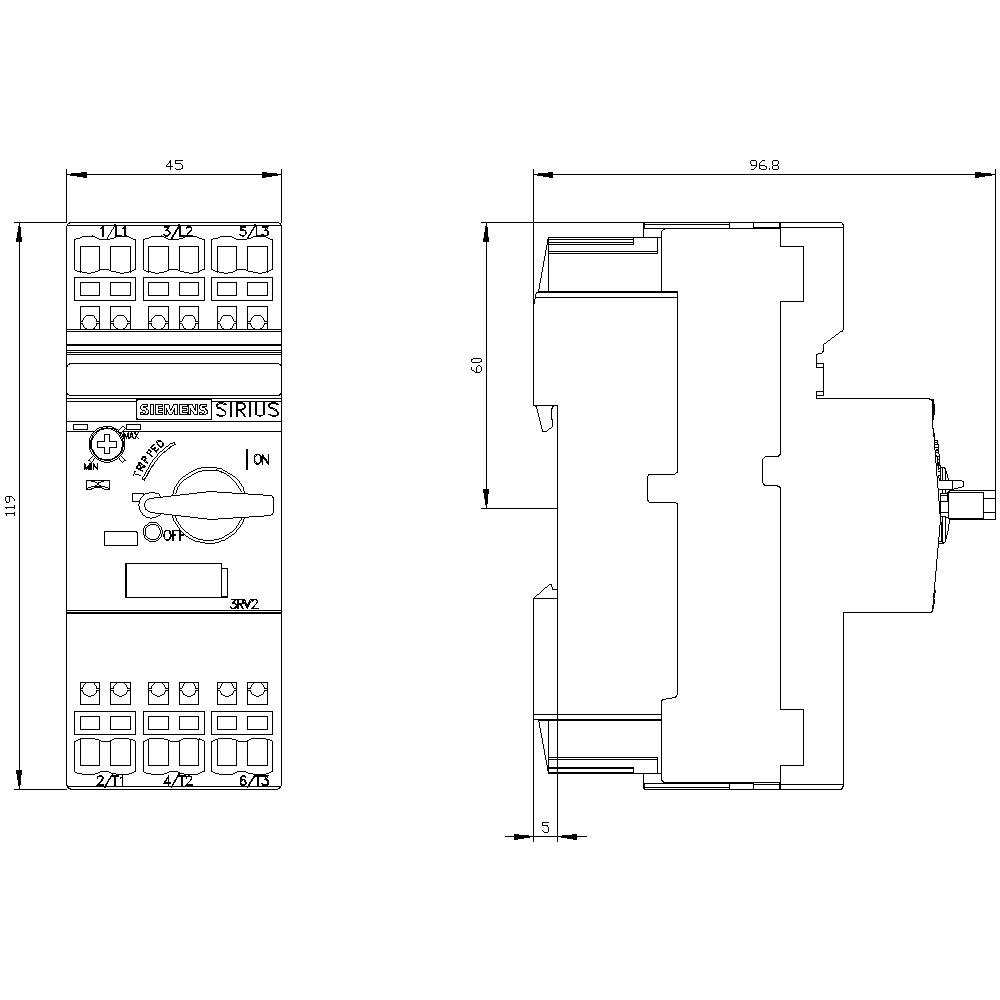

'Technical drawing of a switch. Left: Front view with buttons and scale. Right: Side view with dimensions.'

A switch symbol on a device labelled 'SIEMENS SIRIUS', showing positions 'TRIPPED', 'OFF' and 'ON'.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

10 A

Connection

Spring-loaded connector

Packaging type

Piece

Type

3RV2021-1JA20

Datasheet (PDF)

Dispatches on Tue 3 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 124.99 / piece)

€ 124.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 10 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 10 mm²
Max. Conductor cross-section (fine): 6 mm²

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2021-1JA20

Type: S0

Amperage adjustment range (min.): 7 A

Amperage adjustment range (max.): 10 A

Adjustment range (amperage): 7 - 10 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Spring-loaded connector

: IP20

Depth: 97 mm

Width: 45 mm

Height: 119 mm

Dim: (W x H x D) 45 x 119 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 119 mm

: 97 mm

: 4 kW

: FALSE

: 10 A

: FALSE

: 3

: 690-690 V

: 7-10 A

: IP20

: TRUE

: Spring clamp connection

: Turn button

: Magnetic

: 2.2 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
