Name: Siemens 3RV2021-4AA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 10 - 16 A Switching voltage (max.): 690 V AC
Brand: Siemens
SKU: 1745985
Availability: InStock

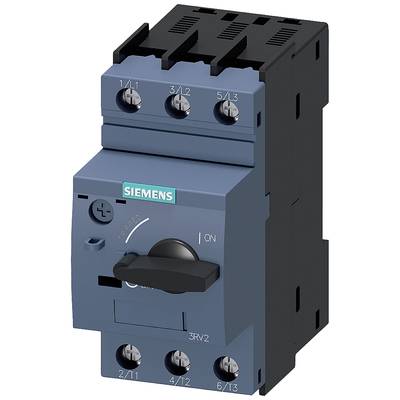

A blue Siemens load disconnector for controlling electrical circuits with four screw terminals for phase connections.

An open electrical cabinet with complex wiring beside a large window, through which rainwater is visible on a blue machine.

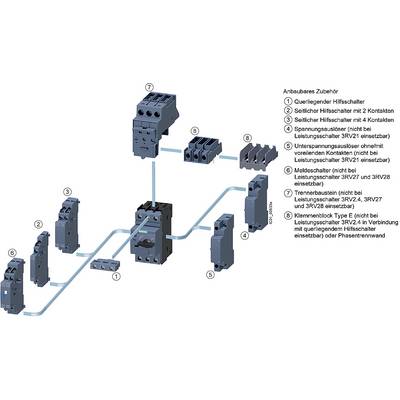

'Diagram shows various types of electrical switches and their accessories. Numbered parts are connected by lines indicating their usage.'

'Contactor Circuit Diagram: Top L1/L2/L3, bottom T1/T2/T3. Three switches in series, each marked with a triangle. Wiring between the contacts.'

Black and white sketch of an electronic switch front and side view with dimensional annotations; shows technical details of the device.

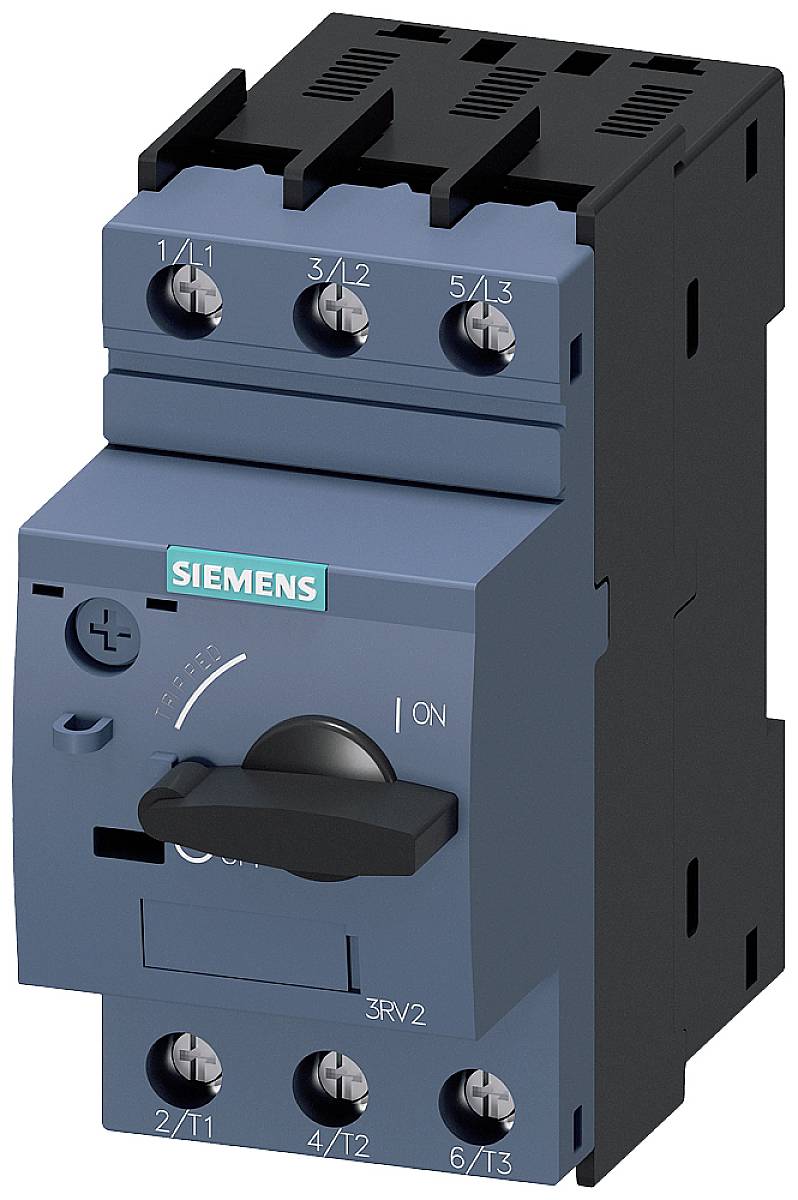

'Siemens switching device with rotary switch, marked with "TRIPPED" and "ON", and six terminal blocks at the top and bottom.'

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

16 A

Connection

Screws

Packaging type

Piece

Type

3RV2021-4AA10

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 109.99 / piece)

€ 109.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 16 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 10 mm²
Max. Conductor cross-section (fine): 10 mm²

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2021-4AA10

Type: S0

Amperage adjustment range (min.): 10 A

Amperage adjustment range (max.): 16 A

Adjustment range (amperage): 10 - 16 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (L x W x H) 150 cm x 45 mm x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Length: 150 cm

: 45

: 97 mm

: 97 mm

: 7.5 kW

: FALSE

: 16 A

: FALSE

: 3

: 690-690 V

: 10-16 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 4 kW

: 55 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
