Name: Siemens 3RV2021-4CA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 16 - 22 A Switching voltage (max.): 690 V AC
Brand: Siemens
SKU: 1702276
Availability: InStock

A Siemens motor circuit breaker, Model 3RV2, with rotary handle. Main terminals at the top, control terminals at the bottom.

A grey cupboard with open technical equipment, a window with water droplets to the right; the background shows blurred machinery.

'Diagram: Mounting Accessories for Power Switches. Components numbered, including various auxiliary switches and designs.'

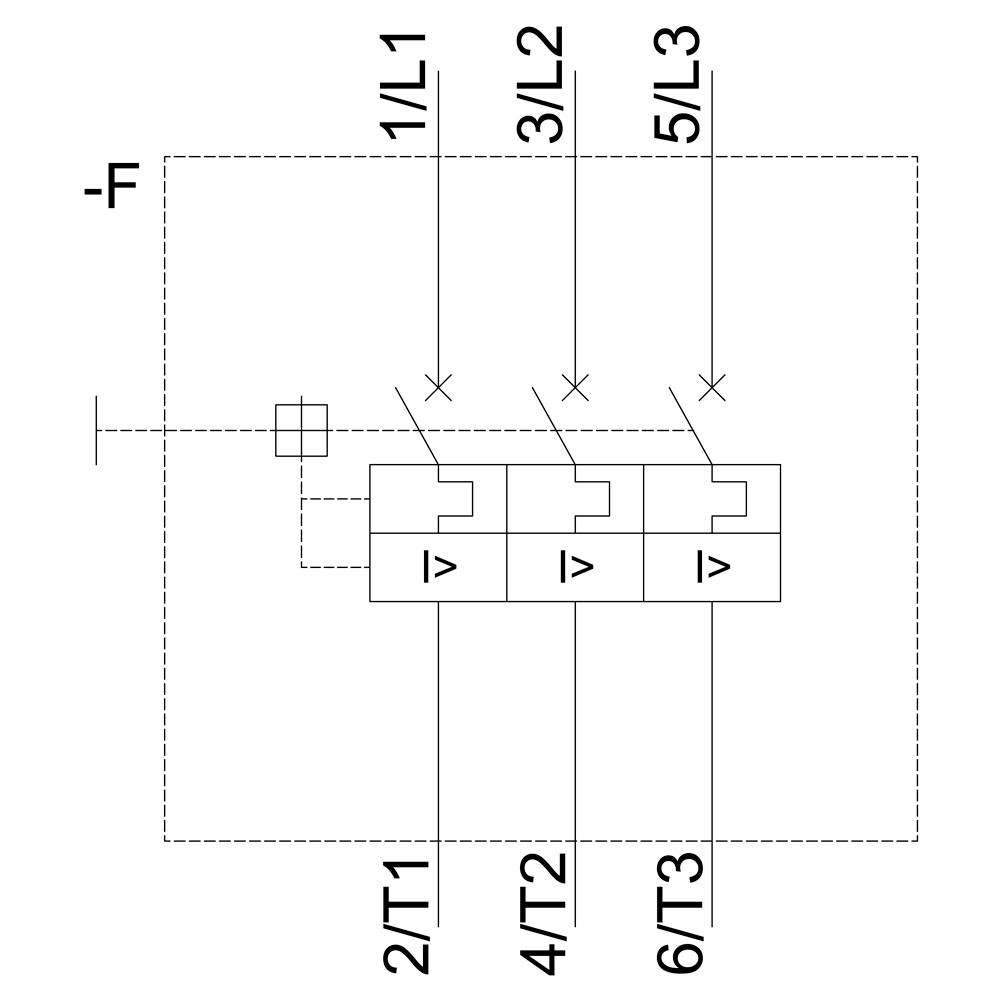

Circuit diagram of a three-phase power switch. Shows phases L1, L2, L3 at the top and T1, T2, T3 at the bottom. Symbolises current flow control.

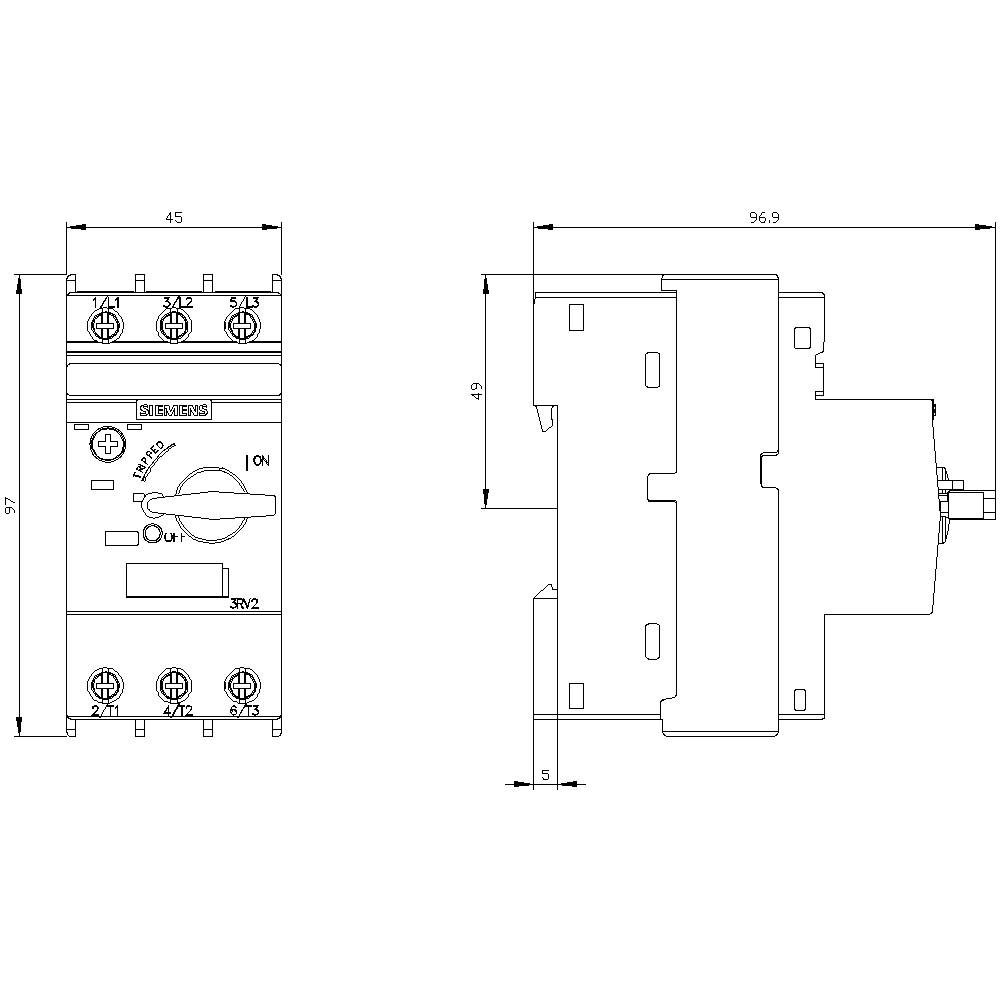

'Technical drawing of an electrical switch with front view on the left and side view on the right, dimensions in millimetres.'

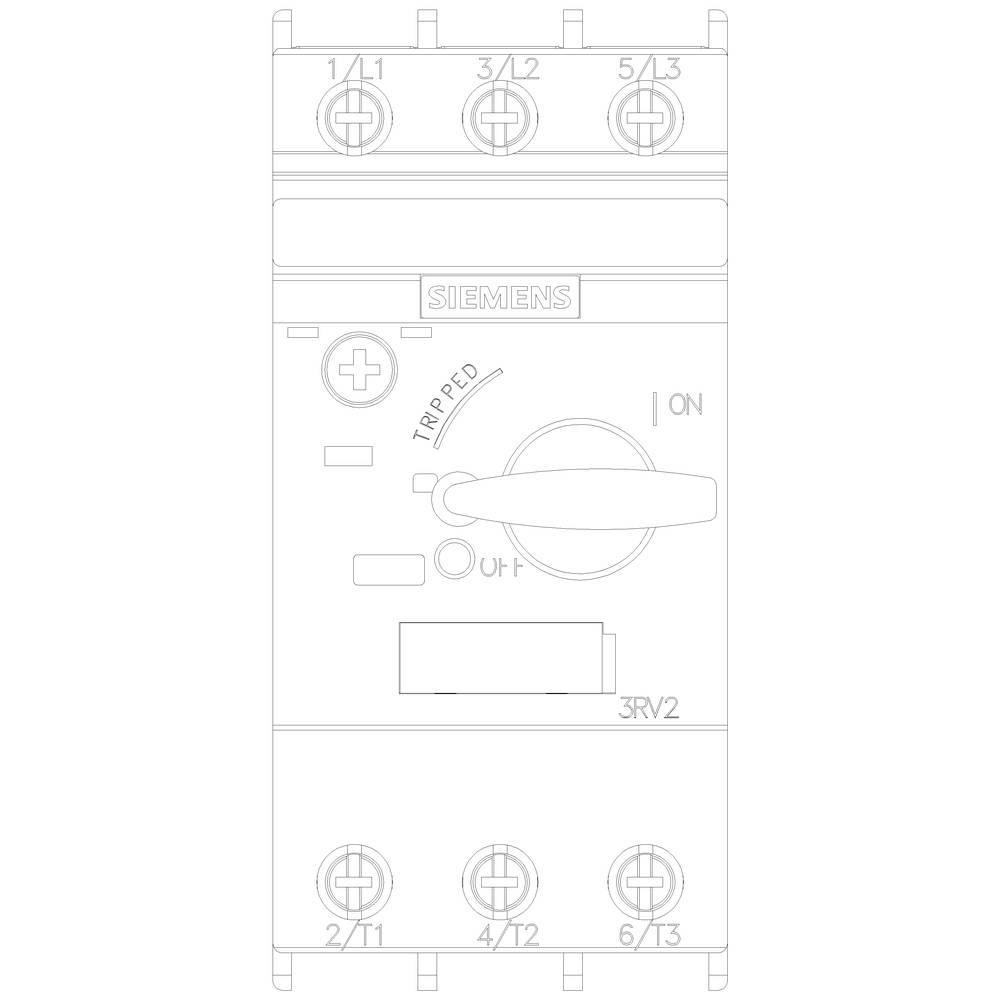

A schematic diagram of a Siemens switch with labels for connections and operational status.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

22 A

Connection

Screws

Type

3RV2021-4CA10

Type

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 22 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 10 mm²
Max. Conductor cross-section (fine): 10 mm²

Product type: Circuit breaker

Type: 3RV2021-4CA10

Type: S0

Amperage adjustment range (min.): 16 A

Amperage adjustment range (max.): 22 A

Adjustment range (amperage): 16 - 22 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens S0 type

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (L x W x H) 150 cm x 45 mm x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Length: 150 cm

: 45

: 97 mm

: 97 mm

: 11 kW

: FALSE

: 22 A

: FALSE

: 3

: 690-690 V

: 16-22 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 5.5 kW

: 55 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
