Siemens 3RV2901-1F Auxiliary switch 2 makers 1 pc(s)

Siemens 3RV2901-1F Auxiliary switch 2 makers 1 pc(s)-0

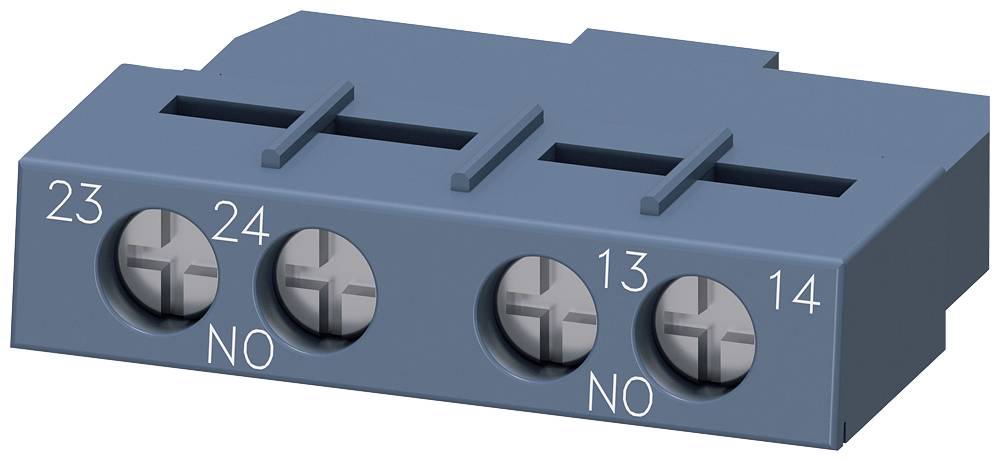

Grey terminal block with four screw terminals. Labelled with '23', '24', 'NO', '13', '14', 'NO'. Used for wiring electrical components.
Siemens 3RV2901-1F Auxiliary switch 2 makers 1 pc(s)-2
Siemens 3RV2901-1F Auxiliary switch 2 makers 1 pc(s)-3
An open electrical cabinet reveals wiring and electronics. Behind it, a machine is visible through a rain-streaked window.
'Circuit Breaker Mounting Accessories': Diagram shows mounting options for various accessory parts, numbered from 1 to 10, with description.
'Two identical rectangles side by side with dashed borders. Labelling: Left 13-14, right 23-24, each connected with dashed lines.'
Technical drawing of a component with dimensions: width 45 mm, height 11 mm, depth 38.9 mm. Shows four marked contacts, numbered from 21 to 24.
Diagram of a connection plate with four round socket slots, divided into two groups. Left side marked as 23, 24; right side marked as 13, 14.
1/9
Product type
Auxiliary switch
Connection
Screws
Type
3RV2901-1F
Type
S00
S0
S2
S3
Contact type
2 makers
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Design: Transverse on the front
  • Suitability for integration / circuit breaker: Yes
  • Type of connectable conductor cross-sections / for AWG wires / for auxiliary contacts: 2x (20 ... 14)
  • Type of connectable conductor cross-sections / for auxiliary contacts / single-wire: 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
  • Type of connectable conductor cross-sections / for auxiliary contacts / finely stranded / with wire-end processing: 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Product type

Auxiliary switch

Type

3RV2901-1F

Type

S00

S0

S2

S3

Contact type

2 makers

Auxiliary contact type

2 makers

Permanent current (max.)

0.5 A

Mounting type

Push-fit

Connection

Screws

Min. temperature

-20 °C

Max. temperature

+60 °C

Width

45 mm

Height

12 mm

Depth

17 mm

Dim

(W x H x D) 45 x 12 x 17 mm

Content

1 pc(s)

RoHS-compliant

Yes

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2260269 Siemens 3RV2901-1F Auxiliary switch 2 makers 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2260269 Siemens 3RV2901-1F Auxiliary switch 2 makers 1 pc(s)

Description

2 S cross-section auxiliary switch, screw connection for 3RV2 motor starter protectors, simple, efficient, always up-to-date - the SIRIUS modular system.
