Siemens 3RV2901-2C Auxiliary switch 2 breakers Compatible with (relay brand): Siemens 1 pc(s)

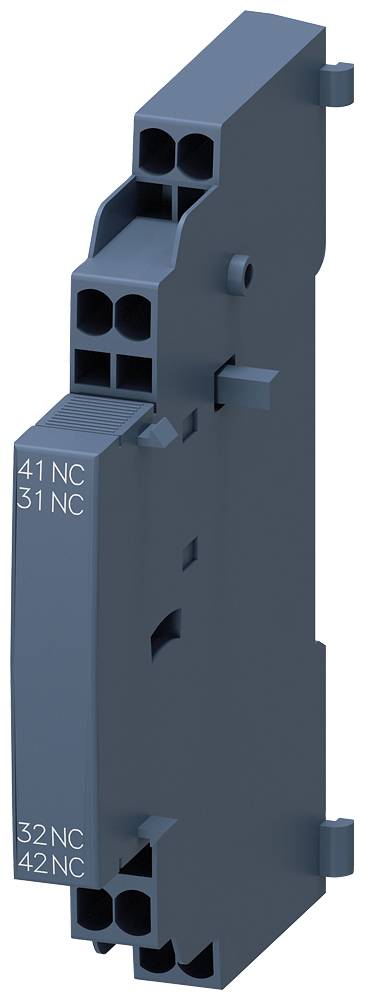

A blue, vertical electronic component with the labels '41 NC', '31 NC', '32 NC', '42 NC' on the front surface.
A control cabinet with open doors reveals technical components. In the background, machines can be seen through a rain-streaked window.
'Diagram shows mounting accessories for switch: Transverse auxiliary switch, voltage drop, signalling contact, separator, terminal block. Components are numbered.'

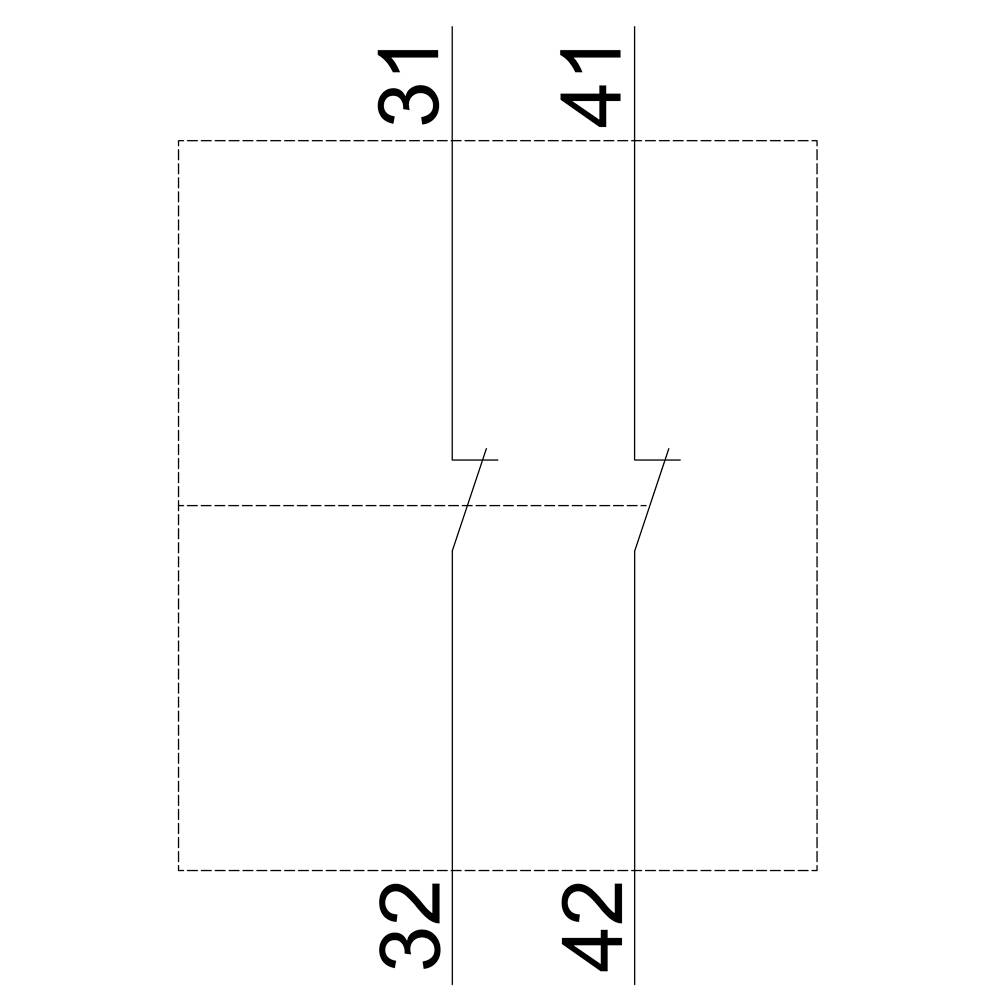

Schematic of a metal folded profile with two cutouts; cutouts are numbered '31', '32', '41' and '42'.

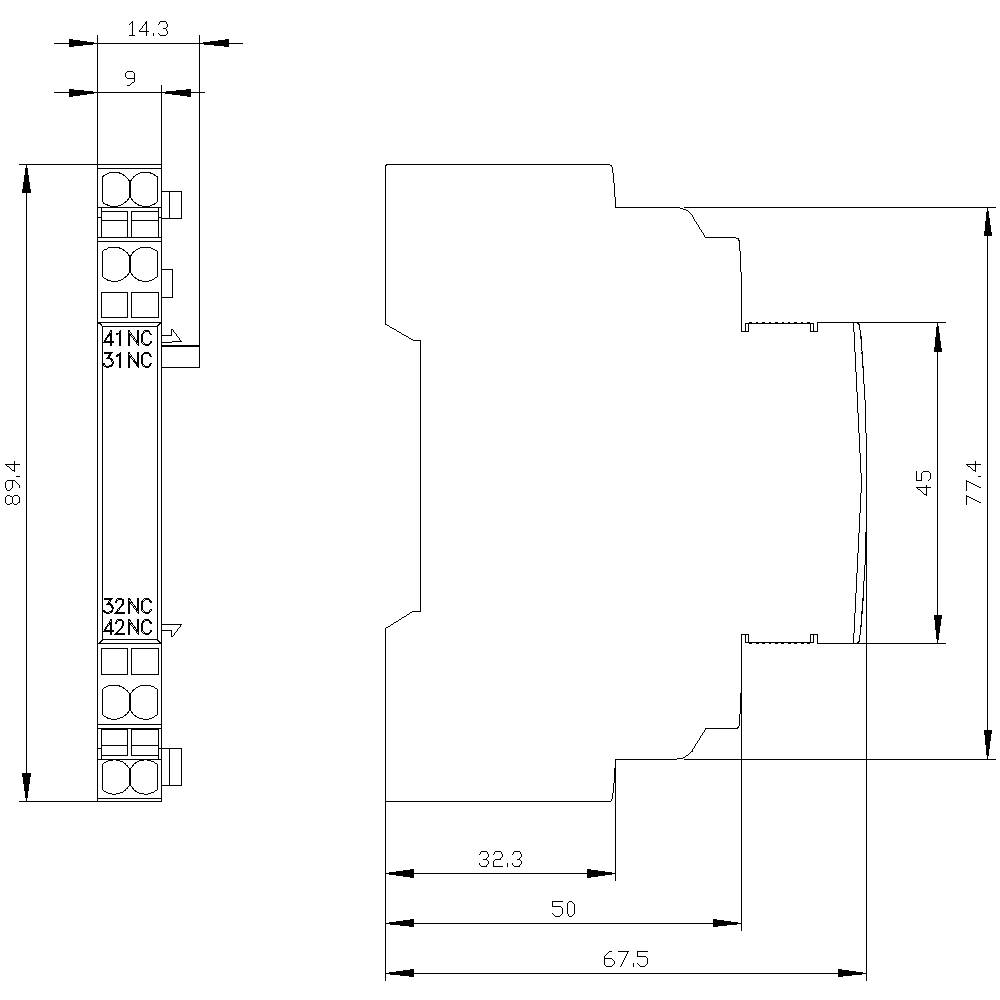

Technical drawing of an electrical switch with dimensions in millimetres: 14.3 x 89.4 x 67.5. Side and front view shown.

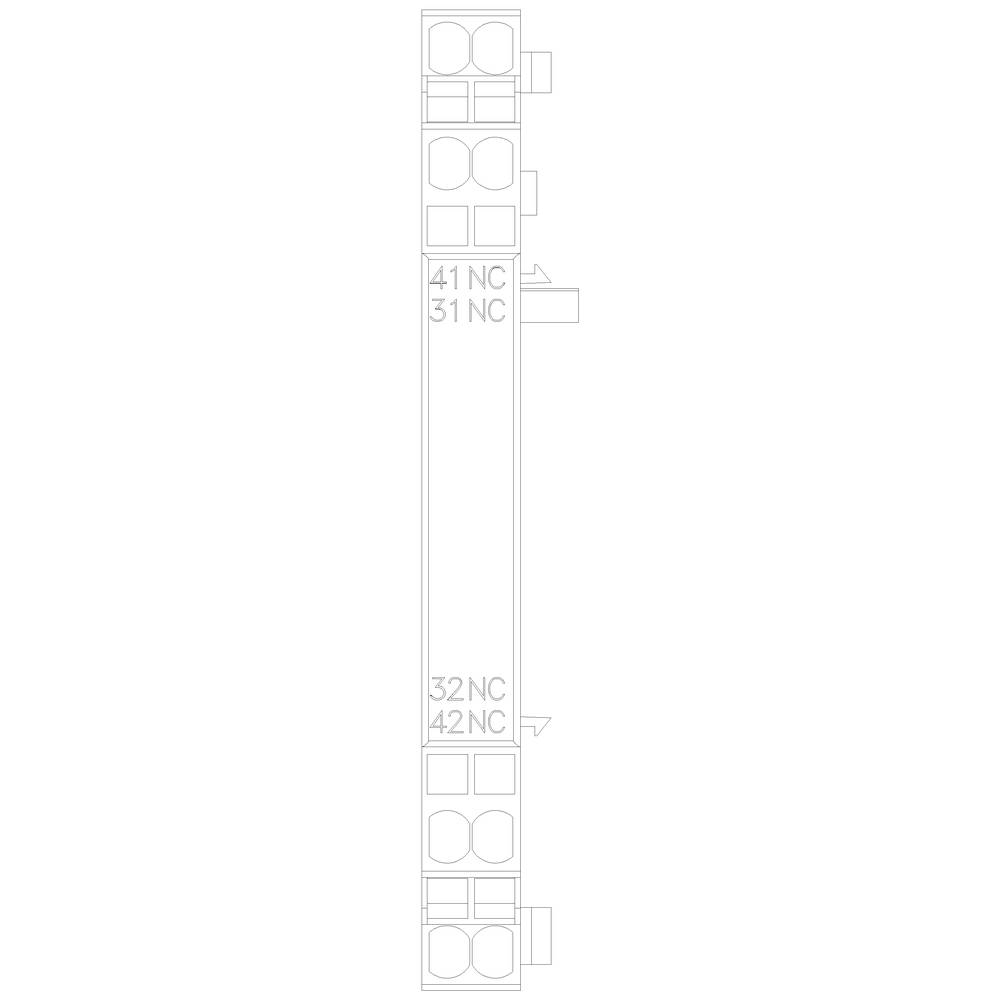

Circuit diagram of an electrical relay: Upper and lower terminals, with marked contacts '31 NC', '41 NC', '32 NC', '42 NC'.
1/6
Image similar
Product type
Auxiliary switch
Connection
Spring-loaded connector
Type
3RV2901-2C
Type
S00
S0
S2
S3
Contact type
2 breakers
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Design: SideSuitability for integration / circuit breaker: YesType of connectable wire cross-sections / with AWG lines / for auxiliary contacts: 2x (20 ... 14)Type of connectable conductor cross-sections / for auxiliary contacts / single-wired: 2x (0.5 ... 2.5 mm²Type of connectable conductor cross-sections / for auxiliary contacts / fine-wired / with wire-end processing: 2x (0.5 ... 1.5 mm²Type of connectable conductor cross-sections / for auxiliary contacts / fine-wired / without wire-end processing: 2x (0.5 ... 1.5 mm²Connectable wire cross-section / for auxiliary contacts / fine-wired / with wire-end processing / maximum: 2.5 mm²
Product type

Auxiliary switch

Type

3RV2901-2C

Type

S00

S0

S2

S3

Contact type

2 breakers

Auxiliary contact type

2 breakers

Compatible with

Siemens

Compatible with series

Siemens Sirius series

Mounting type

Push-fit

Connection

Spring-loaded connector

Min. temperature

-20 °C

Max. temperature

+60 °C

Width

9.5 mm

Height

90 mm

Depth

68 mm

Dim

(W x H x D) 9.5 x 90 x 68 mm

Content

1 pc(s)

RoHS-compliant

Yes

Other

Top mounting

None

Spring clamp connection

2

0

0

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2862317 Siemens 3RV2901-2C Auxiliary switch 2 breakers Compatible with (relay brand): Siemens 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2862317 Siemens 3RV2901-2C Auxiliary switch 2 breakers Compatible with (relay brand): Siemens 1 pc(s)

Description

Side-mounted auxiliary switch 2Ö Spring-loaded connector for 3RV2 motor starter protectors Simple, efficient, always up-to-date - the SIRIUS modular system.
