Siemens 3RV2902-1AP0 Trigger 1 pc(s) (W x H x D) 18.5 x 90 x 68 mm
EAN:
Part number:
Item no:
Product type
Trigger
Type
3RV2902-1AP0
Control voltage (max.)
240 V AC
Control voltage range
240 V AC (max)
Compatible with series
Siemens Sirius series
Datasheet (PDF)
Number
Total (€ 39.99 / piece)
€ 39.99
incl. VAT
Only 3 Piece(s) available
Technical specifications
- Product type
Trigger
- Type
3RV2902-1AP0
- Control voltage (max.)
240 V AC
- Control voltage range
240 V AC (max)
- Compatible with series
Siemens Sirius series
- Compatible with
Siemens
- Mounting type
Snap-in
- Min. temperature
-20 °C
- Max. temperature
+60 °C
IP20

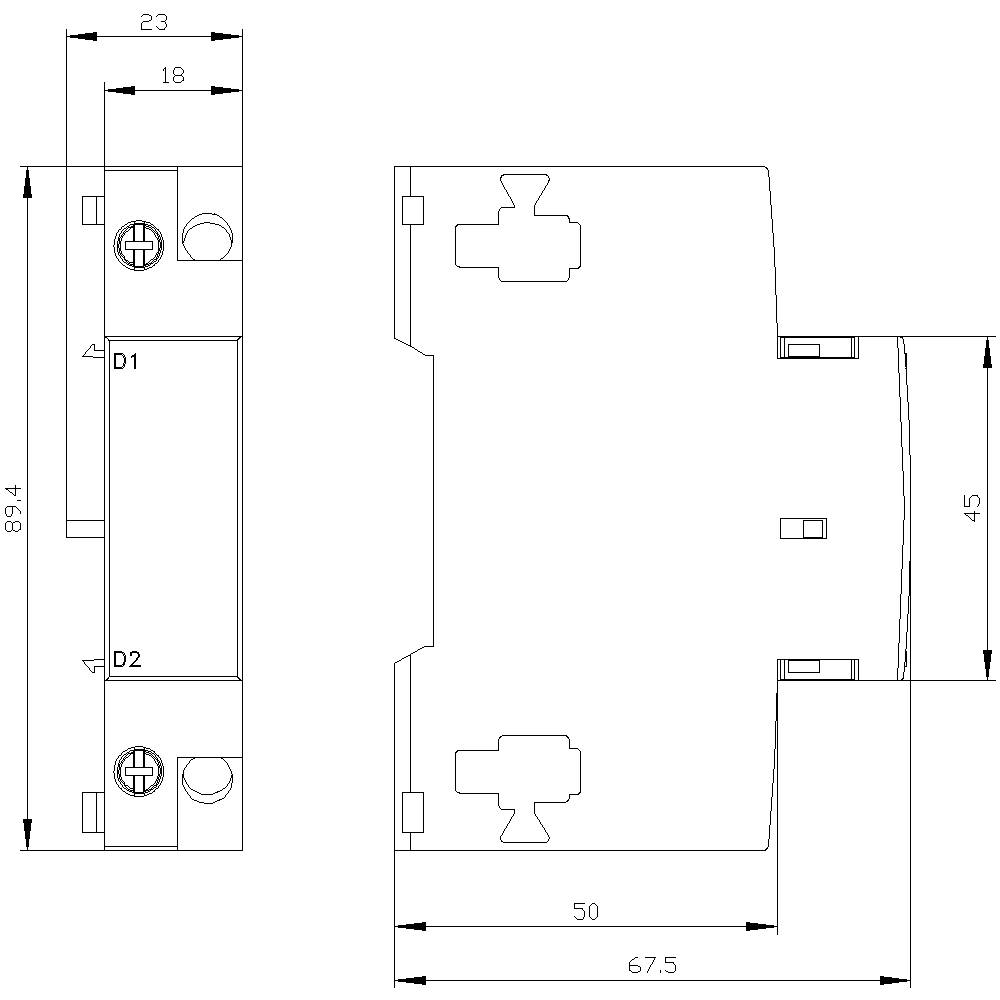

- Depth
68 mm
- Width
18.5 mm
- Height
90 mm
- Dim
(W x H x D) 18.5 x 90 x 68 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
FALSE
FALSE
FALSE
Screw connection
230-230 V
240-240 V
FALSE
AC
0
0
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1745998 Siemens 3RV2902-1AP0 Trigger 1 pc(s) (W x H x D) 18.5 x 90 x 68 mm
User & Safety Instructions
User & Safety Instructions 1745998 Siemens 3RV2902-1AP0 Trigger 1 pc(s) (W x H x D) 18.5 x 90 x 68 mm
Description
power contactor, AC-3 80 A, 37 kW / 400 V 1 NO + 1 NC, 24 V AC 50/60 Hz 3-pole, 3 NO, Size S3 Spring-type terminal
