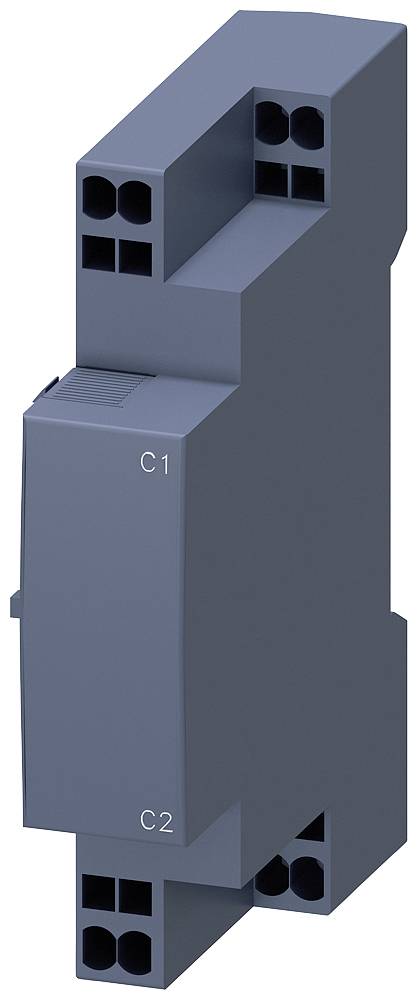

Siemens 3RV2902-2DB0 Trigger 1 pc(s) (W x H x D) 18.5 x 90 x 68 mm
EAN:
Part number:
Item no:
Product type
Trigger
Connection
Spring-loaded connector
Type
3RV2902-2DB0
Control voltage (min.)
20 V AC
Control voltage (max.)
70 V AC
Datasheet (PDF)
Number
Total (€ 33.99 / piece)
€ 33.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Trigger
- Type
3RV2902-2DB0
- Control voltage (min.)
20 V AC
- Control voltage (max.)
70 V AC
- Control voltage range
20 - 70 V AC
- Compatible with series
Siemens Sirius series
- Compatible with
Siemens
- Mounting type
Snap-in
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Connection
Spring-loaded connector
IP20
- Depth
68 mm
- Width
18.5 mm
- Height
90 mm
- Dim

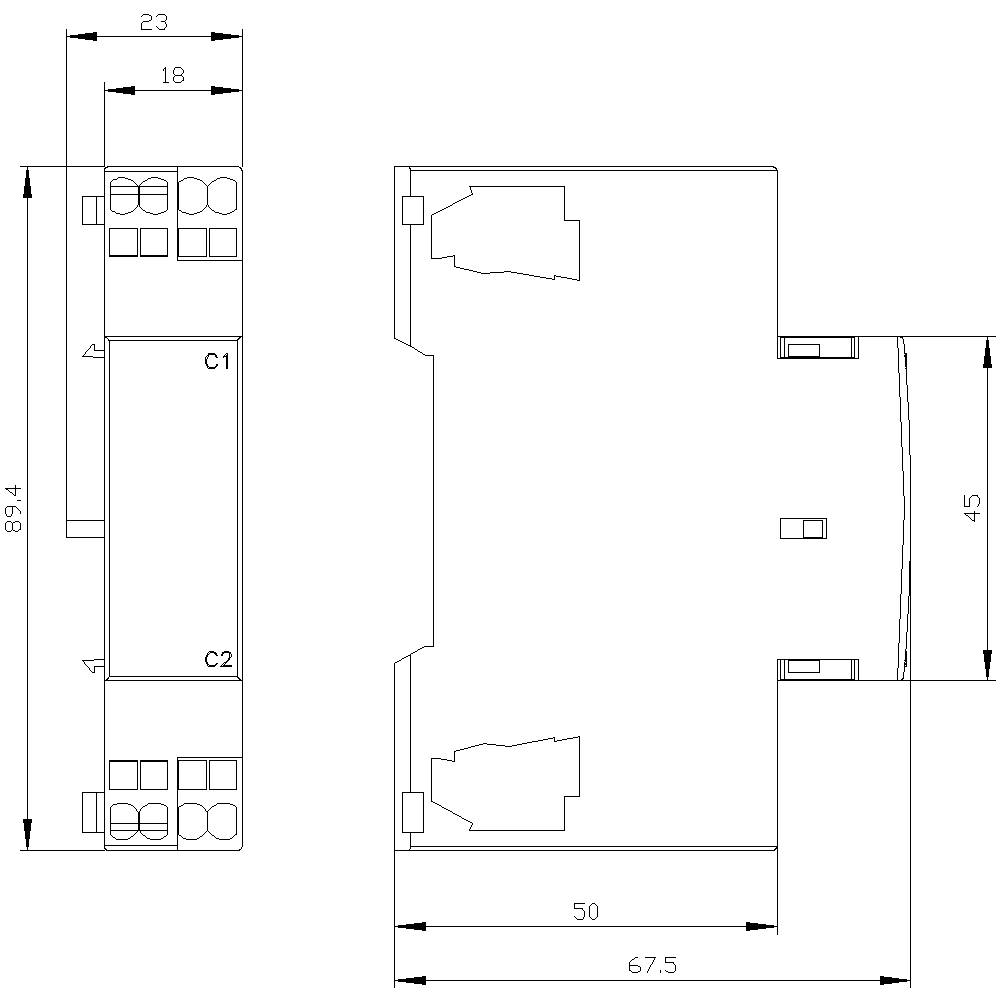

(W x H x D) 18.5 x 90 x 68 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
FALSE
FALSE
Spring clamp connection
20-24 V
20-24 V
FALSE
FALSE
AC
0
0
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1704563 Siemens 3RV2902-2DB0 Trigger 1 pc(s) (W x H x D) 18.5 x 90 x 68 mm
Datasheet 1704563 Siemens 3RV2902-2DB0 Trigger 1 pc(s) (W x H x D) 18.5 x 90 x 68 mm
User & Safety Instructions
User & Safety Instructions 1704563 Siemens 3RV2902-2DB0 Trigger 1 pc(s) (W x H x D) 18.5 x 90 x 68 mm
Description
Contactor, 4 NO, AC-1: 140 A 200 V AC/50 Hz/200-220 V/60 Hz 4-pole, 4 NO, Size S3 Screw terminal 1 NO+1 NC integrated
