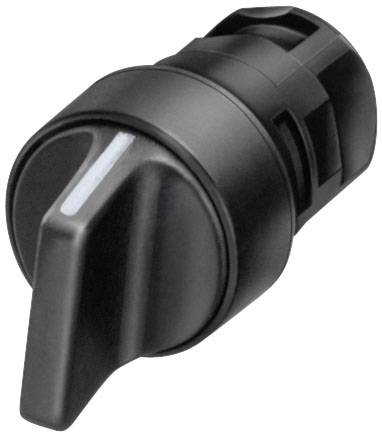

Image similar
Siemens 3SB20002AE01 3SB2000-2AE01 Knob-head switch Front ring (PVC) Toggle Black, Green 1 x 62 ° Turn 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Front panel mounting
- Number of command points: 1
- Number of switch positions: 2
- Actuator type: Knob
- Mounting width 19 mm
- Mounting height 17 mm
- Material / actuator: Plastic
- Product component / front ring: Yes
- Tightening torque / screws in holder / maximum: 0.4 Nm
- Front ring design: Standard
- Mounting depth 50 mm
- Form / mounting hole: Round
- Material / of the holder: Plastic
- Switching frequency / maximum [1/h]: 1000
- Vibration resistance: 20 ... 200 Hz: 5g
- Product type
Knob-head switch
- Switch/button features
Front ring (PVC)
- Operation type
Toggle
- Factory colour
Black
Green
- Case colour
Green
- Button Ø
19 mm
- Print motif
O I
- Unlocking mechanism
Turn
- Front panel cut-out
16 mm
- Functions
latch
- Durability
300000
- Recess diameter
16 mm
- Type
Single unit round
IP65
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Switching angle
1 x 62 °
- Switch position
1 x Off/On
- Width
19 mm
- Height
17 mm
- (Ø)
16 mm
- Content
1 pc(s)
- Dim
(Ø x H) 16 mm x 17 mm
- RoHS-compliant
Yes
- Depth
50 mm
- Type
3SB2000-2AE01
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2863816 Siemens 3SB20002AE01 3SB2000-2AE01 Knob-head switch Front ring (PVC) Toggle Black, Green 1 x 62 ° Turn 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2863816 Siemens 3SB20002AE01 3SB2000-2AE01 Knob-head switch Front ring (PVC) Toggle Black, Green 1 x 62 ° Turn 1 pc(s)
Description
Toggle switch, 16 mm, round, plastic, green, 2 switch positions O-I, latching, 62 degree toggle switch SIRIUS 3SB2 for switching and controlling electrical loads.
The 3SB2 push buttons and indicator lights are modular, tried and tested and industry compatible. Their small design makes them particularly suitable for small control surfaces. They are highly functional, extremely robust and meet the standards IEC/EN 60947-5-1 and 60947-5-5. They can be installed without special tools and in high packing density.
Available designs: Several colors, 2-3 switch positions, latching/momentary action.
Note: Please order separate device, holder and circuit elements.
3SB2 - space saving, practice proven and industry compatible!
This text is machine translated.
The 3SB2 push buttons and indicator lights are modular, tried and tested and industry compatible. Their small design makes them particularly suitable for small control surfaces. They are highly functional, extremely robust and meet the standards IEC/EN 60947-5-1 and 60947-5-5. They can be installed without special tools and in high packing density.
Available designs: Several colors, 2-3 switch positions, latching/momentary action.
Note: Please order separate device, holder and circuit elements.
3SB2 - space saving, practice proven and industry compatible!
