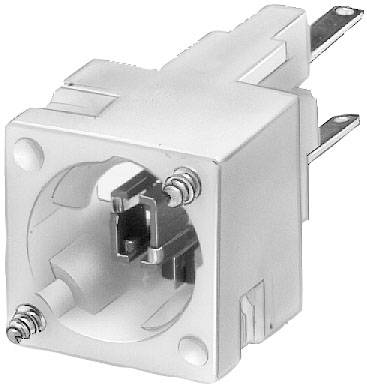

Siemens 3SB2304-2H Light bulb holder + bulb holder Clear Contact 60 V DC/AC 1 pc(s) Piece
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type of bulb: Bulb
- Operating current / at AC-15 / at 230 V / at 50 Hz: 4 A.
- Operating current / at DC-13 / at 24 V: 3 A.
- Suitability for integration / pressure selection button: Yes
- Product component / bulbs: Yes
- Supply voltage of the bulb: 24 V DC/AC
- Number of lamp holders: 1
- Vibration resistance: 20 ... 200 Hz: 5G
- Packaging type
Piece
- Product type
Light bulb holder
- Switch/button features
+ bulb holder
- Connection
CEE 7/16 CEE plug
- Type
Socket W2 x 4.6d
- Functions
Contact
- Colour
Clear
- Switching voltage
60 V DC/AC
IP00
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
19 mm
- Height
19 mm
- Mounting type
Front panel fixed
- Content
1 pc(s)
- Dim
(W x H x D) 19 x 19 x 46 mm
- RoHS-compliant
Yes
- Depth
46 mm
- Type
3SB2304-2H
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483161 Siemens 3SB2304-2H Light bulb holder + bulb holder Clear Contact 60 V DC/AC 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2483161 Siemens 3SB2304-2H Light bulb holder + bulb holder Clear Contact 60 V DC/AC 1 pc(s) Piece
Description
Lamp holder, wedge base W2 X 4.6 d, with 24 V bulb, with holder SIRIUS 3SB2 lamp holder as an accessory for 3SB2 command and signaling devices.
The 3SB2 push buttons and indicator lights are modular, proven in practice and suitable for industrial use. Due to their small design, they are particularly suitable for small operating surfaces. They are highly functional, extremely robust and comply with IEC/EN 60947-5-1 and 60947-5-5. They can be installed without special tools and in high packing density.
Available versions: Different voltage versions with flat or solder pin connection.
Extensive optional accessories (e.g. protective cap, labeling plates or handling) available.
3SB2 - space-saving, proven in practice and suitable for industry!
