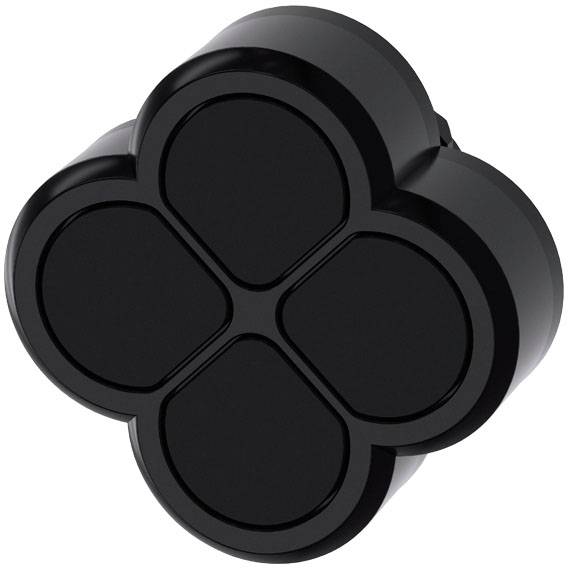

Image similar
Siemens 3SU10003FB110AU0 3SU1000-3FB11-0AU0 Four-button switch Front ring (PVC) 4-button Black 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Actuator design: Without mechanical interlock
- Mounting width 57.6 mm
- Mounting height 18 mm
- Material / actuator: Plastic
- Product component / front ring: Yes
- Front ring design: Standard
- Installation depth: 25.9 mm
- Form / mounting hole: Round
- Switching frequency / maximum [1/h]: 3600
- Vibration resistance: 10 ... 500 Hz: 5g
- Equipment protection class II.
- Positive tolerance of the mounting diameter: 0.4 mm
- Product expansion / optional / contact module: Yes
- Product equipment / integrated / zero position: Yes
- Product function / Locking in zero position: No.
- Product type
Four-button switch
- Switch/button features
Front ring (PVC)
- Operation type
4-button
- Factory colour
Black
- Case colour
Black
- Button Ø
57.6 mm
- Shape
Clover leaf
- Front panel cut-out
22 mm mm
- Functions
momentary
- Durability
200000
- Recess diameter
22.3 mm
- Type
Actuating/signaling element
IP65
IP66
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Switch position
1 x Off/(On)
- Width
57.6 mm
- Height
57.6 mm
- (Ø)
22 mm
- Content
1 pc(s)

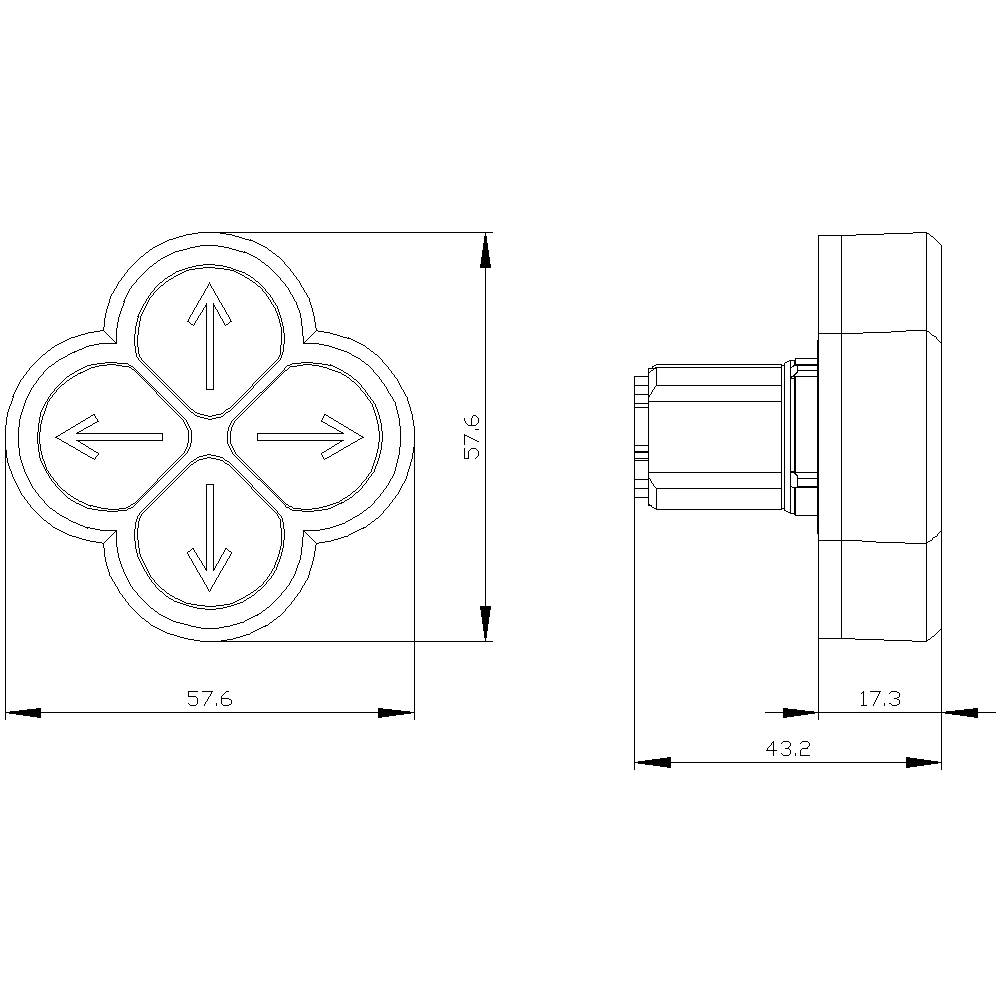

- Dim
(Ø x H) 22 mm x 57.6 mm
- RoHS-compliant
Yes
- Depth
25.9 mm
- Type
3SU1000-3FB11-0AU0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2863746 Siemens 3SU10003FB110AU0 3SU1000-3FB11-0AU0 Four-button switch Front ring (PVC) 4-button Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2863746 Siemens 3SU10003FB110AU0 3SU1000-3FB11-0AU0 Four-button switch Front ring (PVC) 4-button Black 1 pc(s)
Description

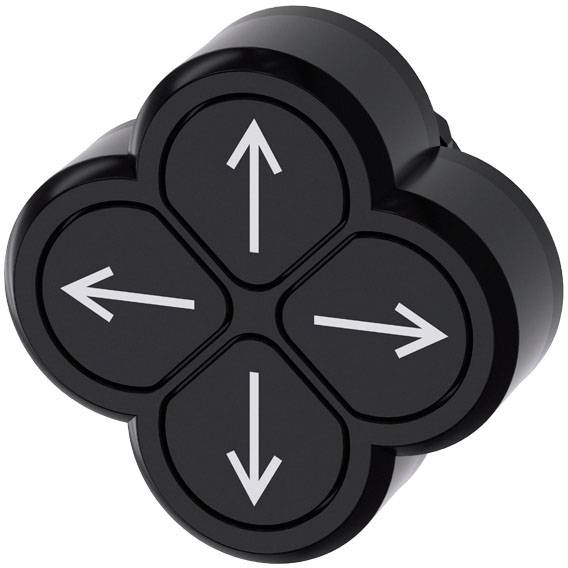

Four-way pushbutton, 22 mm, round, plastic, black, Push buttons, flat, symbol: arrow left, right, top and bottom Four-way push button SIRIUS ACT for simple navigation tasks.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.
The innovative snap concept simplifies the mounting so that only one hand and no special tool are needed. As installation holes, slot-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even high-pressure cleaning is possible. Neither dust, oil nor aggressive alkalis can disturb the reliable operation.
In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring work, minimizes the sources of errors and gives you more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available designs: 2/4 switch positions, latching/momentary action.
Note: Individual devices, holder and modules please order separately.
SIRIUS ACT - Performance in ACTION for commands and messages. Simply mounted, simply strong, simply perfect.
This text is machine translated.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.
The innovative snap concept simplifies the mounting so that only one hand and no special tool are needed. As installation holes, slot-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even high-pressure cleaning is possible. Neither dust, oil nor aggressive alkalis can disturb the reliable operation.
In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring work, minimizes the sources of errors and gives you more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available designs: 2/4 switch positions, latching/momentary action.
Note: Individual devices, holder and modules please order separately.
SIRIUS ACT - Performance in ACTION for commands and messages. Simply mounted, simply strong, simply perfect.
