Siemens 3SU1400-2CK10-1AA0 LED module for floor mounting 240 V DC/AC 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product component / Diode: Yes
- Vibration resistance: 10 ... 500 Hz 5G
- Tightening torque / for screw connection / minimum: 0.8 Nm
- Tightening torque / for screw terminals / maximum: 0.9 Nm
- Type of connectable conductor cross-sections / for AWG wires: 2x (18 ... 14)
- Type of connectable conductor cross-sections / single-wired / with wire-end processing: 2x (0.5 ... 0.75 mm²)
- Type of connectable conductor cross-sections / single-wired / without wire-end processing: 2x (1.0 ... 1.5 mm²)
- Type of connectable conductor cross-sections / fine-wired / with wire-end processing: 2x (0.5 ... 1.5 mm²)
- Type of connectable conductor cross-sections / fine-wired / without wire-end processing: 2x (1.0 ... 1.5 mm²)
- Maximum inrush current 3 A.
- Insulation voltage 320 V.
- Pollution level 3
- Product type
LED module
- Switch/button features
for floor mounting
- Connection
Screws
- Switching voltage
240 V DC/AC
IP20
IP40
- Dielectric strength
4 kV
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Width
9.8 mm
- Height
36 mm
- Electrical lifespan
100000
- Mounting type
Floor fixed
- Content
1 pc(s)

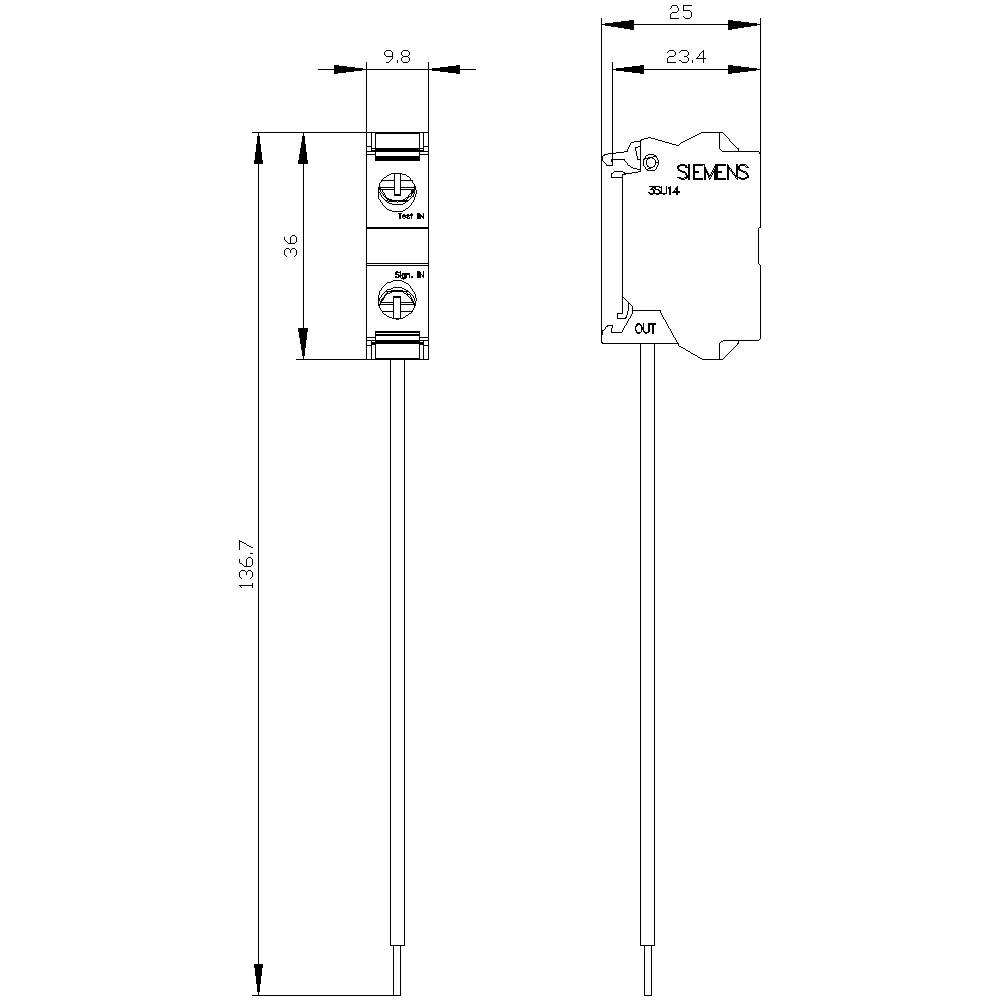

- Dim
(W x H x D) 9.8 x 36 x 25 mm
- RoHS-compliant
Yes
- Depth
25 mm
- Type
3SU1400-2CK10-1AA0
- Light bulb included
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2262239 Siemens 3SU1400-2CK10-1AA0 LED module for floor mounting 240 V DC/AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2262239 Siemens 3SU1400-2CK10-1AA0 LED module for floor mounting 240 V DC/AC 1 pc(s)
Description
LED test module operating voltage AC/DC 6-240V, screw connection, for floor mounting, for LED modules (6-24V AC/DC, 24V AC/DC, 24-240V AC/DC) SIRIUS ACT LED test module for testing the functionality of up to 30 SIRIUS ACT LED modules.
Under the SIRIUS ACT brand name Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in four modern design series made of robust real metal and high-quality plastic.
The innovative snap-on concept simplifies the assembly so far that only one hand and no special tools are required for this. As mounting holes, nuts-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and suitable for outdoor use. Even the cleaning with high pressure jet is possible. Neither dust, oils nor aggressive alkalis can disturb the reliable operation.
In addition to standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Thus you reduce your wiring effort, minimize sources of error and gain more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, housings and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available versions: For floor mounting and for front panel mounting.
SIRIUS ACT - Performance in action when commands and signaling. Simply mounted, simply strong, simply perfect.
This text is machine translated.
Under the SIRIUS ACT brand name Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in four modern design series made of robust real metal and high-quality plastic.
The innovative snap-on concept simplifies the assembly so far that only one hand and no special tools are required for this. As mounting holes, nuts-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and suitable for outdoor use. Even the cleaning with high pressure jet is possible. Neither dust, oils nor aggressive alkalis can disturb the reliable operation.
In addition to standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Thus you reduce your wiring effort, minimize sources of error and gain more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, housings and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available versions: For floor mounting and for front panel mounting.
SIRIUS ACT - Performance in action when commands and signaling. Simply mounted, simply strong, simply perfect.
