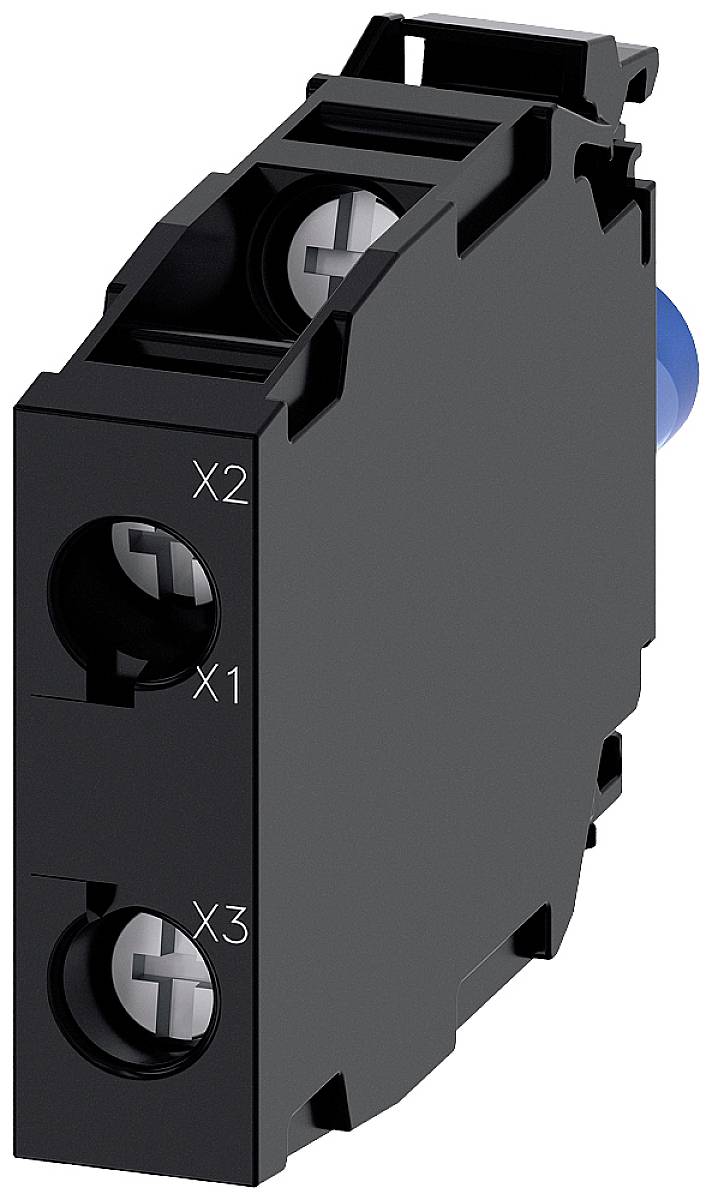

Siemens 3SU1401-1BF24-1AA0 LED module illuminable Red , Yellow, Green 230 V DC/AC 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type of connectable wire cross-sections / for AWG lines: 2x (18 ... 14)
- Type of connectable wire cross-sections / single wire / with wire-end processing: 2x (0.5 ... 0.75 mm²
- Type of connectable wire cross-sections / single wire / without wire-end processing: 2x (1.0 ... 1.5 mm²
- Type of connectable wire cross-sections / fine wire / with wire-end processing: 2x (0.5 ... 1.5 mm²
- Type of connectable wire cross-sections / fine wire / without wire-end processing: 2x (1.0 ... 1.5 mm²
- Tightening torque at screw connection 0.8 - 0.9 Nm
- Type of light bulb: LED
- Switch-on current max. 2 A.
- Insulation voltage 320 V
- Diode: Yes
- Product type
LED module
- Switch/button features
illuminable
- Connection
Screws
- Colour
Red
Yellow
Green
- Switching voltage
230 V DC/AC
- Switching current (max.)
20 mA
IP20
IP40
- Dielectric strength
4 kV
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Width
9.8 mm
- Height
36 mm
- Electrical lifespan
100000
- Mounting type
Front panel fixed
- Content
1 pc(s)

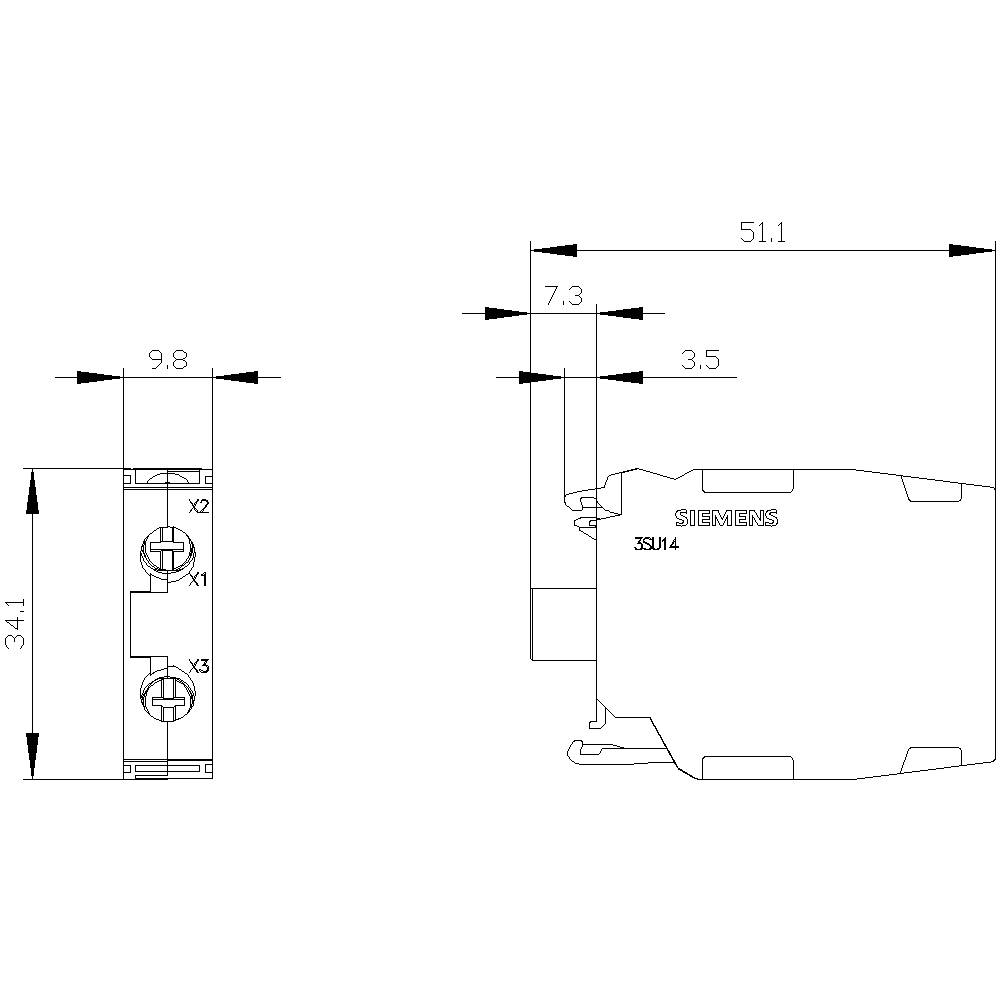

- Dim
(W x H x D) 9.8 x 36 x 49.7 mm
- RoHS-compliant
Yes
- Depth
49.7 mm
- Type
3SU1401-1BF24-1AA0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2863939 Siemens 3SU1401-1BF24-1AA0 LED module illuminable Red , Yellow, Green 230 V DC/AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2863939 Siemens 3SU1401-1BF24-1AA0 LED module illuminable Red , Yellow, Green 230 V DC/AC 1 pc(s)
Description
Traffic light LED module with integrated LED AC 230V, red-yellow-green, screw connection, for front panel mounting LED module SIRIUS ACT for the illumination of the command and messaging device SIRIUS ACT with brilliant Leuchtkraft thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.
The innovative snap concept simplifies the mounting so that only one hand and no special tool are needed. As installation holes, slot-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even high-pressure cleaning is possible. Neither dust, oil nor aggressive alkalis can disturb the reliable operation.
In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring work, minimizes the sources of errors and gives you more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available designs: Several colors, different voltage variants, different connection and mounting types.
SIRIUS ACT - Performance in ACTION for commands and messages. Simply mounted, simply strong, simply perfect.
This text is machine translated.
