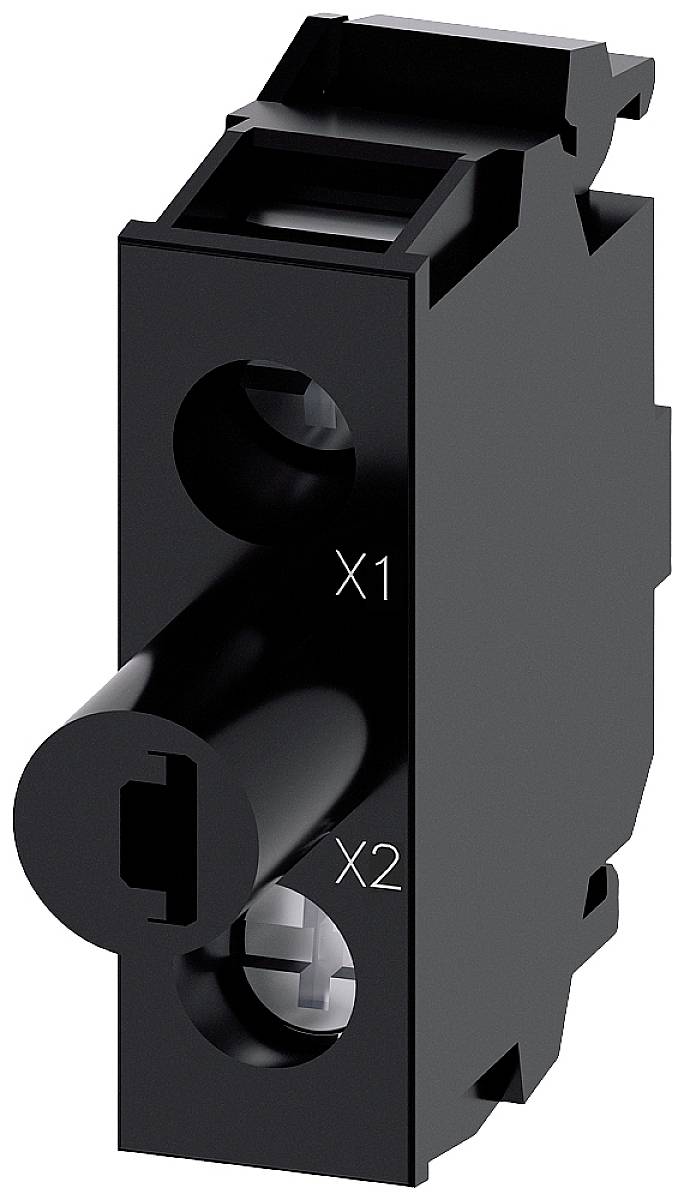

Siemens 3SU1401-2BB40-1AA2 LED module for floor mounting Green 24 V DC/AC 1 pc(s) Piece
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type of light bulb: LED
- Product component / diode: Yes
- Product component / bulb: Yes
- Vibration resistance: 10 ... 500 Hz: 5g
- Tightening torque / with screw connection / minimum: 0.8 Nm
- Tightening torque / for screw connection / maximum: 0.9 Nm
- Type of connectable wire cross-sections / for AWG lines: 2x (18 ... 14)
- Type of connectable wire cross-sections / single wire / with wire-end processing: 2x (0.5 ... 0.75 mm²
- Type of connectable wire cross-sections / single wire / without wire-end processing: 2x (1.0 ... 1.5 mm²
- Type of connectable wire cross-sections / fine wire / with wire-end processing: 2x (0.5 ... 1.5 mm²
- Type of connectable wire cross-sections / fine wire / without wire-end processing: 2x (1.0 ... 1.5 mm²
- Proof of suitability / for gas explosion protection for zone 1/2: Yes
- Maximum switch-on current 2 A.
- Device protection level (EPL) / according to ATEX: GB
- Device protection level (EPL) / according to IECEx: GB
- Insulation voltage 320 V
- Minimum light intensity: 450 mcd
- Maximum light intensity 1120 mcd
- Maximum input voltage (UI) at AC 28.8 V
- Maximum input voltage (UI) at DC 28.8 V
- Pollution level 3
- Packaging type
Piece
- Product type
LED module
- Switch/button features
for floor mounting
- Connection
Screws
- Type
With integrated LED
- Colour
Green
- Switching voltage
24 V DC/AC
- Switching current (max.)
20 mA
IP20
IP30
- Dielectric strength
4 kV
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Width
9.8 mm
- Height
33.2 mm
- Electrical lifespan
100000
- Mounting type
Floor fixed
- Content
1 pc(s)
- Dim

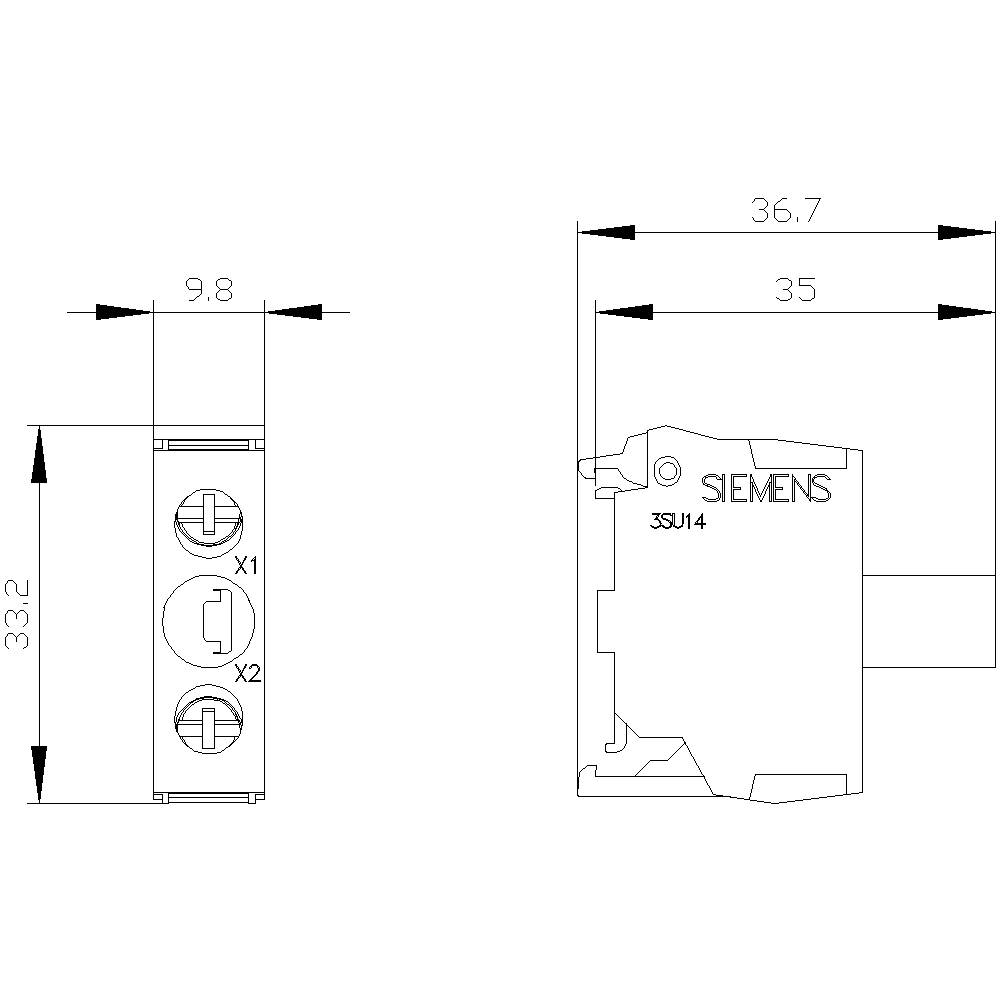

(W x H x D) 9.8 x 33.2 x 29.4 mm
- RoHS-compliant
Yes
- Depth
29.4 mm
- Type
3SU1401-2BB40-1AA2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2863957 Siemens 3SU1401-2BB40-1AA2 LED module for floor mounting Green 24 V DC/AC 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2863957 Siemens 3SU1401-2BB40-1AA2 LED module for floor mounting Green 24 V DC/AC 1 pc(s) Piece
Description
LED module with integrated LED AC/DC 24V, green, screw connection, for floor mounting, ATEX zone 1-2: Intrinsic safety LED module SIRIUS ACT for lighting the SIRIUS ACT command and signal devices with brilliant Leuchtkraft thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.
The innovative snap concept simplifies the mounting so that only one hand and no special tool are needed. As installation holes, slot-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even high-pressure cleaning is possible. Neither dust, oil nor aggressive alkalis can disturb the reliable operation.
In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring work, minimizes the sources of errors and gives you more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available designs: Several colors, different voltage variants, different connection and mounting types.
SIRIUS ACT - Performance in ACTION for commands and messages. Simply mounted, simply strong, simply perfect.
