Siemens 3SU18010BC004AB1 3SU1801-0BC00-4AB1 Enclosure for floor mounting, Front ring (steel), + label 1-button Red, Silv
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of command points: 1
- Actuator type: Pushbutton
- Design of the contact / the auxiliary contacts: Silver alloy
- Mounting type of casing: Horizontal
- Equipment protection class II.
- OPERATING VOLTAGE 5 500 V DC/AC
- Actuator material: Metal
- Case material: Plastic
- Material of holder: Metal
- Product type
Enclosure
- Switch/button features
for floor mounting
Front ring (steel)
+ label
- Operation type
1-button
- Colour
Red
- Factory colour
Red
Silver
- Case colour
Grey
- Button Ø
30 mm
- Connection
Open cable end
Spring-loaded connector
- Unlocking mechanism
Pull
- Shape
Mounting hole: Round; front of housing: Square; actuator: Round
- Functions
momentary/latch
- Contact type
2 breakers
- Recess diameter
22 mm
- Type
With recess for label
IP66
IP67
IP69/IP69K
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Width
85 mm
- Height
85 mm
- Content
1 pc(s)
- Dim

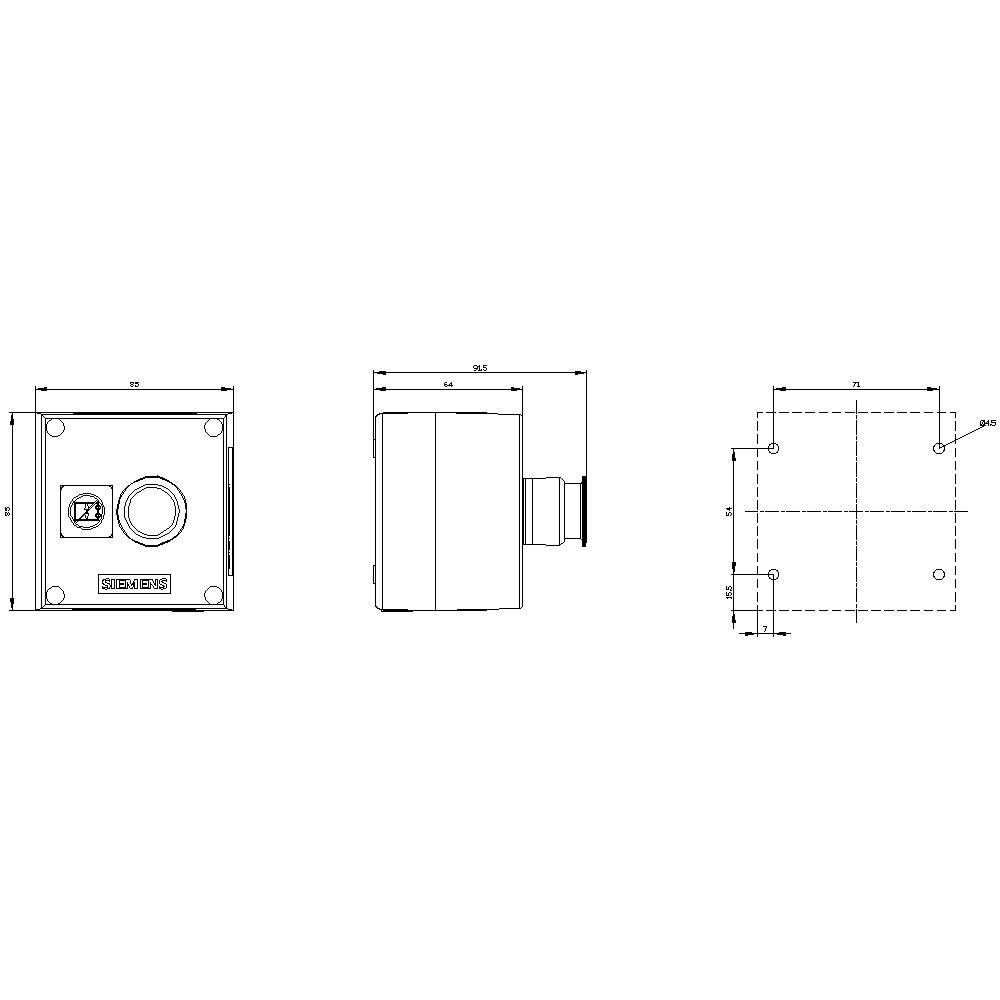

(W x H x D) 85 x 85 x 75 mm
- RoHS-compliant
Yes
- Depth
75 mm
- Type
3SU1801-0BC00-4AB1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2864011 Siemens 3SU18010BC004AB1 3SU1801-0BC00-4AB1 Enclosure for floor mounting, Front ring (steel), + label 1-button Red, Silv
User & Safety Instructions
User & Safety Instructions 2864011 Siemens 3SU18010BC004AB1 3SU1801-0BC00-4AB1 Enclosure for floor mounting, Front ring (steel), + label 1-button Red, Silv
Description
Casing for control devices 22 mm, round, housing material plastic, housing top part gray, 1 command point, A = push-pull switch, red, metal, 30 mm, 1Ö, Spring-loaded connection, ground mounting, support point terminal, customer-specific plate, 1xM20 top and bottom each, shield, SIRIUS ACT housing for the assembly of 22.5 mm command and signaling devices with spatially separate arrangement of control units and control cabinets.

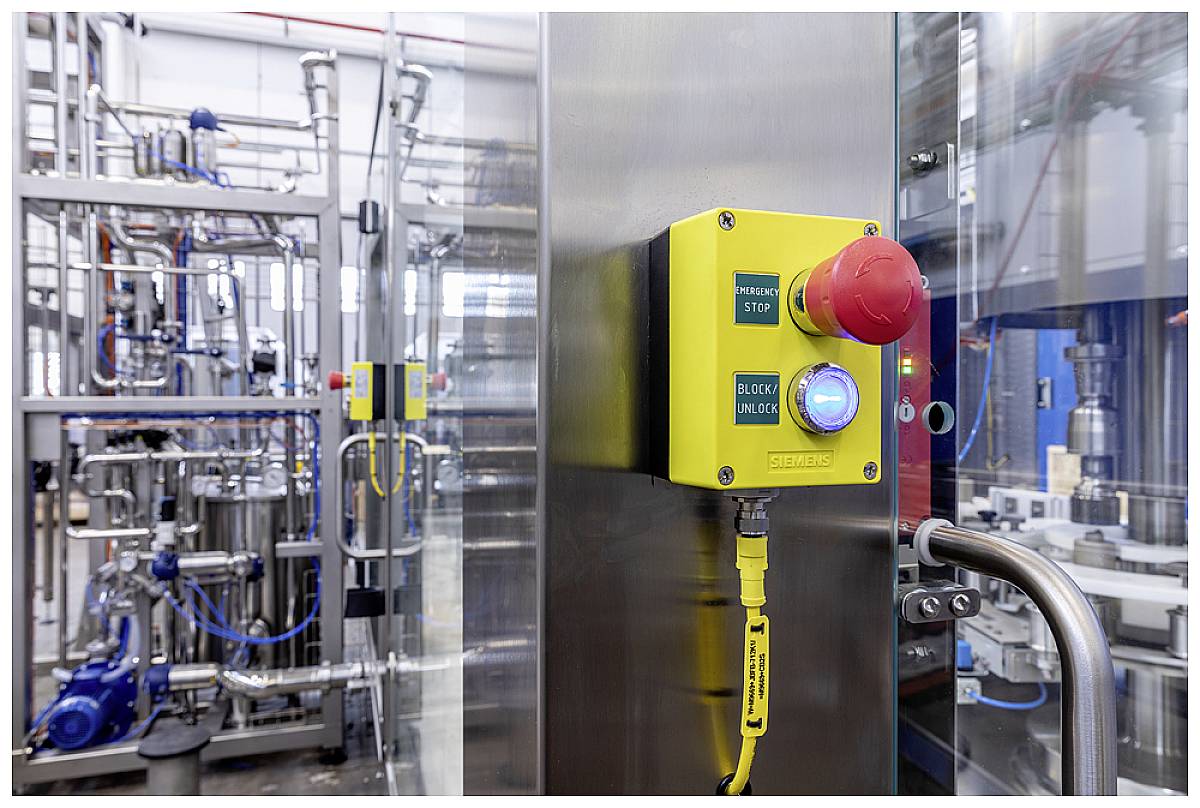

Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.
The innovative snap concept simplifies the mounting so that only one hand and no special tool are needed. As installation holes, slot-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even high-pressure cleaning is possible. Neither dust, oil nor aggressive alkalis can disturb the reliable operation.
In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring work, minimizes the sources of errors and gives you more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available designs: Yellow/gray, plastic/metal, 1-6 command points, empty housing/pre-mounting, optionally with AS-interface connection.
SIRIUS ACT - Performance in ACTION for commands and messages. Simply mounted, simply strong, simply perfect.
This text is machine translated.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.
The innovative snap concept simplifies the mounting so that only one hand and no special tool are needed. As installation holes, slot-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even high-pressure cleaning is possible. Neither dust, oil nor aggressive alkalis can disturb the reliable operation.
In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring work, minimizes the sources of errors and gives you more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available designs: Yellow/gray, plastic/metal, 1-6 command points, empty housing/pre-mounting, optionally with AS-interface connection.
SIRIUS ACT - Performance in ACTION for commands and messages. Simply mounted, simply strong, simply perfect.
