Siemens 3SU18010BE004AB1 3SU1801-0BE00-4AB1 Enclosure for floor mounting, Front ring (steel), + label Toggle Black, Silv
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of command points: 1
- Design of the contact / the auxiliary contacts: Silver alloy
- Case mounting method: Vertical
- Equipment protection class II.
- OPERATING VOLTAGE 5 500 V DC/AC
- Material of actuator: Plastic
- Case material: Plastic
- Material of holder: Plastic
- Product type
Enclosure
- Switch/button features
for floor mounting
Front ring (steel)
+ label
- Operation type
Toggle
- Factory colour
Black
Silver
- Case colour
Grey
- Print motif
Blank
- Connection
Open cable end
Spring-loaded connector
- Shape
Mounting hole: Round; front of housing: Square; actuator: Round
- Functions
momentary
- Contact type
1 maker
- Recess diameter
22 mm
- Type
With recess for label
IP66
IP67
IP69/IP69K
- Min. temperature
-25 °C
- Max. temperature
+70 °C

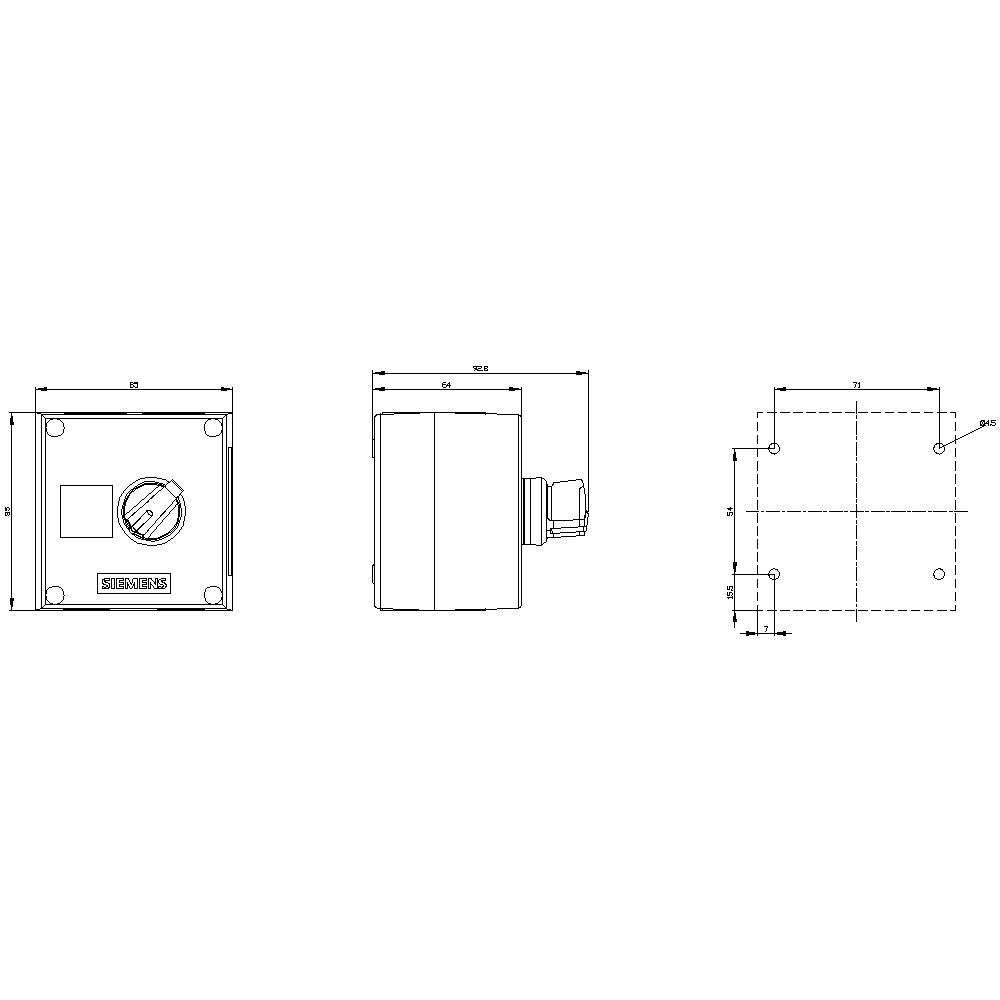

- Width
85 mm
- Height
85 mm
- Content
1 pc(s)
- Dim
(W x H x D) 85 x 85 x 75 mm
- RoHS-compliant
Yes
- Depth
75 mm
- Type
3SU1801-0BE00-4AB1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2864013 Siemens 3SU18010BE004AB1 3SU1801-0BE00-4AB1 Enclosure for floor mounting, Front ring (steel), + label Toggle Black, Silv
User & Safety Instructions
User & Safety Instructions 2864013 Siemens 3SU18010BE004AB1 3SU1801-0BE00-4AB1 Enclosure for floor mounting, Front ring (steel), + label Toggle Black, Silv
Description
Casing for control devices 22 mm, round, housing material plastic, housing top part gray, 1 command point, A = handle, black, metal, 2 switch positions, momentary, 1S, spring connection, floor mounting, support point terminal, without shield, top and bottom 1xM20 housing SIRIUS ACT for mounting the 22.5 mm command and signaling devices with a spatially separate arrangement of control units and control cabinets.

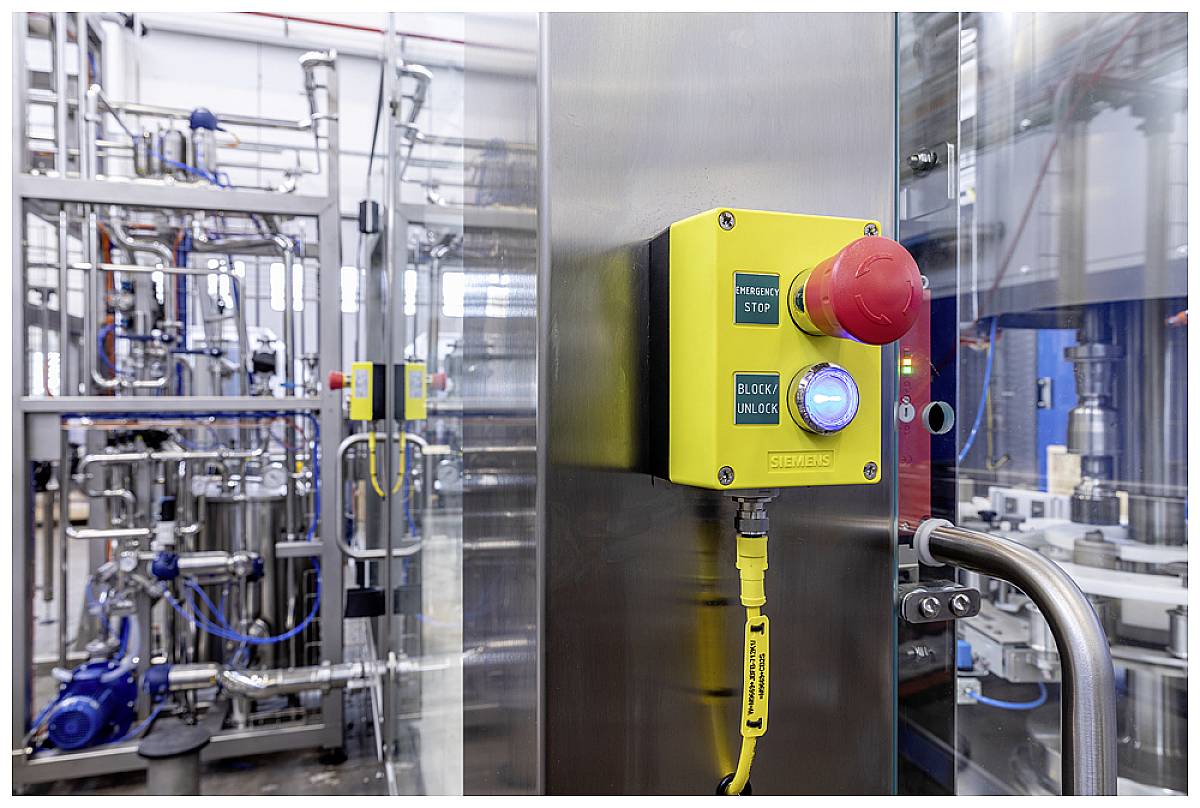

Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.
The innovative snap concept simplifies the mounting so that only one hand and no special tool are needed. As installation holes, slot-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even high-pressure cleaning is possible. Neither dust, oil nor aggressive alkalis can disturb the reliable operation.
In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring work, minimizes the sources of errors and gives you more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available designs: Yellow/gray, plastic/metal, 1-6 command points, empty housing/pre-mounting, optionally with AS-interface connection.
SIRIUS ACT - Performance in ACTION for commands and messages. Simply mounted, simply strong, simply perfect.
