Siemens 3SU18010NB002AA2 3SU1801-0NB00-2AA2 Enclosure for floor mounting, + label 1-button Red Turn 1 pc(s) Piece
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of command points: 1
- Tightening torque for screw terminals / maximum: 0.9 Nm
- Actuator type: EMERGENCY STOP mushroom pushbutton
- Contact/auxiliary contact design: Silver alloy
- Mounting type of housing: Vertical
- Operating equipment protection class: II.
- OPERATING VOLTAGE 5 - 500 V DC/AC
- Actuator material: Plastic
- Housing material: Plastic
- Holder material: Plastic
- EMERGENCY STOP function: Yes
- EMERGENCY STOP function: Yes
- Forced opening: Yes
- Packaging type
Piece
- Product type
Enclosure
- Switch/button features
for floor mounting
+ label
- Operation type
1-button
- Factory colour
Red
- Case colour
Yellow
- Button Ø
40 mm
- Print motif
EMERGENCY STOP
- Connection
Open cable end
Screws
- Unlocking mechanism
Turn
- Shape
Installation opening: Round;Housing front: Square;Actuator: Round
- Functions
latch
- Contact type
2 breakers
- Recess diameter
22 mm
- Type
Command point in the middle
IP66
IP67
IP69/IP69K
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Width
85 mm
- Height
89.4 mm
- Content
1 pc(s)
- Dim
(W x H x D) 85 x 89.4 x 109 mm
- RoHS-compliant
Yes
- Depth
109 mm
- Type
3SU1801-0NB00-2AA2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2262378 Siemens 3SU18010NB002AA2 3SU1801-0NB00-2AA2 Enclosure for floor mounting, + label 1-button Red Turn 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2262378 Siemens 3SU18010NB002AA2 3SU1801-0NB00-2AA2 Enclosure for floor mounting, + label 1-button Red Turn 1 pc(s) Piece
Description

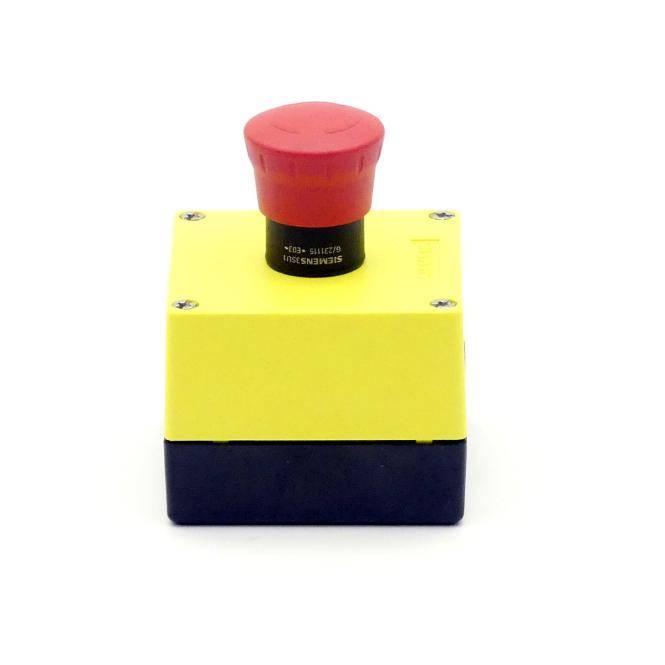

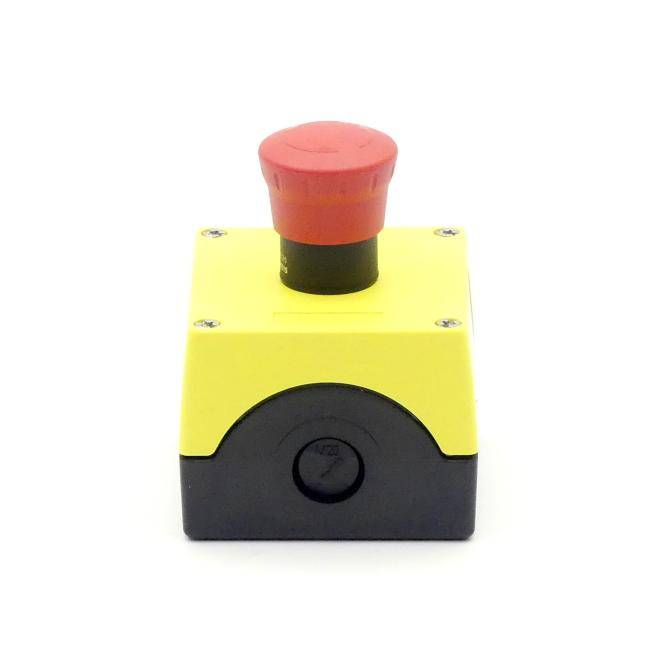

Housing for control devices, 22 mm, round, housing material plastic, upper part of housing yellow, 1 plastic command point, central command point, A=EMERGENCY STOP mushroom pushbutton red, 40 mm, rotary release, 1NC, 1NC, screw connection, floor mounting, top and bottom of each 1xM20 SIRIUS ACT housing for mounting the 22.5 mm command and signaling devices with separate locations of control units and control cabinets.
Under the SIRIUS ACT brand name Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in four modern design series made of robust real metal and high-quality plastic.
The innovative snap-on concept simplifies the assembly so far that only one hand and no special tools are required for this. As mounting holes, nuts-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and suitable for outdoor use. Even the cleaning with high pressure jet is possible. Neither dust, oils nor aggressive alkalis can disturb the reliable operation.
In addition to standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Thus you reduce your wiring effort, minimize sources of error and gain more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, housings and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available versions: Yellow/gray, plastic/metal, 1-6 command lines, empty housing/pre-configuration, optionally with AS-Interface connection.
SIRIUS ACT - Performance in action when commands and signaling. Simply mounted, simply strong, simply perfect.
This text is machine translated.
Under the SIRIUS ACT brand name Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in four modern design series made of robust real metal and high-quality plastic.
The innovative snap-on concept simplifies the assembly so far that only one hand and no special tools are required for this. As mounting holes, nuts-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and suitable for outdoor use. Even the cleaning with high pressure jet is possible. Neither dust, oils nor aggressive alkalis can disturb the reliable operation.
In addition to standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Thus you reduce your wiring effort, minimize sources of error and gain more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, housings and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available versions: Yellow/gray, plastic/metal, 1-6 command lines, empty housing/pre-configuration, optionally with AS-Interface connection.
SIRIUS ACT - Performance in action when commands and signaling. Simply mounted, simply strong, simply perfect.
