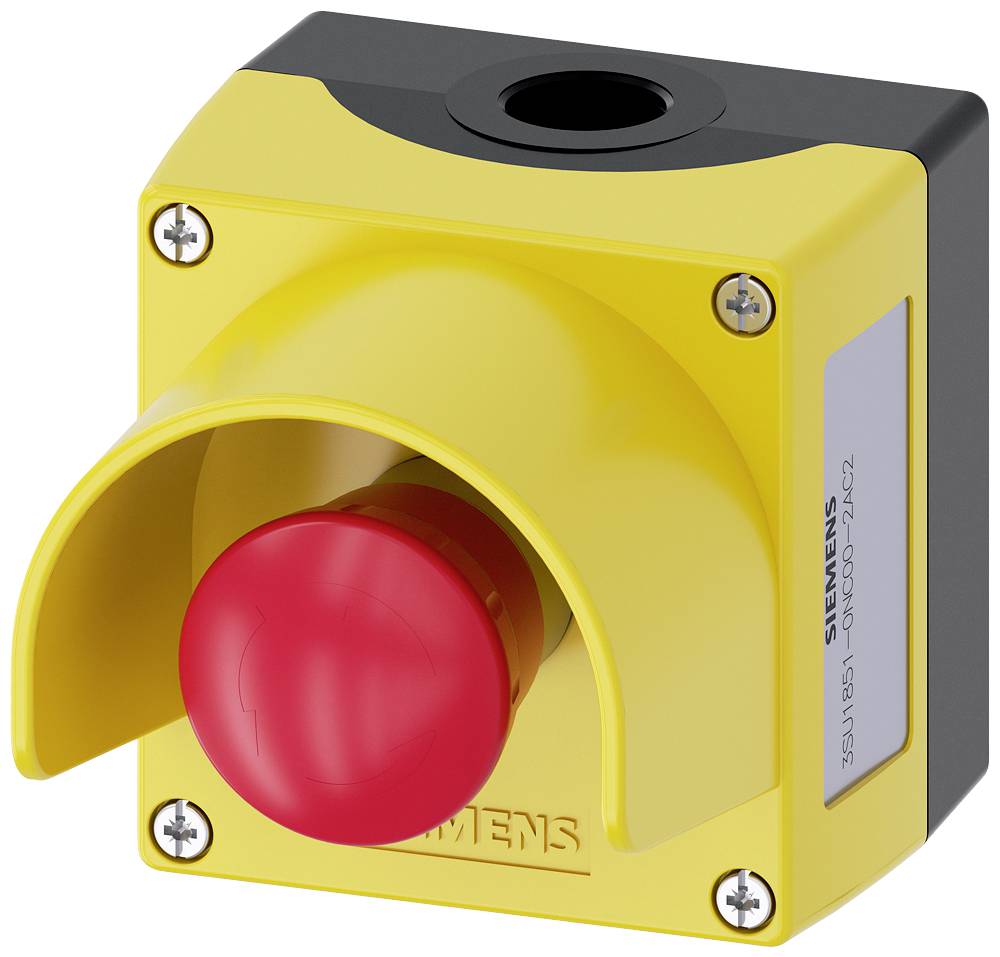

Siemens 3SU18510NC002AC2 3SU1851-0NC00-2AC2 Enclosure for floor mounting, + label 1-button Red Turn 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of command points: 1
- Tightening torque for screw connection / maximum: 0.9 Nm
- Execution of actuator: EMERGENCY-STOP mushroom pushbutton
- Design of the contact / the auxiliary contacts: Silver alloy
- Case mounting method: Vertical
- Equipment protection class I
- OPERATING VOLTAGE 5 500 V DC/AC
- Material of actuator: Plastic
- Case material: Metal
- Material of holder: Metal
- Emergency STOP function: Yes
- EMERGENCY STOP function: Yes
- Forced opening: Yes
- Product type
Enclosure
- Switch/button features
for floor mounting
+ label
- Lighting type
None
- Operation type
1-button
- Factory colour
Red
- Case colour
Yellow
- Button Ø
40 mm
- Print motif
I
- Connection
Open cable end
Screws
- Unlocking mechanism
Turn
- Shape
Mounting hole: Round; front of housing: Square; actuator: Round
- Functions
momentary

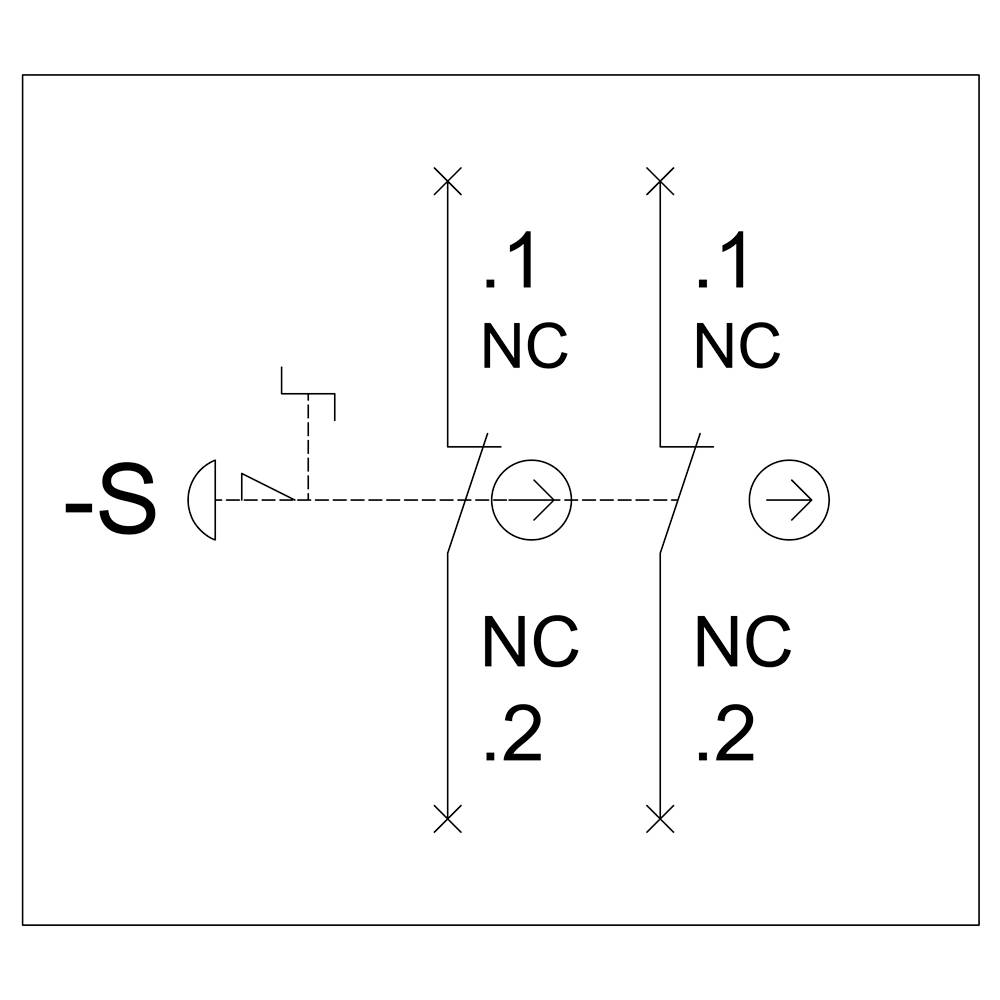

- Contact type
2 breakers
- Recess diameter
22 mm
- Type
With protective collar
IP66
IP67
IP69/IP69K
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Width
85 mm
- Height
89.4 mm
- Content
1 pc(s)
- Dim
(W x H x D) 85 x 89.4 x 112.5 mm
- RoHS-compliant
Yes
- Depth
112.5 mm
- Type
3SU1851-0NC00-2AC2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2864022 Siemens 3SU18510NC002AC2 3SU1851-0NC00-2AC2 Enclosure for floor mounting, + label 1-button Red Turn 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2864022 Siemens 3SU18510NC002AC2 3SU1851-0NC00-2AC2 Enclosure for floor mounting, + label 1-button Red Turn 1 pc(s)
Description
Casing for control devices 22 mm, round, metal casing, upper part yellow, with protective collar, 1 Metal command point, A=Emergency-hold mushroom pushbutton, red, 40 mm, rotary unlocked, 1NC, 1 NC, gold-plated contacts, screw terminals, floor mounting, top and bottom 1xM20 housing SIRIUS ACT for the assembly of the 22.5 mm command and signaling devices with space-separate arrangement of control units and cabinets.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.
The innovative snap concept simplifies the mounting so that only one hand and no special tool are needed. As installation holes, slot-free holes are sufficient, since a 100% anti-twist protection is already integrated.
Thanks to the consistently high degree of protection, the robust devices are suitable for industrial use and for outdoor use. Even high-pressure cleaning is possible. Neither dust, oil nor aggressive alkalis can disturb the reliable operation.
In addition to the standard wiring, most devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. This reduces your wiring work, minimizes the sources of errors and gives you more flexibility.
The graphical online configurator conveniently supports the selection and ordering of individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, connection diagram) is available.
Available designs: Yellow/gray, plastic/metal, 1-6 command points, empty housing/pre-mounting, optionally with AS-interface connection.
SIRIUS ACT - Performance in ACTION for commands and messages. Simply mounted, simply strong, simply perfect.
This text is machine translated.
