Siemens 3TG1001-1AL2 Magnetic starter 3 makers, 1 breaker 4 kW + auxiliary contact Compatible with (relay brand): Siemen
EAN:
Part number:
Item no:
Product type
Magnetic starter
No. of pins
4-pin
Power
4 kW
Connection
CEE 7/16 CEE plug
Packaging type
Single
Datasheet (PDF)
Technical specifications
- Packaging type
Single
- Product type
Magnetic starter
- Type
3TG1001-1AL2
- No. of pins
4-pin
- Contact type
3 makers
1 breaker
- Auxiliary contact type
1 breaker
- Control voltage (min.)
230 V AC
- Control voltage (max.)
230 V AC
- Control voltage range
230 - 230 V AC
- Switching voltage (max.)
400 V AC
- Permanent current (max.)
16 A
4 kW
- Compatible with
Siemens
- Compatible with series
Siemens Sirius series
- Features
+ auxiliary contact
- Mounting type
Screw-fit
Snap-in
DIN rail
- Connection
CEE 7/16 CEE plug
IP00
- Min. temperature
-25 °C
- Max. temperature
+55 °C

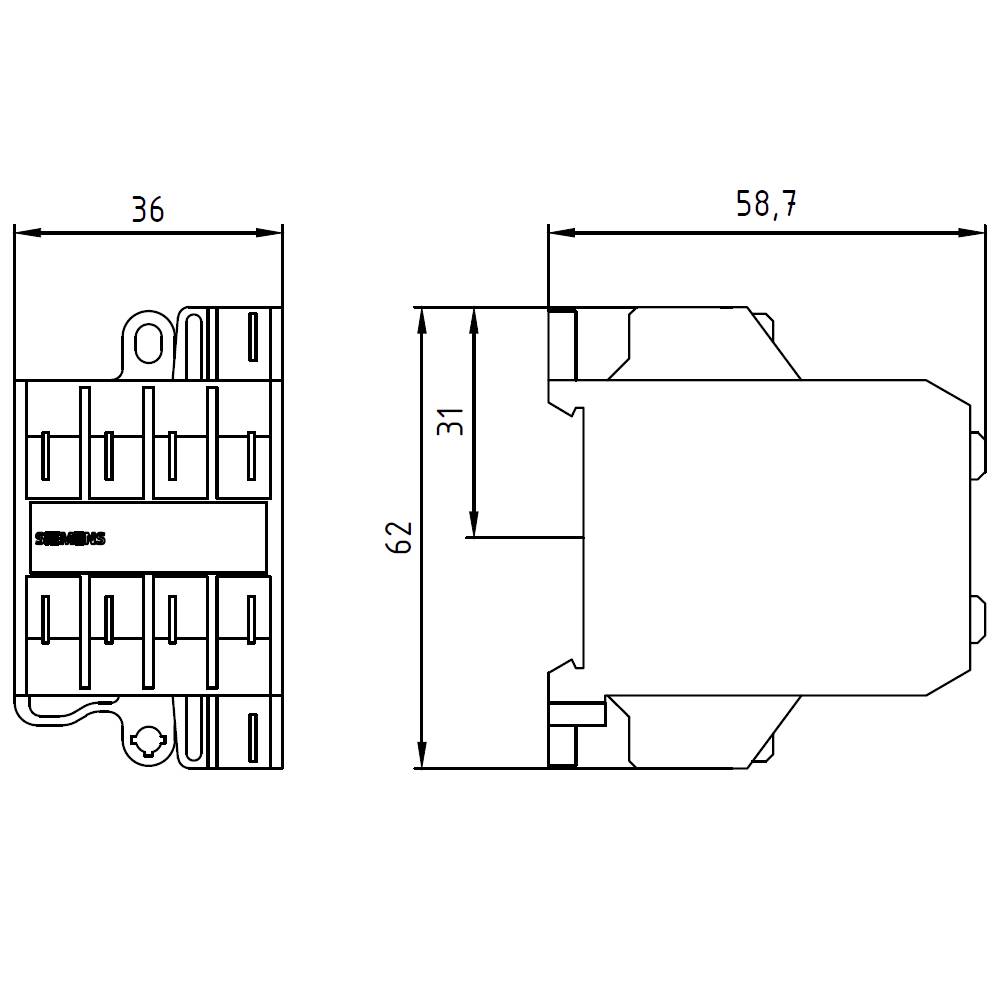

- Width
36 mm
- Height
62 mm
- Depth
61 mm
- Dim
(W x H x D) 36 x 62 x 61 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
