Name: Siemens 3VA5135-5EC31-1AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 35 - 35 A Switching voltage (max.): 480
Brand: Siemens
SKU: 1727730
Availability: BackOrder

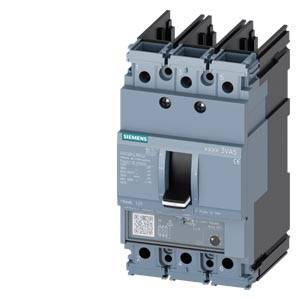

A Siemens circuit breaker, three-pole, for protecting electrical systems. Suitable for industrial applications.

Siemens 3VA5135-5EC31-1AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 35 - 35 A Switching voltage (max.): 480 -1

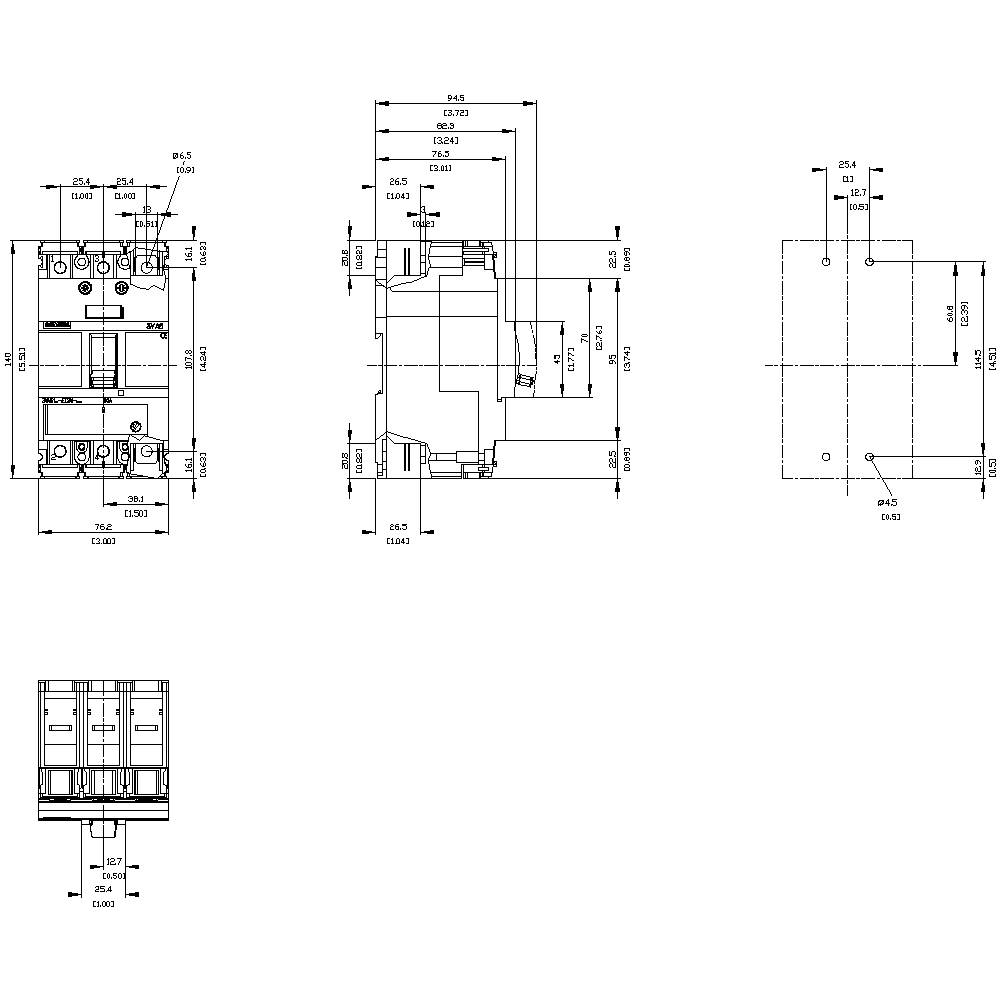

Technical drawings of a switch with side and front views, along with precise dimensional measurements in millimetres.

1/3

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

35 A

Packaging type

Piece

Type

3VA5135-5EC31-1AA0

Amperage adjustment range (min.)

35 A

Datasheet (PDF)

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 355.00 / piece)

€ 355.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: System Protection
Power loss: 3.67 W
Weight: 0.88 kg
Mechanical life: 15000
Electrical life: 8000
Mains frequency: 50/60 Hz.

Packaging type: Piece

Product type: Circuit breaker

Type: 3VA5135-5EC31-1AA0

Amperage adjustment range (min.): 35 A

Amperage adjustment range (max.): 35 A

Adjustment range (amperage): 35 - 35 A

No. of pins: 3-pin

Switching voltage (max.): 480 V AC

Compatible with series: Siemens 3VA series

Compatible with: Siemens

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: M

OCR type: TM230

: IP40

Depth: 76.5 mm

Width: 76.2 mm

Height: 140 mm

Dim: (W x H x D) 76.2 x 140 x 76.5 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 35 A

: 3

: 35-35 A

: 0

: 11.4 W

: IP40

: Other

: FALSE

: Other

: Rocker lever

: 175-350 A

: TRUE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3VA1125-5EF42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1722589

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

18 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 415.00^*

Siemens 3VA1125-5EF46-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm Piece

Item no:1722590

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

18 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 525.00^*

Siemens 3VA1125-5GD42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1722591

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 419.00^*

Siemens 3VA1125-5GD46-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm Piece

Item no:1722592

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 465.00^*

Siemens 3VA1125-5GF42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1722593

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

18 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 499.00^*

Siemens 3VA1125-5GF46-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1722594

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

18 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 465.00^*

Siemens 3VA1125-6ED32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm

Item no:1722595

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Siemens 3VA1125-6ED36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm Piece

Item no:1722596

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 359.00^*

Siemens 3VA1125-6ED42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1722597

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 409.00^*

Siemens 3VA1125-6EE36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm Piece

Item no:1722598

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

18 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 395.00^*

Documents & Downloads

Datasheet

Datasheet 1727730 Siemens 3VA5135-5EC31-1AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 35 - 35 A Switching voltage (max.): 480

User & Safety Instructions

User & Safety Instructions 1727730 Siemens 3VA5135-5EC31-1AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 35 - 35 A Switching voltage (max.): 480

Description

circuit breaker 3VA5 UL frame 125 breaking capacity class S 25kA @ 480V 3-pole, line protection TM210, ftfm, In=90A overload protection ir=90A fixed short circuit protection iI=10 x In w/o connection 3VA5 molded-case circuit breaker for cable protection, UL approval. As an important element of SENTRON protective components for industrial and infrastructure applications, the 3VA UL molded-case circuit breakers from Siemens provide effective plant and starter protection thanks to reliable shutdown in the event of an overload or short circuit. The 3VA UL sets new standards in terms of flexibility and the variety of modular accessories available. The 3VA UL molded-case circuit breakers also offer the perfect conditions for machine and switchgear manufacturers who export worldwide. Alongside the IEC standard, both the 3VA5 and 3VA6 range also meet the UL standard. All functions can therefore be implemented and used for systems worldwide. Key features of this version of the 3VA molded-case circuit breaker: 1. Compact design. 2. Available as version for plant protection. 3. Depending on the size: 1-pole, 2-pole (3-pole enclosure design) and 3-pole versions. 4. Depending on size: Breaking capacity of 25 kA. 100 kA at 480 V for 3-pole breakers and 25 kA to 50 kA at 277 V for 1-pole breakers. 5. The series has a thermo-magnetic trip unit. 6. Modular and easy-to-fit internal accessories with wide range of functions. 7. Integrated accessories platform for all 3VA UL molded-case circuit breakers. www.siemens.de/3VA. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
