Siemens 3VA5180-4ED11-1AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 80 - 80 A Switching voltage (max.): 277
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
80 A
Type
3VA5180-4ED11-1AA0
Amperage adjustment range (min.)
80 A
Adjustment range (amperage)
80 - 80 A
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 176.46 / piece)
€
Technical specifications
- Design: System Protection
- Power loss: 5.5 W
- Weight: 0.38 kg
- Mechanical life: 15000
- Electrical life: 8000
- Mains frequency: 50/60 Hz.
- Product type
Circuit breaker
- Type
3VA5180-4ED11-1AA0
- Amperage adjustment range (min.)
80 A
- Amperage adjustment range (max.)
80 A
- Adjustment range (amperage)
80 - 80 A
- No. of pins
1-pin
- Switching voltage (max.)
277 V AC
- Mounting type
Fixed
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Breaking capacity rating
S
- OCR type
TM210
IP40

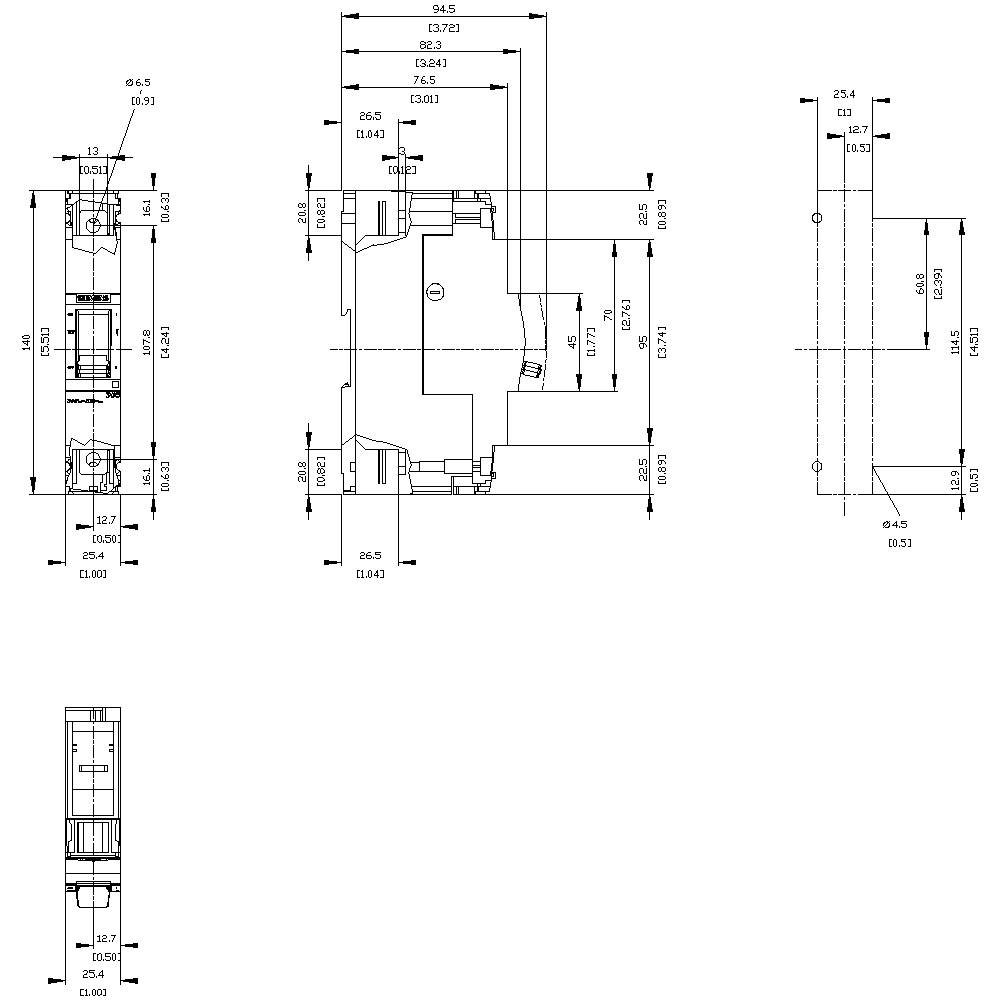

- Depth
76.5 mm
- Width
25.4 mm
- Height
140 mm
- Dim
(W x H x D) 25.4 x 140 x 76.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
0
0
80 A
1
0
6.43 W
IP40
Other
FALSE
Other
Rocker lever
TRUE
FALSE
FALSE
Built-in device fixed built-in technique
TRUE
TRUE
Documents & Downloads
Datasheet
Datasheet 1728777 Siemens 3VA5180-4ED11-1AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 80 - 80 A Switching voltage (max.): 277
User & Safety Instructions
User & Safety Instructions 1728777 Siemens 3VA5180-4ED11-1AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 80 - 80 A Switching voltage (max.): 277
Description
circuit breaker 3VA1 IEC frame 160 breaking capacity class M Icu=55kA @ 415 V 2-pole, line protection TM210, ftfm, In=160A overload protection ir=160A fixed short circuit protection iI=10 x In busbar connection
