Name: Siemens 3VA5180-4ED31-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 80 - 80 A Switching voltage (max.): 690
Brand: Siemens
SKU: 1728778
Availability: BackOrder

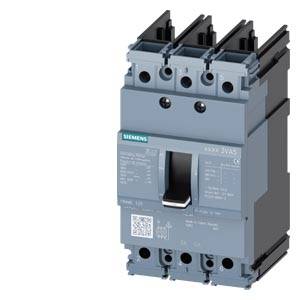

An electrical power switch with multiple terminals and a central switching lever, suitable for industrial applications.

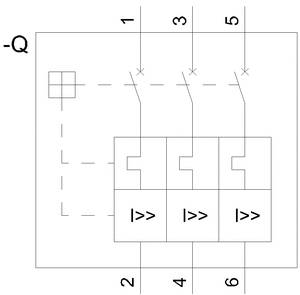

Circuit diagram with three switches and connections. Labels: 'Q-1', 'Q-3', 'Q-5' at top and 'Q-2', 'Q-4', 'Q-6' at bottom.

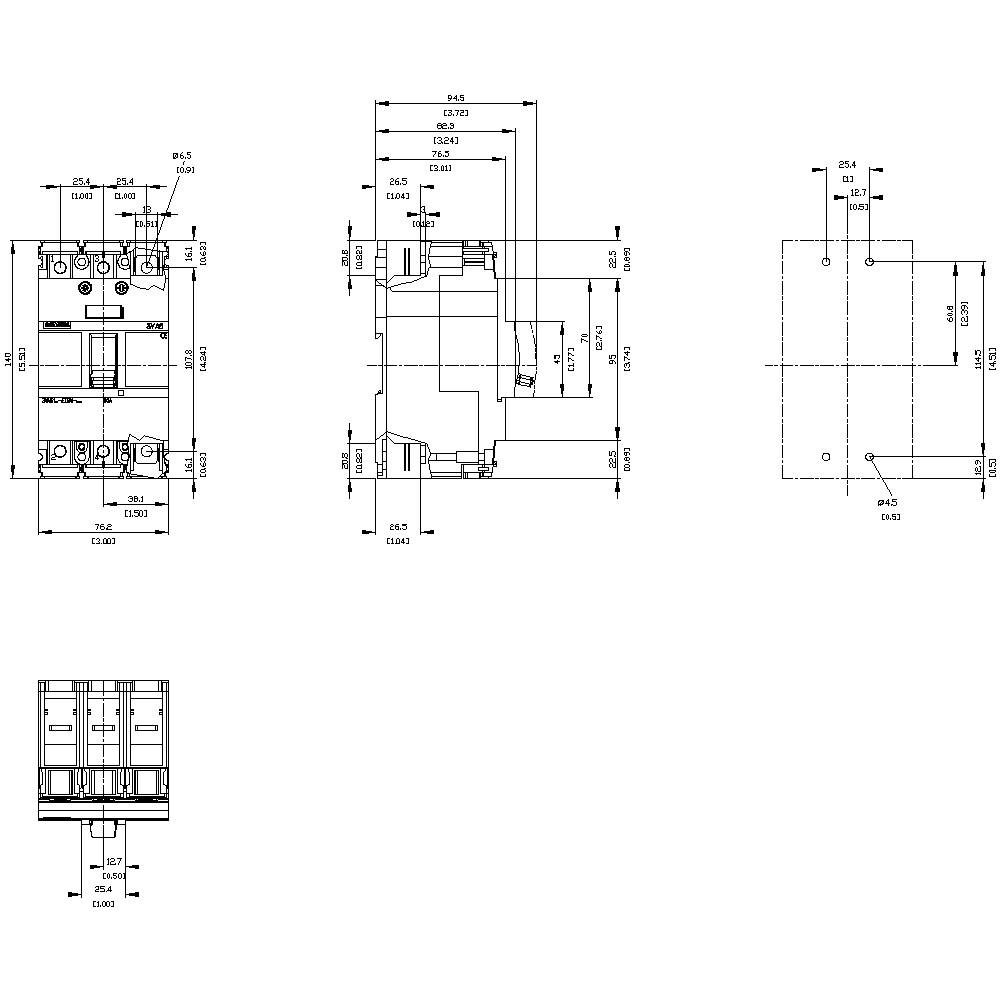

Technical drawing of a switch with detailed dimensions in millimetres. The view shows front, side, and top elevations.

1/3

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

80 A

Packaging type

Piece

Type

3VA5180-4ED31-0AA0

Amperage adjustment range (min.)

80 A

Datasheet (PDF)

Dispatches on Fri 30 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 369.00 / piece)

€ 369.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: System Protection
Power loss: 5.9 W
Weight: 0,976 kg
Mechanical life: 15000
Electrical life: 8000
Isolation voltage: 800 V
Mains frequency: 50/60 Hz.

Packaging type: Piece

Product type: Circuit breaker

Type: 3VA5180-4ED31-0AA0

Amperage adjustment range (min.): 80 A

Amperage adjustment range (max.): 80 A

Adjustment range (amperage): 80 - 80 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: S

OCR type: TM210

: IP40

Depth: 76.5 mm

Width: 76.2 mm

Height: 140 mm

Dim: (W x H x D) 76.2 x 140 x 76.5 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 80 A

: 3

: 0

: 19.3 W

: IP40

: Other

: FALSE

: Other

: Rocker lever

: 36 kA

: TRUE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes
