Name: Siemens 3VA5212-6ED31-1AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 125 - 125 A Switching voltage (max.): 48
Brand: Siemens
SKU: 1748540
Availability: BackOrder

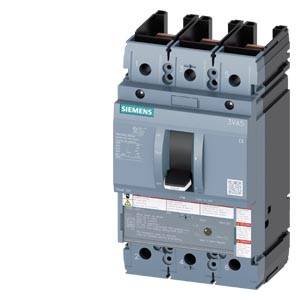

Siemens circuit breaker, three-pole, grey casing, large lever for controlling electrical current in industrial applications.

Siemens 3VA5212-6ED31-1AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 125 - 125 A Switching voltage (max.): 48-1

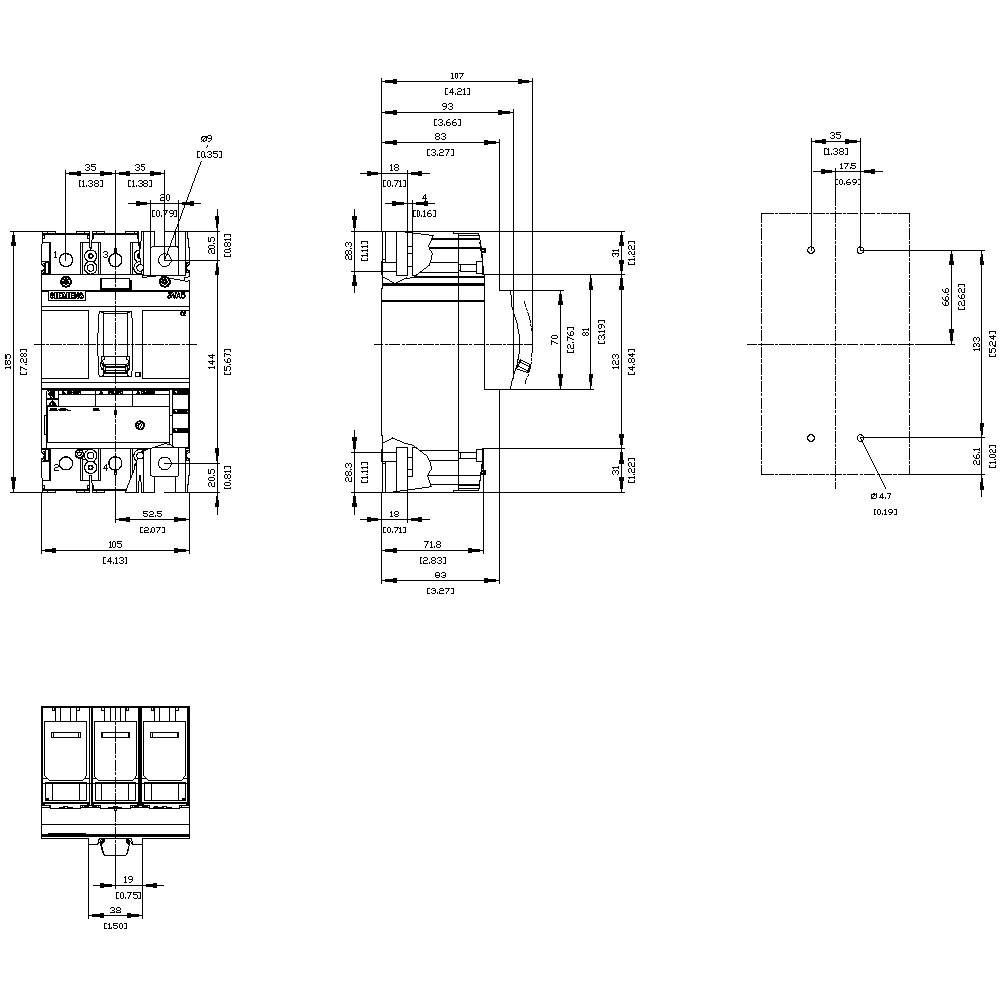

Technical drawing of an electrical switch with detailed dimensions and front, top, and side views.

1/3

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

125 A

Packaging type

Piece

Type

3VA5212-6ED31-1AA0

Amperage adjustment range (min.)

125 A

Datasheet (PDF)

Dispatches on Fri 30 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 945.00 / piece)

€ 945.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: System Protection
Power loss: 7.53 W
Weight: 2.04 kg
Mechanical life: 15000
Electrical life: 8000
Mains frequency: 50/60 Hz.

Packaging type: Piece

Product type: Circuit breaker

Type: 3VA5212-6ED31-1AA0

Amperage adjustment range (min.): 125 A

Amperage adjustment range (max.): 125 A

Adjustment range (amperage): 125 - 125 A

No. of pins: 3-pin

Switching voltage (max.): 480 V DC/AC

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: H

OCR type: TM210

: IP40

Depth: 83 mm

Width: 105 mm

Height: 185 mm

Dim: (W x H x D) 105 x 185 x 83 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 125 A

: 3

: 0

: 23 W

: IP40

: Other

: FALSE

: Other

: Rocker lever

: TRUE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes
