Image similar

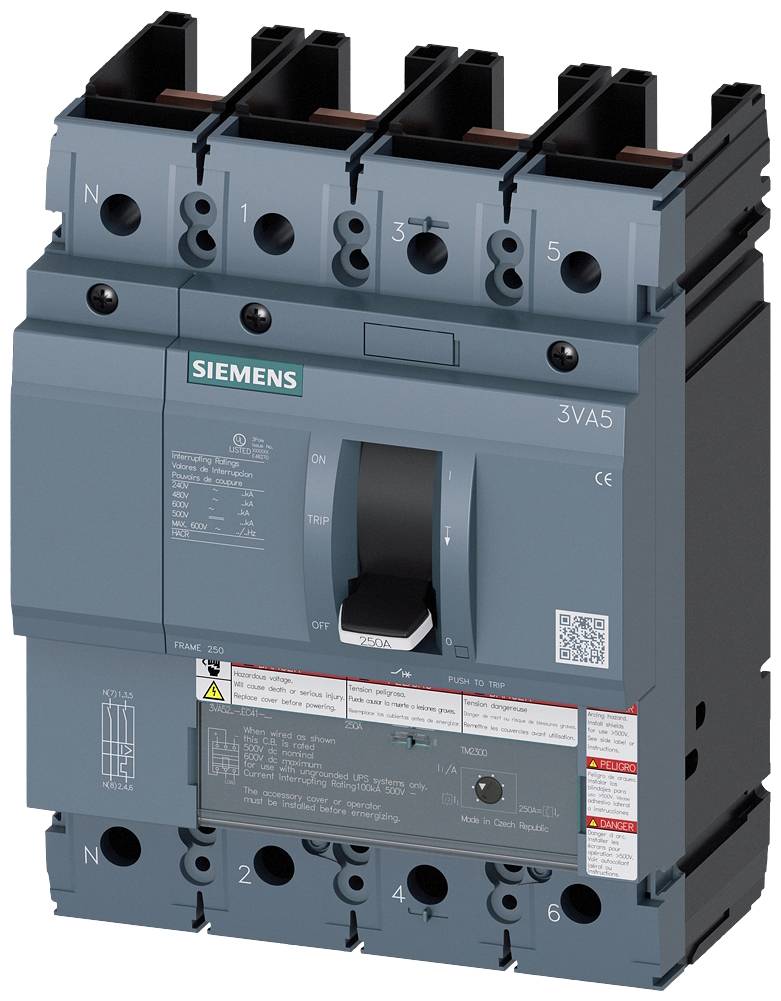

Siemens 3VA5290-7EC41-2AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 450 - 900 A Piece
Product type
Circuit breaker
Amperage adjustment range (max.)
900 A
Packaging type
Piece
Type
3VA5290-7EC41-2AA0
Amperage adjustment range (min.)
450 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Circuit breaker 3VA5 UL Frame 250 Breaking capacity Class C 100kA @ 480 V 4-pin
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Circuit breaker
- Type
3VA5290-7EC41-2AA0
- Amperage adjustment range (min.)
450 A
- Amperage adjustment range (max.)
900 A
- Adjustment range (amperage)
450 - 900 A
- No. of pins
4-pin
- Breaking capacity rating
C
- OCR type
TM230
- Content
1 pc(s)
- RoHS-compliant
Yes
0
0
90 A
4
0
25 W
IP40
Rocker lever
110 kA
Built-in device fixed built-in technique
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2872297 Siemens 3VA5290-7EC41-2AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 450 - 900 A Piece
User & Safety Instructions
User & Safety Instructions 2872297 Siemens 3VA5290-7EC41-2AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 450 - 900 A Piece
Description
Circuit breaker 3VA5 UL FRAME 250 switch capacity class C 100kA @ 480 V 4-pin, system protection TM230, FTAM, In=90A overload protection IR=90A fixed set Short circuit protection II=5...10 x In N-conductor unprotected without connection
This text is machine translated.
This text is machine translated.
