Name: Siemens 3VA5570-7EC62-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 3500 - 7000 A
Brand: Siemens
SKU: 2868205

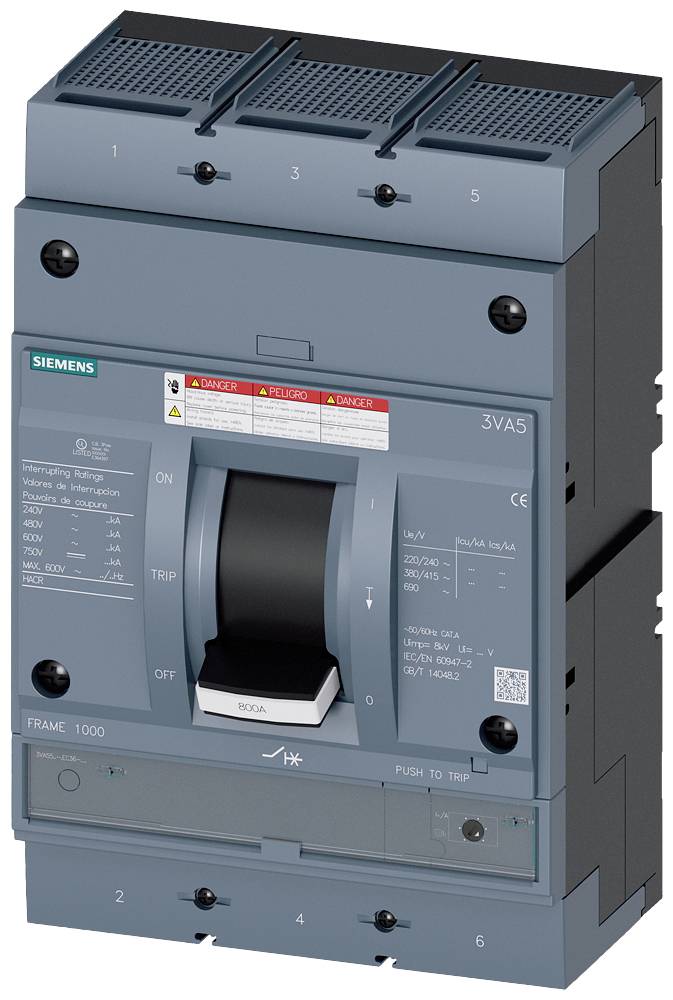

Circuit breaker, detailed view. Shows model number, technical specifications and control panel with on/off switch.

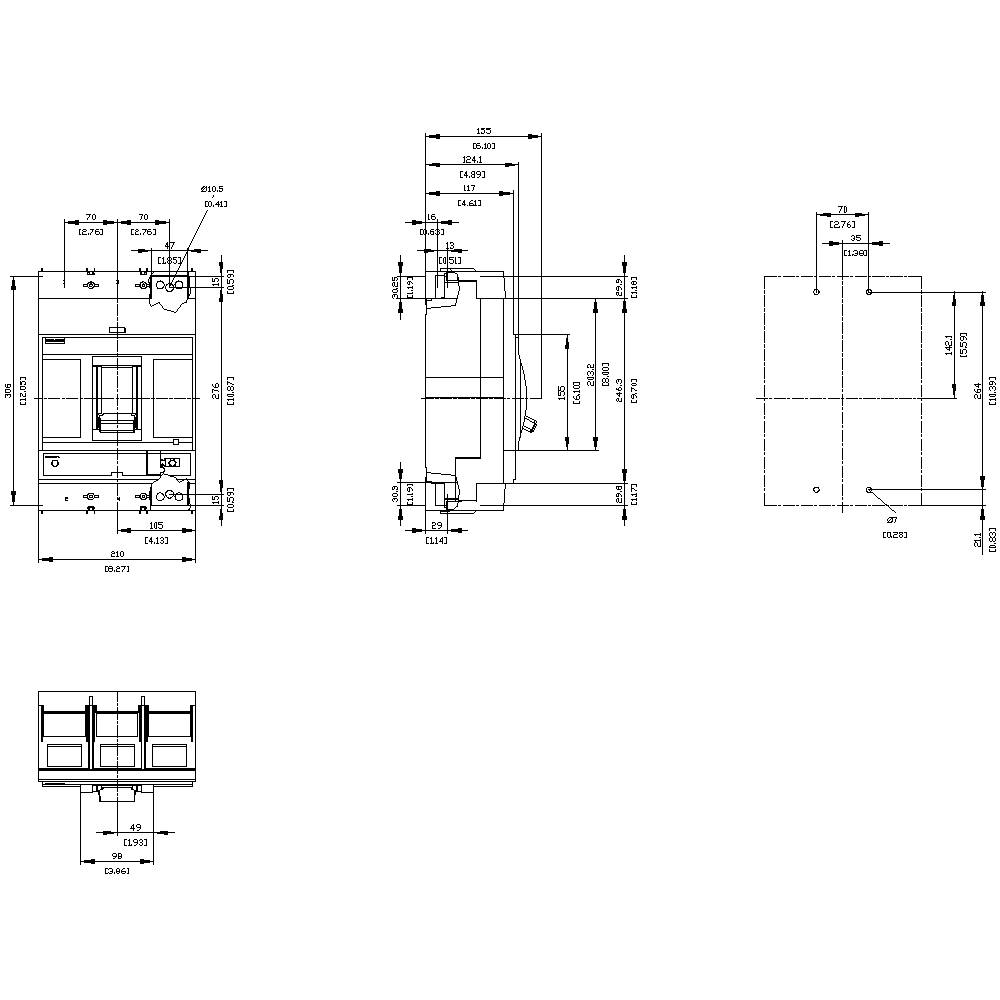

Technical drawing of an electrical switch with detailed dimensions and multiple views for mounting and installation.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

7000 A

Type

3VA5570-7EC62-0AA0

Amperage adjustment range (min.)

3500 A

Adjustment range (amperage)

3500 - 7000 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Our service for you

Technical specifications

Product type: Circuit breaker

Type: 3VA5570-7EC62-0AA0

Amperage adjustment range (min.): 3500 A

Amperage adjustment range (max.): 7000 A

Adjustment range (amperage): 3500 - 7000 A

No. of pins: 2-pin

Breaking capacity rating: C

OCR type: TM230

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 700 A

: 2

: 0

: 122 W

: IP40

: Front side

: FALSE

: Other

: Rocker lever

: 110 kA

: TRUE

: FALSE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: not relevant
