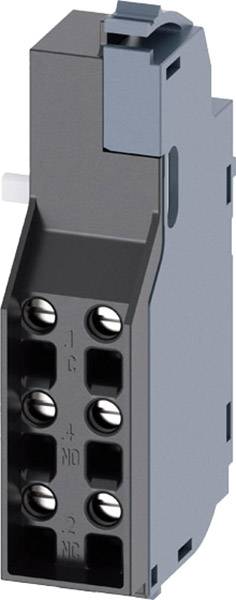

Siemens 3VA9988-0AA21 Auxiliary switch 1 pc(s) 2 change-overs Adjustment range (amperage): 10 A (max) Switching voltage
EAN:
Part number:
Item no:
Product type
Auxiliary switch
Amperage adjustment range (max.)
10 A
Contact type
2 change-overs
Type
3VA9988-0AA21
Adjustment range (amperage)
10 A (max)
Datasheet (PDF)
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
Technical specifications
- Accessories for 3 VA switch
- Isolation voltage: 690 V
- Weight: 0,033 kg
- Wire stripping length: 15 mm
- Product type
Auxiliary switch
- Type
3VA9988-0AA21
- Amperage adjustment range (max.)
10 A
- Adjustment range (amperage)
10 A (max)
- Contact type
2 change-overs
- No. of pins
2-pin
- Switching voltage (max.)
600 V AC
- Compatible with series
Siemens 3VA series
- Compatible with
Siemens
- Depth
30 mm
- Width
14 mm
- Height
56 mm
- Dim
(W x H x D) 14 x 56 x 30 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Other
Documents & Downloads
Datasheet
Datasheet 1539113 Siemens 3VA9988-0AA21 Auxiliary switch 1 pc(s) 2 change-overs Adjustment range (amperage): 10 A (max) Switching voltage
User & Safety Instructions
User & Safety Instructions 1539113 Siemens 3VA9988-0AA21 Auxiliary switch 1 pc(s) 2 change-overs Adjustment range (amperage): 10 A (max) Switching voltage
Description
LEADING AUXILIARY SWITCH CHANGER CONTACTS TYPE HP (14mm) FOR: 3VA1 and 3VA20 to 3VA25 Internal accessories for compact circuit breaker 3VA. With the internal accessories of the 3VA compact circuit breaker, they flexibly cover a wide range of applications. Due to the color and mechanical coding, all components can be installed in a fail-safe manner and are integrated throughout all the series of 3VA compact circuit breakers. These accessories are characterized by: 1. Flexible use for a wide range of applications. 2. Color and mechanical coding for error-free installation in the accessories pockets of the compact circuit breaker. 3. Integrated internal accessories for 3VA compact circuit breakers. 4. Available internal accessories: Auxiliary switches, leading auxiliary switches, trip and short-circuit signaling switches (3VA1 only), auxiliary releases (voltage, fault current, undervoltage and universal release), cylinder lock.
