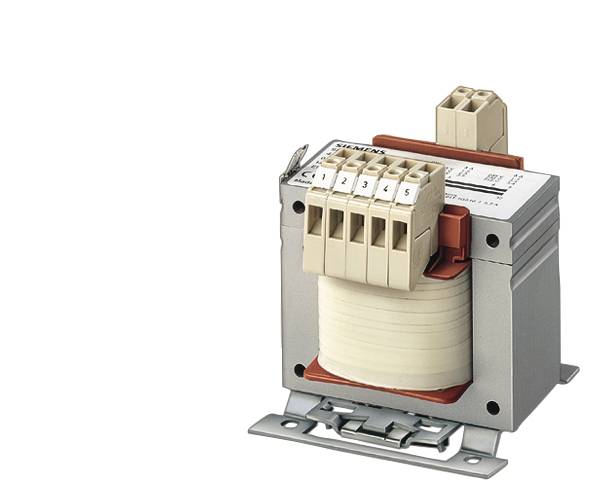

Siemens 4AM38425AT100FA0 Transformer 0.7 A
EAN:
Part number:
Item no:
Highlights & Details
Transformer 1-ph. PN/PN(kVA) 0.16/0.49, Upri(V)400, Usec(V) 230, ISEC(a) 0.7
- 0.7 A
Technical specifications
- Product type
Transformer
- Output voltage
230 V
- Output current
0.7 A
- Connection
Screw terminal
- Content
1 pc(s)
- Insulation class
Ta40/B
- Mounting type
Screw fastening
- RoHS-compliant
Yes
- Protection class
IP00
- Type
4AM3842-5AT10-0FA0
- Max. ambient temperature
40 °C
98
106 mm
104 mm
FALSE
Other
IP00
160 W
B
7.7 %
160 VA
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3044375 Siemens 4AM38425AT100FA0 Transformer 0.7 A
Description
TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):0.16 /0.49, UPRI(V):400+/-5%, USEC(V):230, ISEC(A):0.7, F(HZ):50...60, SWITCHING GR/SHIELD.:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION: SCREW/flat plug CONNECTION, MOUNTING:SCREWS / DIN RAIL, EN 61558--1, -2-2, -2 >UL/CSA-RECOGNIZED<>CONTROL TRANSFORMER<>ISOLATING TRANSFORMER< 4AM transformers combine all the features of single-phase safety, isolating, control or mains transformers. In this way you can master every application with flying colors. The control transformers are also characterized by their short-term power.
