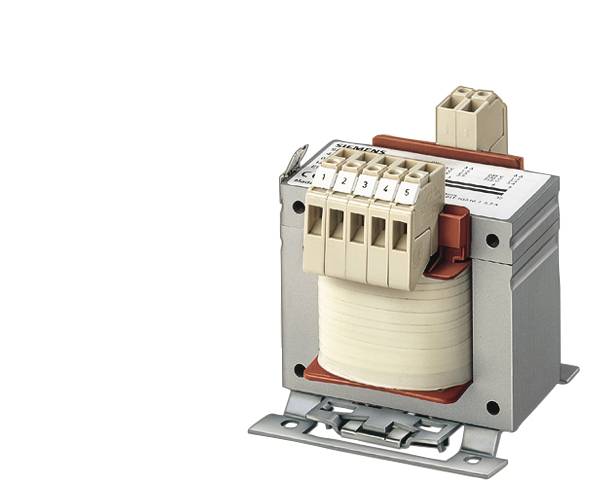

Siemens 4AM40424TN000EA0 Transformer 10.4 A
EAN:
Part number:
Item no:
Highlights & Details
Transformer 1-ph. PN/PN(kVA) 0.25/0.85, Upri(V)230, Usec(V) 24, ISEC(a) 10.4
- 10.4 A
Technical specifications
- Product type
Transformer
- Output voltage
24 V
- Output current
10.4 A
- Connection
Screw terminal
- Content
1 pc(s)
- Insulation class
T 40/B
- Mounting type
Screw fastening
- Test mark
UL/CSA-RECOGNIZED
- RoHS-compliant
Yes
- Protection class
IP00
- Type
4AM4042-4TN00-0EA0
- Max. ambient temperature
40 °C
98
106 mm
118 mm
FALSE
Other
IP00
250 W
B
6.36 %
250 VA
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3044376 Siemens 4AM40424TN000EA0 Transformer 10.4 A
Description
TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):0.25 /0.85, UPRI(V):230+/-5%, USEC(V):24, ISEC(A):10.4, F(HZ):50...60, SWITCHING GR/SHIELD.:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION:SCREW/Flat plug CONNECTION, MOUNTING:SCREWS / DIN RAIL, EN 61558-2-, -2 >UL/CSA-RECOGNIZED<>CONTROL TRANSFORMER<>SAFETY TRANSFORMER< The 4AM transformers combine all the features of single-phase safety, isolation, control or mains transformers. In this way you can master every application with flying colors. The control transformers are also characterized by their short-term power.
