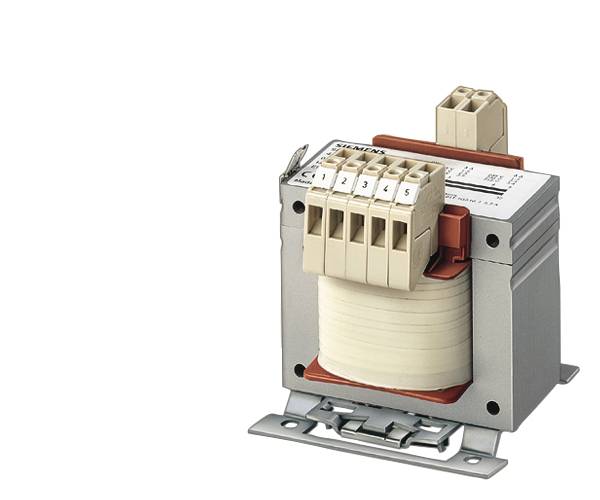

Image similar
Siemens 4AM55425AT100FA0 Transformer 3.48 A
EAN:
Part number:
Item no:
Highlights & Details
Transformer 1-ph. PN/PN(kVA) 0.8/3.4, Upri(V)400, Usec(V) 230, ISEC(a) 3.48
- 3.48 A
Technical specifications
- Product type
Transformer
- Output voltage
230 V
- Output current
3.48 A
- Connection
Screw terminal
- Content
1 pc(s)
- Test mark
UL/CSA-RECOGNIZED
- RoHS-compliant
Yes
- Protection class
IP00
- Features
+/- 5% input voltage terminal
- Type
4AM5542-5AT10-0FA0
- Max. ambient temperature
40 °C
152
144 mm
126 mm
FALSE
Other
IP00
800 W
B
3.1 %
800 VA
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3044377 Siemens 4AM55425AT100FA0 Transformer 3.48 A
Description
TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):0.8 /3.4, UPRI(V):400+/-5%, USEC(V):230, ISEC(A):3.48, F(HZ):50...60, SWITCHING GR/SHIELD.:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION: SCREW/Flat plug CONNECTION, MOUNTING:SCREWS, EN 61558--1, -2-2, -2 >UL/CSA-RECOGNIZED<>CONTROL TRANSFORMER<>ISOLATING TRANSFORMER< The 4AM transformers combine all the features of single phase safety, isolation, control or mains transformers. In this way you can master every application with flying colors. The control transformers are also characterized by their short-term power.
