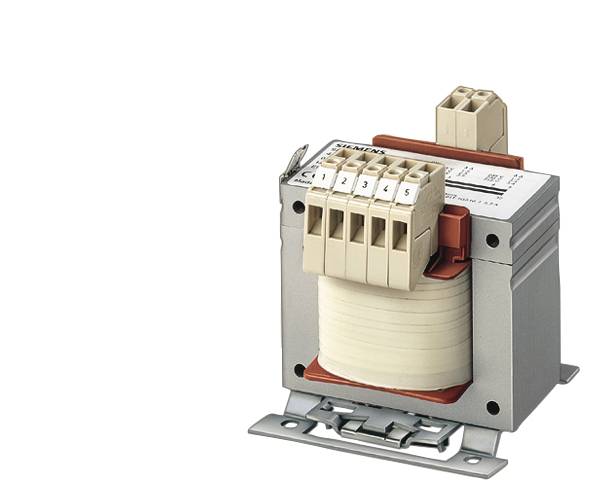

Siemens 4AM57425AT100FA0 Transformer 4.35 A
EAN:
Part number:
Item no:
Highlights & Details
Transformer 1-ph. PN/PN(kVA) 1/5, Upri(V)400, Usec(V) 230, ISEC(a) 4.35
- 4.35 A
Our service for you
Technical specifications
- Product type
Transformer
- Output voltage
230 V
- Output current
4.35 A
- Connection
Screw terminal
- Content
1 pc(s)
- Insulation class
T 40/B
- Mounting type
Screw fastening
- Test mark
UL/CSA-RECOGNIZED
- RoHS-compliant
Yes
- Protection class
IP00
- Type
4AM5742-5AT10-0FA0
- Max. ambient temperature
40 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3044378 Siemens 4AM57425AT100FA0 Transformer 4.35 A
Description
TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):1 /5, UPRI(V):400+/-5%, USEC(V):230, ISEC(A):4.35, F(HZ):50...60, SWITCHING GR/SHIELD.:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION: SCREW/Flat plug CONNECTION, MOUNTING: SCREWS, EN 61558-2-, -2 >UL/CSA-RECOGNIZED<>CONTROL TRANSFORMER<>ISOLATION TRANSFORMER< The 4AM transformers combine all the features of single-phase safety, isolation, control or mains transformers. In this way you can master every application with flying colors. The control transformers are also characterized by their short-term power.
