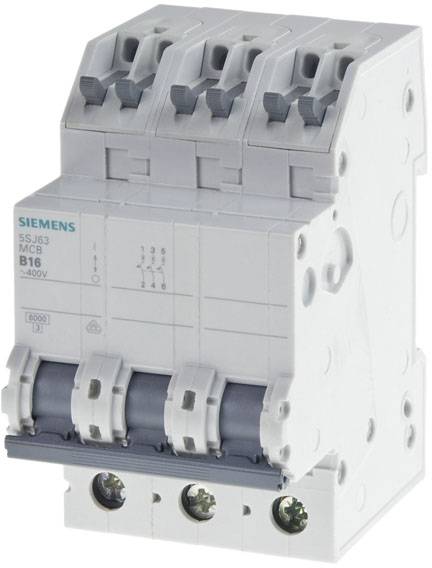

Image similar
Siemens 5SJ63107KS 5SJ6310-7KS Circuit breaker 10 A
Product type
Circuit breaker
Number of pins
3
Release characteristics
C
Nominal current - rounded value
10 A
Type
Line circuit breaker 5SJ6
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of width-division units: 3Number of test cycles / for environmental testing: 6Design of the basic type: 5SJ6Suitability for use: Residential construction / infrastructureAll mounting positions permittedMounting depth: 70 mmInsulation voltage / at AC 440 VMechanical life (cycles) / typical: 20000Number of poles / note: 3PProduct features / protection against contact: YesProduct property / halogen-free: YesProduct property / lead-sealable: YesProduct property / silicone-free: YesSwitching capacity Current / according to EN 60898: 6 kASwitching capacity Current / according to IEC 60947-2: 6 kAProtection class IP:IP20, with connected conductorsAmbient temperature / during operation / minimum: -25 °C.Ambient temperature / during operation / maximum: +45 °C.Power loss / at rated current / at AC / at warm operating state / per pole: 1.3 W.Power loss/maximum 3.9 W.Pollution level: 2Supply voltage frequency 50 HzSurge voltage category 3Design of the electrical connection / plug-in terminals / Note: Screwless terminals on the output side for 1.5 to 4mm²Operating voltage / minimum: 24 VConnectable wire cross-section / at the plug-in connection / when using the upper terminal point / without wire-end processing / minimum: 1.5 mm²Connectable wire cross-section / at the plug-in connection / when using the upper terminal point / without wire-end processing / maximum: 4 mm²Cross-section/single-wire: 0.75 mm² - 25 mm²Cross-section/fine wire/wire-end processing: 1.5 mm² - 2.5 mm²Cross-section/multi-wire connection: 0.75 mm² - 25 mm²
- Type
Line circuit breaker 5SJ6
- Nominal voltage (details)
400 V AC
- Product type
Circuit breaker
- Number of pins
3
- Operating class
3
- Release characteristics
C
- RoHS-compliant
Yes
- Nominal current - rounded value
10 A
- Nominal current
10 A
- Dim
(W x H x D) 54 x 90 x 76 mm
- Content
1 pc(s)
- Operating voltage
440 V AC
- Width
54 mm
- Height
90 mm
- Depth
76 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2757586 Siemens 5SJ63107KS 5SJ6310-7KS Circuit breaker 10 A
User & Safety Instructions
User & Safety Instructions 2757586 Siemens 5SJ63107KS 5SJ6310-7KS Circuit breaker 10 A
Description
Line circuit breaker 400V 6kA, 3-pole, C, 10A, T=70mm with screwless output terminals The circuit breaker is the circuit breaker for short-circuit protection. The circuit breakers from Siemens, an important component of SENTRON protection components for electrical installations, provide effective protection for people and systems by safely switching off in case of overload and short circuit. Convenient mounting and connection technology, uniform additional components and a uniform design - these are the characteristics of the device family. Whether for infrastructure or for industrial requirements, Siemens offers circuit breakers for all applications and every application area. The Siemens circuit breakers are distinguished above all by: 1. Effective protection for people, investments and systems from overload and short circuit. 2. Reliable installation safety thanks to the standard grip and protection against accidental contact. 3. Datamatrix-Code at the front of the device offers all information about circuit breakers quickly and easily. 4. Optimal technology for your safety - only from Siemens. For the secure, efficient electrical infrastructure in buildings and industry, Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets.
