Name: Siemens 5SL60047 5SL6004-7 Circuit breaker 4 A
Brand: Siemens
SKU: 2757589

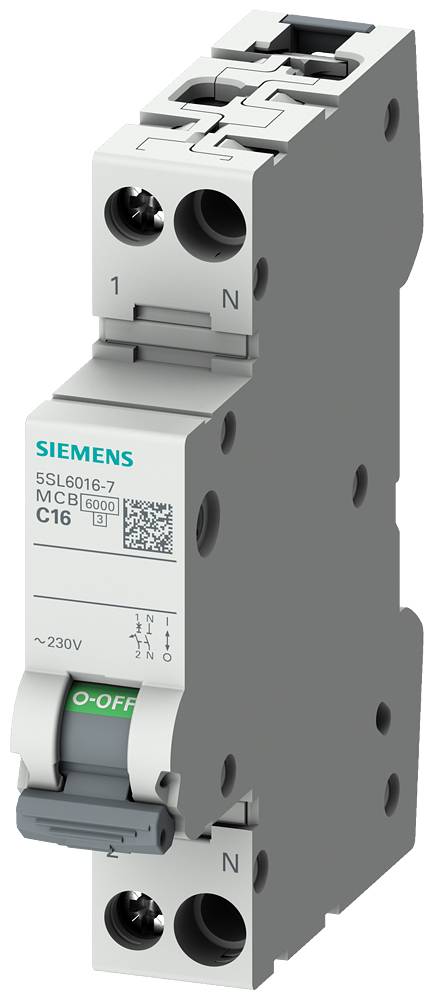

'Siemens circuit breaker, Type C16, single-pole, for 230V, in the switched-on state.'

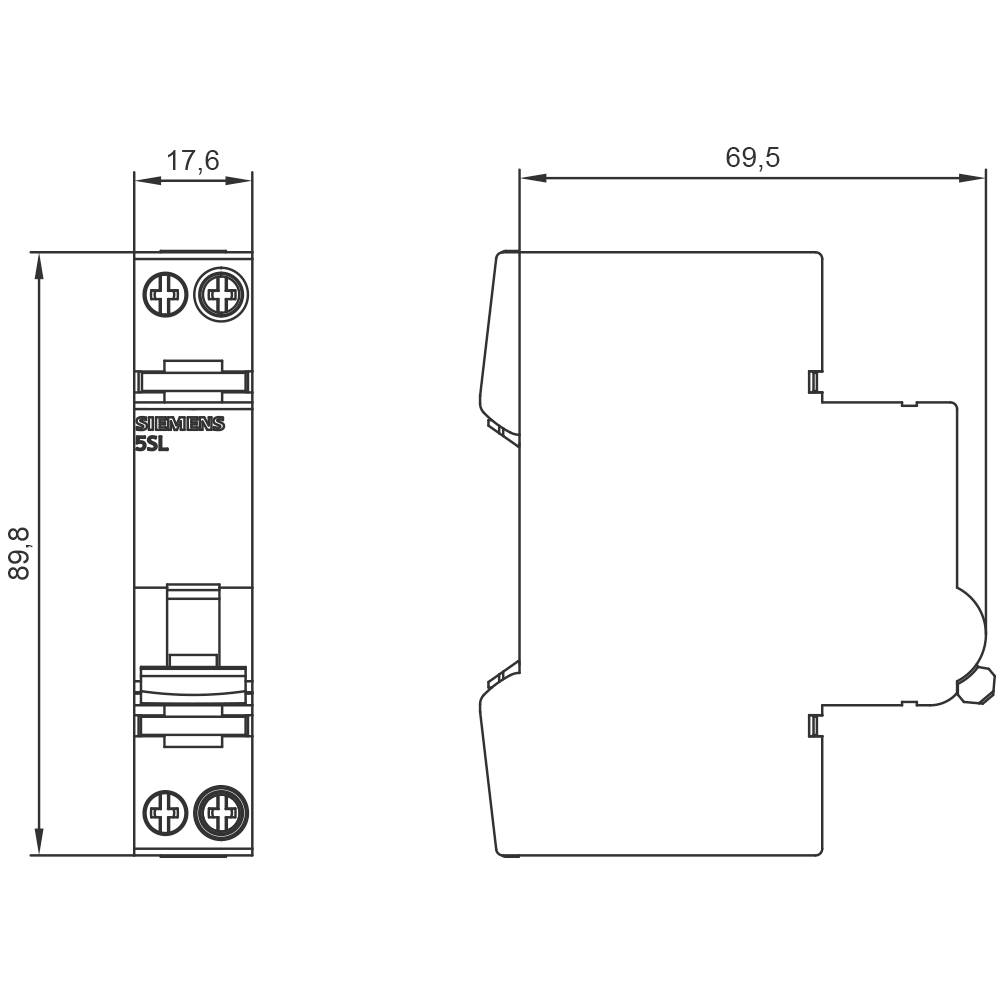

Technical drawing of an electrical switch with dimensions: Width 17.6 mm, Height 89.8 mm, Depth 69.5 mm. Side and front view.

1/2

Image similar

Product type

Circuit breaker

Number of pins

Release characteristics

Nominal current - rounded value

4 A

Type

Circuit breaker compact

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of width-division units: 1Number of test cycles / for environmental testing: 6Tightening torque / with screw connection / minimum: 2 NmTightening torque / for screw connection / maximum: 2.5 NmDesign of the basic type: 5SL60Mounting type: Top hat railSuitability for use: Residential construction / infrastructureAll mounting positions permittedMounting depth: 70 mmInsulation voltage / at AC 250 VInsulation voltage / at single-phase operation / at AC: 250 VMechanical life (cycles) / typical: 4000Number of pins / note: 1P+NPosition / of the power cable: RandomProduct features / protection against contact: YesProduct property / halogen-free: YesProduct property / lead-sealable: YesProduct property / silicone-free: YesProduct extension / installable / additional equipment: YesProduct function / switching neutral conductor: YesSwitching capacity (ICU+) 6 kASwitching capacity Current / according to EN 60898: 6 kAProtection class IP:IP20, with connected conductorsAmbient temperature / during operation / minimum: -25 °C.Ambient temperature / during operation / maximum: +45 °C.Power loss / at rated current / at AC / at warm operating state / per pole: 2 W.Power loss/maximum 2.08 W.Pollution level: 2Supply voltage frequency 50 HzSupply voltage frequency / note: 50/60 HzOver voltage category IIIOperating voltage / minimum: 24 VCross-section/single-wire: 0.75 mm² - 16 mm²Cross-section/fine wire/wire-end processing: 0.75 mm² - 10 mm²Cross-section/multi-wire connection: 0.75 mm² - 16 mm²

Type: Circuit breaker compact

Nominal voltage (details): 230 V AC

Product type: Circuit breaker

Number of pins: 2

Operating class: 3

Release characteristics: C

RoHS-compliant: Yes

Nominal current - rounded value: 4 A

Nominal current: 4 A

Dim: (W x H x D) 18 x 90 x 76 mm

Content: 1 pc(s)

Operating voltage: 250 V AC

Width: 18 mm

Height: 90 mm

Depth: 76 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2757589 Siemens 5SL60047 5SL6004-7 Circuit breaker 4 A

User & Safety Instructions

User & Safety Instructions 2757589 Siemens 5SL60047 5SL6004-7 Circuit breaker 4 A

Description

LINE CIRCUIT BREAKER 230V 6KA, 1+N-POLE/1TE C4 line circuit breaker SENTRON 5SL for the safe short circuit and overload protection for standard applications in residential and functional buildingInstallation and dismantling of the device without any tools Easy wiring of the feed through the rear busbar.The 5SL circuit breakers are available in 1-, 2-, 3-, 4- as well as in 1+N- and 3+N-pole versions as well as in other special types.A wide range of accessories, for example Auxiliary switch makes possible the versatile expansion of the functions.Easily safe with the protective devices from SENTRON.
