Name: Siemens 5SL60087KL 5SL6008-7KL Circuit breaker 8 A
Brand: Siemens
SKU: 2757594

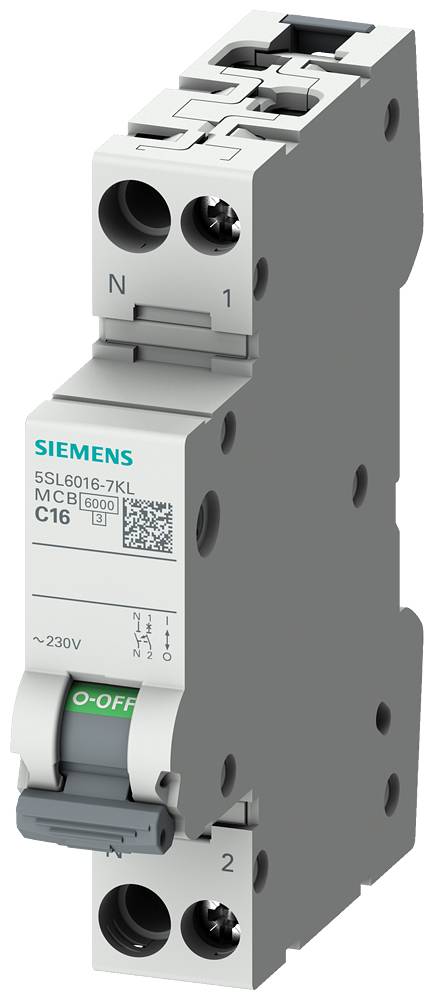

A grey Siemens circuit breaker with 'C16' marking. Switch is set to 'OFF'. Suitable for electricity up to 230V.

Image similar

Product type

Circuit breaker

Number of pins

Release characteristics

Nominal current - rounded value

8 A

Type

Circuit breaker compact

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of width-division units: 1Number of test cycles / for environmental testing: 6Tightening torque / with screw connection / minimum: 2 NmTightening torque / for screw connection / maximum: 2.5 NmBase type: 5SL60KLMounting type: Top hat railSuitability for use: Residential construction / infrastructureAll mounting positions permittedMounting depth: 70 mmInsulation voltage / at AC 250 VInsulation voltage / at single-phase operation / at AC: 250 VMechanical life (cycles) / typical: 10000Number of pins / note: 1P+NPosition / of the power cable: RandomProduct features / protection against contact: YesProduct property / halogen-free: YesProduct property / lead-sealable: YesProduct property / silicone-free: YesProduct extension / installable / additional equipment: YesProduct function / switching neutral conductor: YesSwitching capacity Current / according to EN 60898: 6 kAProtection class IP:IP20, with connected conductorsAmbient temperature / during operation / minimum: -25 °C.Ambient temperature / during operation / maximum: +45 °C.Power loss / at rated current / at AC / at warm operating state / per pole: 1.3 W.Power loss/maximum 1.61 W.Pollution level: 2Supply voltage frequency 50 HzSupply voltage frequency / note: 50/60 HzOver voltage category IIIOperating voltage / minimum: 24 VCross-section/single-wire: 0.75 mm² - 16 mm²Cross-section/fine wire/wire-end processing: 0.75 mm² - 10 mm²Cross-section/multi-wire connection: 0.75 mm² - 16 mm²

Type: Circuit breaker compact

Nominal voltage (details): 230 V AC

Product type: Circuit breaker

Number of pins: 2

Operating class: 3

Release characteristics: C

RoHS-compliant: Yes

Nominal current - rounded value: 8 A

Nominal current: 8 A

Dim: (W x H x D) 18 x 90 x 76 mm

Content: 1 pc(s)

Operating voltage: 250 V AC

Width: 18 mm

Height: 90 mm

Depth: 76 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2757594 Siemens 5SL60087KL 5SL6008-7KL Circuit breaker 8 A

User & Safety Instructions

User & Safety Instructions 2757594 Siemens 5SL60087KL 5SL6008-7KL Circuit breaker 8 A

Description

LINE CIRCUIT BREAKER 230V 6KA, 1+N-POLE/1TE, N LEFT C8 LINE CIRCUIT BREAKER SENTRON 5SL .The 5SL circuit breakers are available in 1-, 2-, 3-, 4-, 1+N- and 3+N-pole versions.A wide range of accessories, for example Auxiliary switch makes possible the versatile expansion of the functions.Easily safe with the protective devices from SENTRON.
