Name: Siemens 5SL60136 5SL6013-6 Circuit breaker 13 A
Brand: Siemens
SKU: 2757687

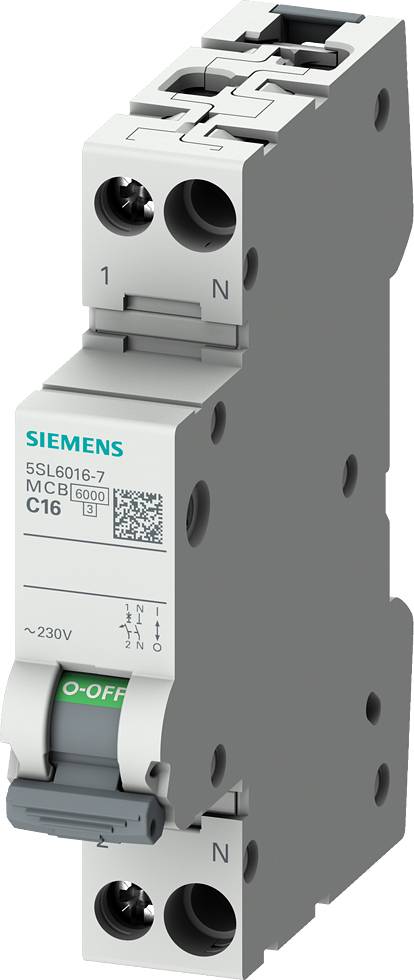

Siemens miniature circuit breaker, Type 5SL6016-7, 230V, C16, for protecting electrical circuits against overload and short circuit.

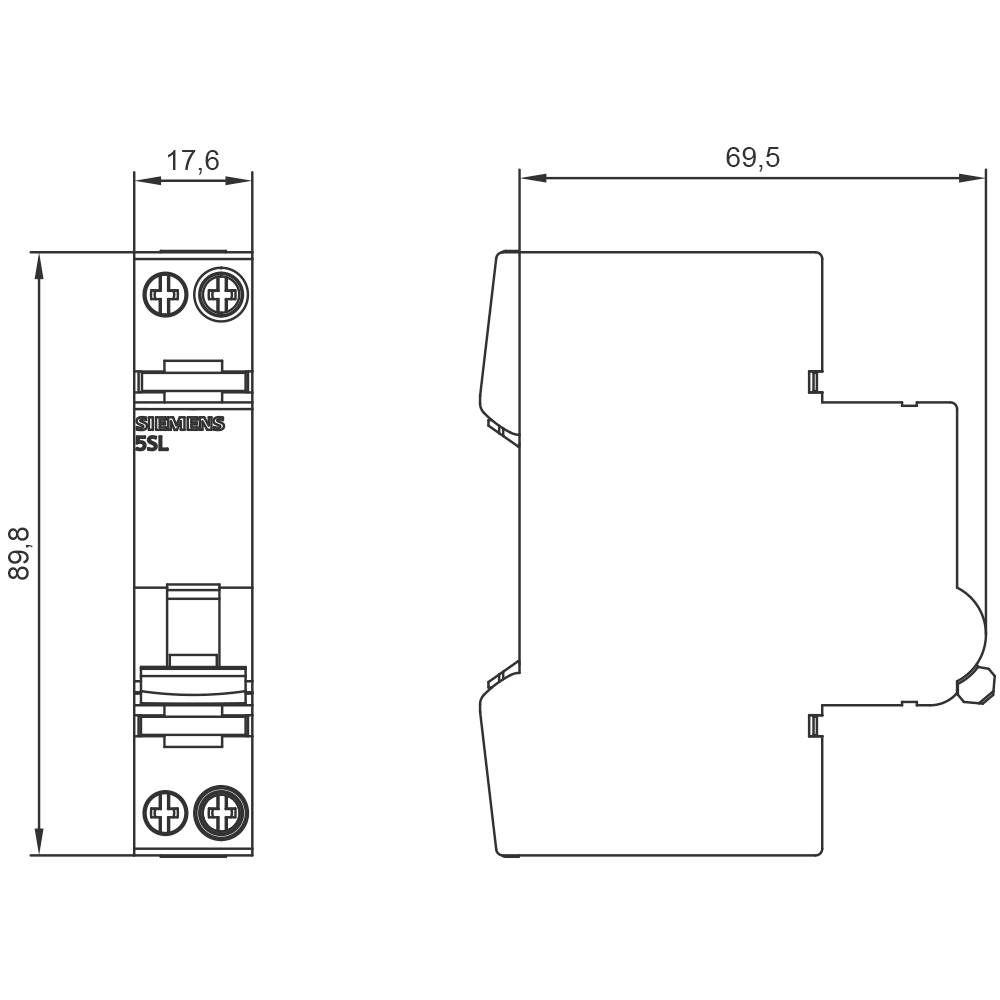

Circuit diagram of an electrical component with lateral dimensions: 17.6 mm width, 69.5 mm depth and 89.8 mm height.

1/2

Image similar

Product type

Circuit breaker

Number of pins

Release characteristics

Nominal current - rounded value

13 A

Type

Circuit breaker compact

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of width-division units: 1Number of test cycles / for environmental testing: 6Tightening torque / with screw connection / minimum: 2 NmTightening torque / for screw connection / maximum: 2.5 NmDesign of the basic type: 5SL60Mounting type: Top hat railSuitability for use: Residential construction / infrastructureAll mounting positions permittedMounting depth: 70 mmInsulation voltage / at AC 250 VInsulation voltage / at single-phase operation / at AC: 250 VMechanical life (cycles) / typical: 10000Number of pins / note: 1P+NPosition / of the power cable: RandomProduct features / protection against contact: YesProduct property / halogen-free: YesProduct property / lead-sealable: YesProduct property / silicone-free: YesProduct extension / installable / additional equipment: YesProduct function / switching neutral conductor: YesSwitching capacity (ICU+) 6 kASwitching capacity Current / according to EN 60898: 6 kAProtection class IP:IP20, with connected conductorsAmbient temperature / during operation / minimum: -25 °C.Ambient temperature / during operation / maximum: +45 °C.Power loss / at rated current / at AC / at warm operating state / per pole: 2.2 W.Power loss/maximum 3.01 W.Pollution level: 2Supply voltage frequency 50 HzSupply voltage frequency / note: 50/60 HzOver voltage category IIIOperating voltage / minimum: 24 VCross-section/single-wire: 0.75 mm² - 16 mm²Cross-section/fine wire/wire-end processing: 0.75 mm² - 10 mm²Cross-section/multi-wire connection: 0.75 mm² - 16 mm²

Type: Circuit breaker compact

Nominal voltage (details): 230 V AC

Product type: Circuit breaker

Number of pins: 2

Operating class: 3

Release characteristics: B

RoHS-compliant: Yes

Nominal current - rounded value: 13 A

Nominal current: 13 A

Dim: (W x H x D) 18 x 90 x 76 mm

Content: 1 pc(s)

Operating voltage: 250 V AC

Width: 18 mm

Height: 90 mm

Depth: 76 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2757687 Siemens 5SL60136 5SL6013-6 Circuit breaker 13 A

User & Safety Instructions

User & Safety Instructions 2757687 Siemens 5SL60136 5SL6013-6 Circuit breaker 13 A

Description

LINE CIRCUIT BREAKER 230V 6KA, 1+N-POLE/1TE B13 line circuit breaker SENTRON 5SL for the safe short circuit and overload protection for standard applications in residential and functional buildingInstallation and dismantling of the device without any tools Easy wiring of the feed through the rear busbar.The 5SL circuit breakers are available in 1-, 2-, 3-, 4- as well as in 1+N- and 3+N-pole versions as well as in other special types.A wide range of accessories, for example Auxiliary switch makes possible the versatile expansion of the functions.Easily safe with the protective devices from SENTRON.
