Name: Siemens 5SL60207KL 5SL6020-7KL Circuit breaker 20 A
Brand: Siemens
SKU: 2757607

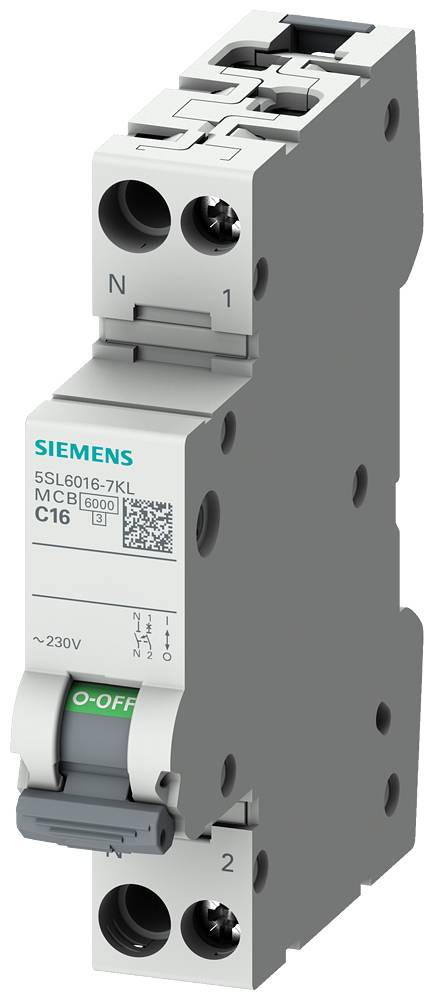

A single-pole Siemens circuit breaker, model C16, grey, with a green 'ON-OFF' lever, for 230V electrical installations.

Image similar

Product type

Circuit breaker

Number of pins

Release characteristics

Nominal current - rounded value

20 A

Type

Circuit breaker compact

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of width-division units: 1Number of test cycles / for environmental testing: 6Tightening torque / with screw connection / minimum: 2 NmTightening torque / for screw connection / maximum: 2.5 NmBase type: 5SL60KLMounting type: Top hat railSuitability for use: Residential construction / infrastructureAll mounting positions permittedMounting depth: 70 mmInsulation voltage / at AC 250 VInsulation voltage / at single-phase operation / at AC: 250 VMechanical life (cycles) / typical: 10000Number of pins / note: 1P+NPosition / of the power cable: RandomProduct features / protection against contact: YesProduct property / halogen-free: YesProduct property / lead-sealable: YesProduct property / silicone-free: YesProduct extension / installable / additional equipment: YesProduct function / switching neutral conductor: YesSwitching capacity Current / according to EN 60898: 6 kAProtection class IP:IP20, with connected conductorsAmbient temperature / during operation / minimum: -25 °C.Ambient temperature / during operation / maximum: +45 °C.Power loss / at rated current / at AC / at warm operating state / per pole: 2.2 W.Power loss/maximum 4.1 W.Pollution level: 2Supply voltage frequency 50 HzSupply voltage frequency / note: 50/60 HzOver voltage category IIIOperating voltage / minimum: 24 VCross-section/single-wire: 0.75 mm² - 16 mm²Cross-section/fine wire/wire-end processing: 0.75 mm² - 10 mm²Cross-section/multi-wire connection: 0.75 mm² - 16 mm²

Type: Circuit breaker compact

Nominal voltage (details): 230 V AC

Product type: Circuit breaker

Number of pins: 2

Operating class: 3

Release characteristics: C

RoHS-compliant: Yes

Nominal current - rounded value: 20 A

Nominal current: 20 A

Dim: (W x H x D) 18 x 90 x 76 mm

Content: 1 pc(s)

Operating voltage: 250 V AC

Width: 18 mm

Height: 90 mm

Depth: 76 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2757607 Siemens 5SL60207KL 5SL6020-7KL Circuit breaker 20 A

User & Safety Instructions

User & Safety Instructions 2757607 Siemens 5SL60207KL 5SL6020-7KL Circuit breaker 20 A

Description

LINE CIRCUIT BREAKER 230V 6KA, 1+N-POLE/1TE, N LEFT C20 CIRCUIT BREAKER SENTRON 5SL .The 5SL circuit breakers are available in 1-, 2-, 3-, 4-, 1+N- and 3+N-pole versions.A wide range of accessories, for example Auxiliary switch makes possible the versatile expansion of the functions.Easily safe with the protective devices from SENTRON.
