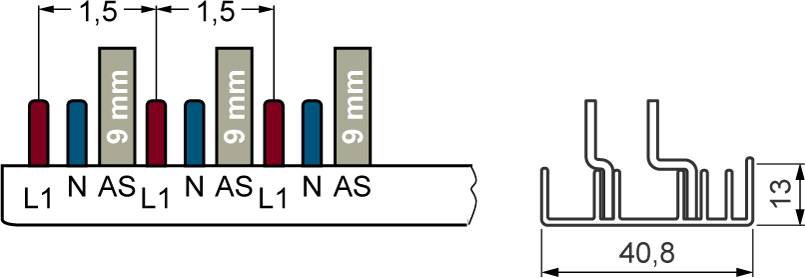

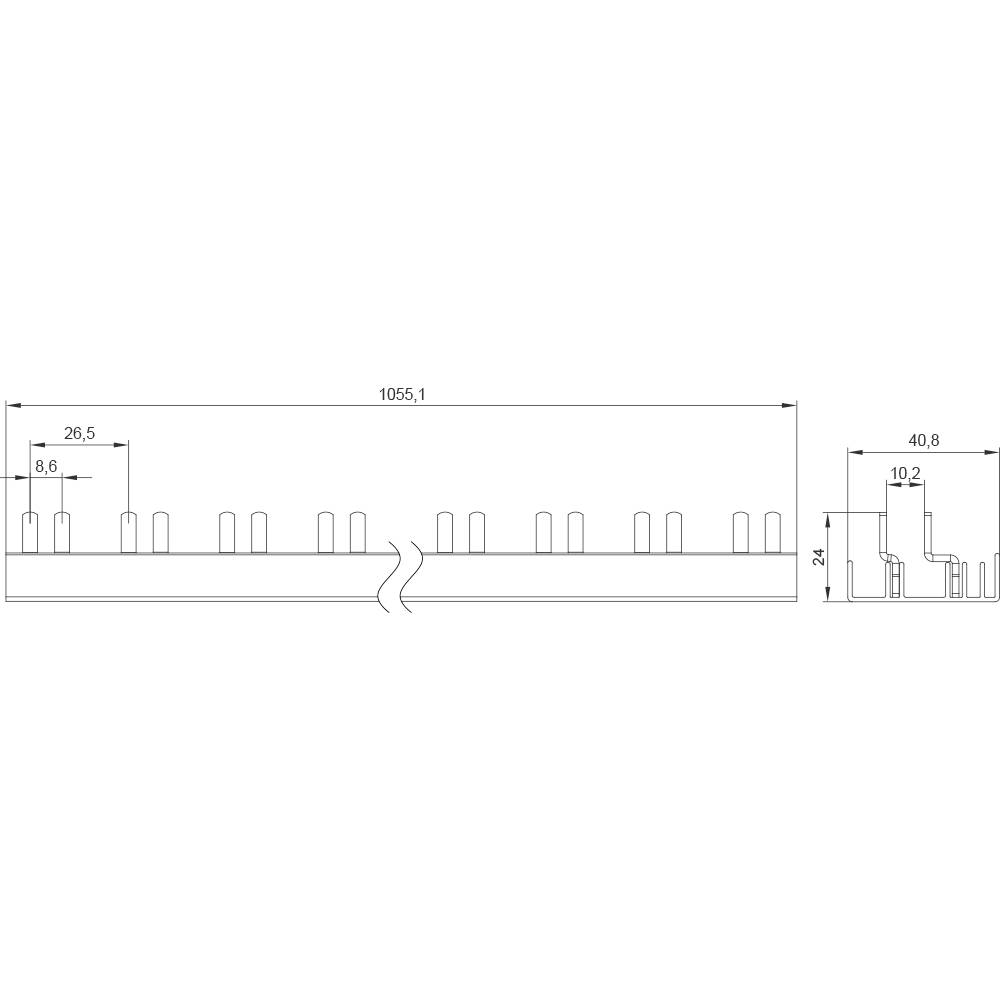

Stroke drawing/circuit diagram
Siemens 5ST37780 Compact pin bus, 10mm2 connection 1p/N compact device 1 TE + auxiliary switch Busbar No. of rows 2 10 m
Product type
Busbar
Nominal voltage
230 V
Cross section
10 mm²
Number of pins
60
Dim
(L x W x H) 1055.1 x 40.8 x 13 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Nominal voltage
230 V
- Product type
Busbar
- Cross section
10 mm²
- Number of pins
60
- Dim
(L x W x H) 1055.1 x 40.8 x 13 mm
- Nominal current
63 A
- Nominal current - rounded value
63 A
- No. of rows
2
- No. of partitions
40
- Type
10 mm², 1p+N, 60TE, compact + auxiliary switch, can be cut
- Content
1 pc(s)
- Conductor type
L
N
- Width
40.8 mm
- Height
13 mm
- Length
1055.1 mm
TRUE
2
10 mm²
1
1055 m
40
Pin
60
TRUE
TRUE
40
230 V
27
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2248439 Siemens 5ST37780 Compact pin bus, 10mm2 connection 1p/N compact device 1 TE + auxiliary switch Busbar No. of rows 2 10 m
User & Safety Instructions
User & Safety Instructions 2248439 Siemens 5ST37780 Compact pin bus, 10mm2 connection 1p/N compact device 1 TE + auxiliary switch Busbar No. of rows 2 10 m
Description
Pen rails compact, 10mm2 connection 1p/N compact device 1 TE + auxiliary switch 0.5 TE contact-resistant 1m foldable additional components for fault-current protective devices and circuit breaker of Siemens. The additional components from Siemens are an important part of SENTRON protection devices for electrical installation. As accessories for FI and circuit breaker, they offer many possibilities for realizing Diverser functions. Whether for infrastructure or industrial applications, Siemens offers the right accessories for all FI- and circuit-breakers. You have a suitable device for every requirement. The Siemens accessories for fault current and circuit breaker are distinguished above all by: 1. Universal mountable of all additional components. 2. Easy to install and connect. 3. Reliable protection during installation thanks to standard touch protection. 4. Optimal technology for your safety - only from Siemens.
This text is machine translated.
This text is machine translated.
