Name: Siemens 5SU13247FP32 RCBO Fuse size = 2 2-pin 32 A 0.03 A
Brand: Siemens
SKU: 2464231

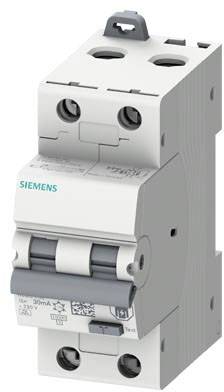

A grey Siemens circuit breaker with two switching positions, mountable on DIN rail, for electrical safety in distribution boards.

Image similar

Product type

RCBO

Number of pins

Release characteristics

Differential current rating

0.03 A

Nominal current - rounded value

32 A

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Switching capacity current
According to EN 60898 / rated value 10 kA
According to IEC 60947-2 / rated value 15 kARated breaking capacity (IΔm) / according to IEC 61009-1 4.5 kAConnectable conductor cross-section / single-wire/multi-wire: 35 mm²

Type: without hesitation

Product type: RCBO

Fuse size: 2

Number of pins: 2

Release characteristics: C

Differential current rating: 0.03 A

RoHS-compliant: Yes

Dim: (W x H x D) 36 x 85 x 72 mm

Content: 1 pc(s)

Nominal current: 32 A

Nominal current - rounded value: 32 A

Operating voltage: 230 V

Insulation class: III

Width: 36 mm

Height: 85 mm

Depth: 72 mm

: AC

: 70 mm

: 32 A

: 230 V

: C

: 500 V

: 0.03 A

: A

: 0.25 kA

: 3

: 2

: 3

: 2

: IP20

: 2

: TRUE

: 15 kA

: 2

: 4

: 10

: Undelayed

: 10

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2464231 Siemens 5SU13247FP32 RCBO Fuse size = 2 2-pin 32 A 0.03 A

User & Safety Instructions

User & Safety Instructions 2464231 Siemens 5SU13247FP32 RCBO Fuse size = 2 2-pin 32 A 0.03 A

Description

FI/LS switch, 10 kA, 2P type A, 30 mA, C-Char, In: 32A UN: 230V FI/LS for combined short-circuit protection and touch protection. Siemens' patented FI/LS switches - as an important component of SENTRON electrical protection devices - enable combined personal, fire and line protection in one device. In addition to the detection of residual currents, they also offer reliable protection against short-circuit and overload thanks to the integrated overcurrent protection device. The Siemens FI/LS switches as a combination of residual current and miniature circuit breakers are characterized above all by: 1. Increased operational safety and plant availability thanks to separate shutdown of the respective circuit. 2. Whether sinusoidal AC fault currents or smooth DC fault currents, Siemens offers the right type and special versions for all requirements. 3. Reliable safety during installation thanks to the standard included comprehensive and touch protection. 4. Tool-free release from the DIN rail or from the busbar network by means of convenient slide-manual operation. 5. Clearly visible switching position indicator. 6. Datamatrix-Code at the front of the device offers quickly and easily all information about the FI/LS-Switch. 7. Be protected according to standards: The FI/LS-switches comply with the regulations of DIN VDE. 8. Optimum technology for your safety - only from Siemens.
