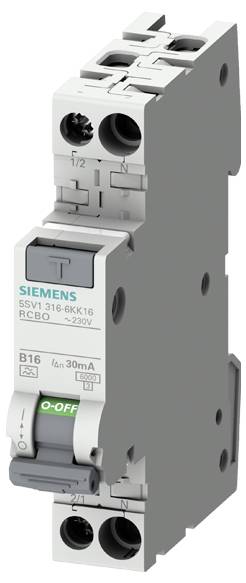

Siemens 5SV13160KK16 5SV1316-0KK16 RCBO B 0.03 A
Product type
RCBO
Number of pins
2
Release characteristics
B
Differential current rating
0.03 A
Switch-off capacity
6 kA
EAN:
Part number:
Item no:
Technical specifications
- Product type
RCBO
- Number of pins
2
- Release characteristics
B
- Differential current rating
0.03 A
- Switch-off capacity
6 kA
- Content
1 pc(s)
- RoHS-compliant
Yes
AC
70 mm
16 A
230 V
B
253 V
0.03 A
AC
3
2
1
1
15 kA
2
4
6
6
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3403145 Siemens 5SV13160KK16 5SV1316-0KK16 RCBO B 0.03 A
Description
FI/LS compact 1TE 1P+N 6kA type AC 30mA B16 Use of these devices is not permitted in all countries. Compliance with national installation regulations! FI/LS-switch SENTRON 5SV1 for the combined protection against overload, short circuit and fault currents in only 1 TE. With the compact 5ST pin-bus system you can connect the 1P+N compact devices in only 1 TE quickly and easily without any additional space. The data matrix code on the device gives you quick access to all technical data in the Siemens Industry Online Support APP. The SENTRON protection relays can be extended by many functions using the integrated accessories from the system module. Optimal technology for your safety - only from Siemens.
