Siemens 5SV33426GV01 5SV3342-6GV01 RCCB 25 A 400 V AC
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Nominal current - rounded value
25 A
Nominal current
25 A
Dim

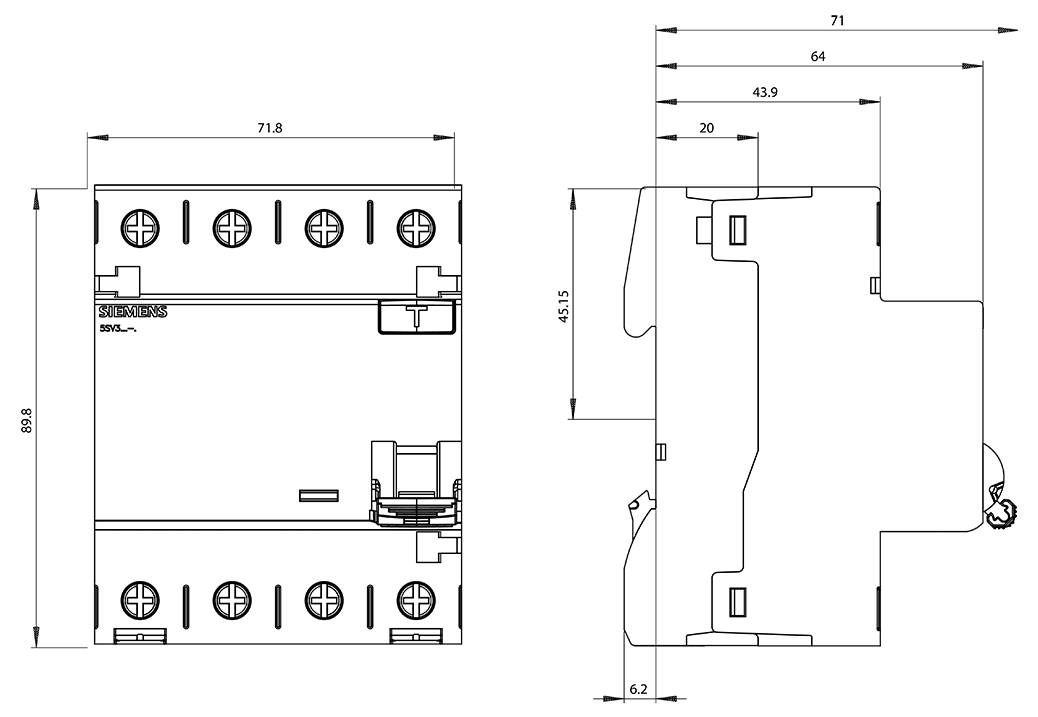

(W x H x D) 72 x 90 x 70 mm
Technical specifications
- Product type
RCCB
- Number of pins
4
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Dim
(W x H x D) 72 x 90 x 70 mm
- Type
With locking device
- Factory colour
Grey (RAL 7035)
- Content
18 pc(s)
- Nominal voltage
400 V AC
- Width
72 mm
- Height
90 mm
- Depth
70 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3749690 Siemens 5SV33426GV01 5SV3342-6GV01 RCCB 25 A 400 V AC
Description

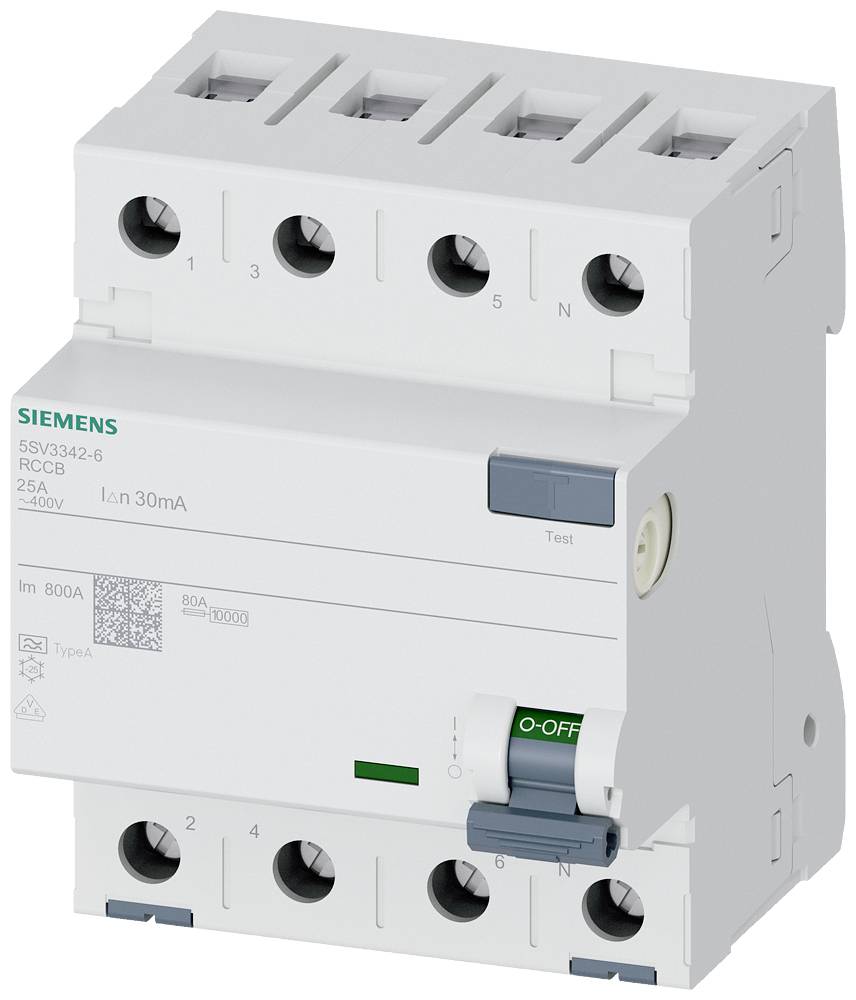

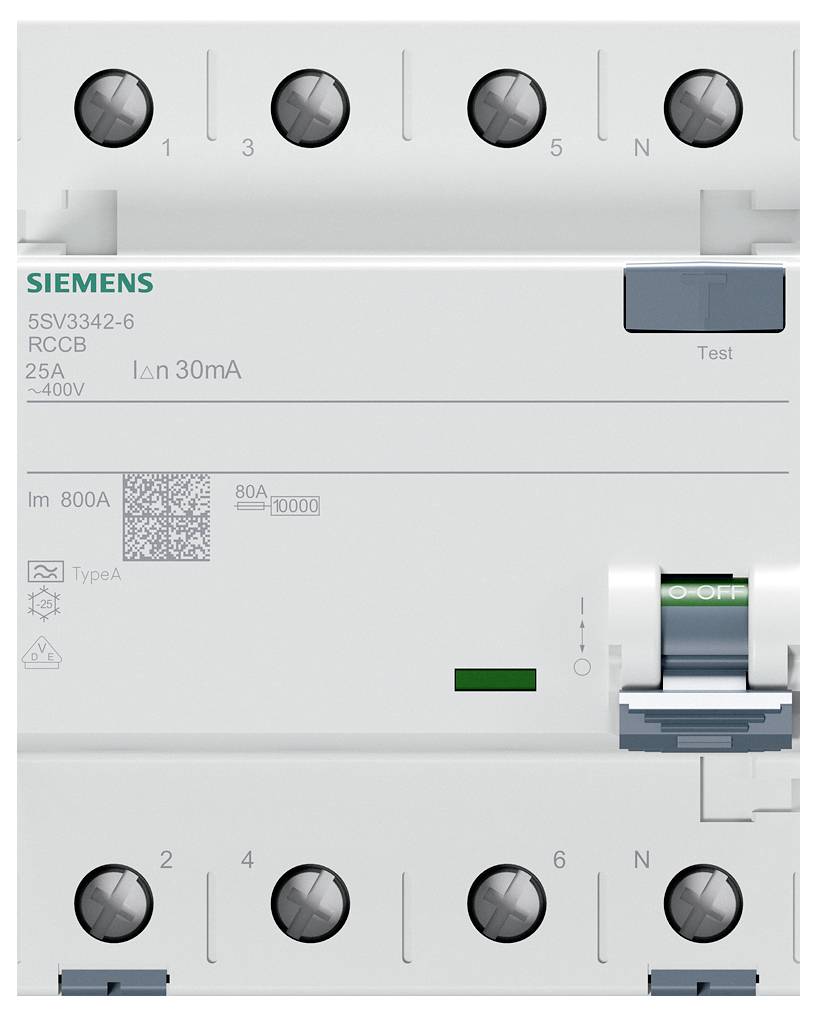

Residual-current circuit breaker, 4-pole, type A, in: 25 A, 30 mA, Un AC: 400 V, large packaging 18 pieces of SENTRON 5SV3 ground fault circuit breakers for comprehensive protection of persons and property against electrical shock. The FI-circuit breaker offers reliable safety in the installation by the usual comprehensive and protection against contact. You can release the FI circuit-breaker without tools from the DIN rail or from the bus rail system with the convenient slide-hand operation. The data matrix code on the device gives you quick access to all technical data in the Siemens Industry Online Support APP. The SENTRON protection relays can be extended by many functions using the integrated accessories from the system module. Optimal technology for your safety - only from Siemens.
