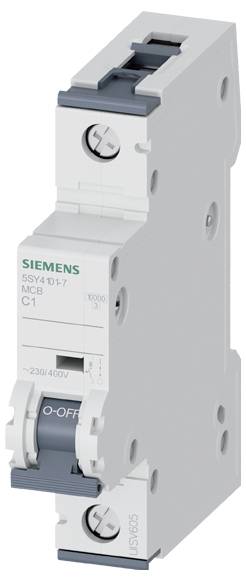

Siemens 5SY41017 5SY4101-7 Circuit breaker
Product type
Circuit breaker
Number of pins
1
Release characteristics
C/10kA
Content
1 pc(s)
Switch-off capacity
10 kA
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
C/10kA
- Content
1 pc(s)
- Switch-off capacity
10 kA
- Depth
70 mm
- Weight
0
AC
70 mm
1 A
400 V
50-60 MHz
C
440 V
3
3
3
1
FALSE
IP20
1
FALSE
0.75-35 mm²
0.75-35 mm²
-40-70 °C
FALSE
TRUE
1
10 kA
10 kA
35 kA
35 kA
4
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642328 Siemens 5SY41017 5SY4101-7 Circuit breaker
Description
Line circuit breaker 230/400V 10kA, 1-pole, C, 1A, T=70mm circuit breaker SENTRON 5SY4 for safe short circuit and overload protection for residential buildings, purpose building and special industrial applications Tool-free assembly and disassembly of the device using a double slide. Any combination of conductors and bus bars by double-chamber clamp. Easy wiring of the feed through the rear busbar. The 5SY miniature circuit breakers are available in 1-, 2-, 3-, 4- as well as in 1+N- and 3+N-pin versions. The complete accessories can be used uniformly for all circuit breakers 5SY. Easily safe with the protective devices from SENTRON.
