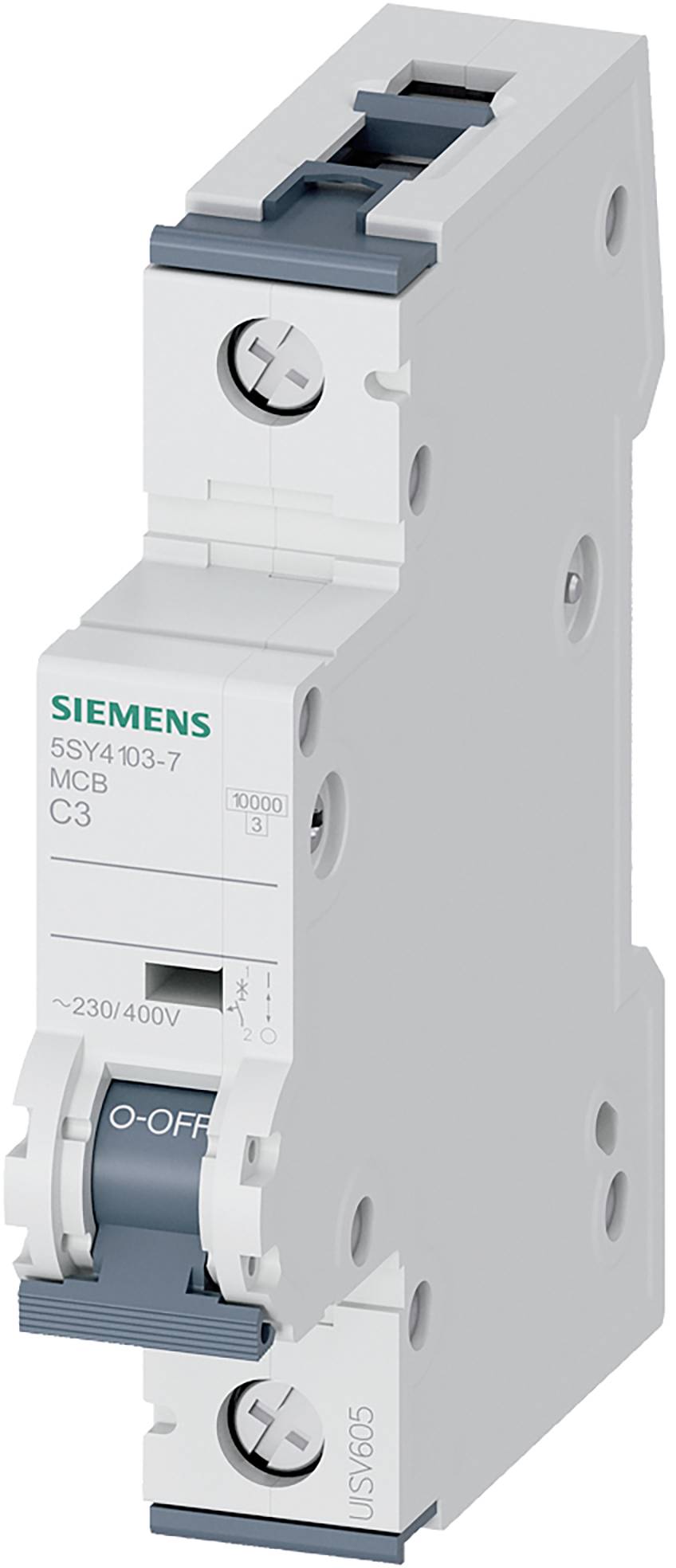

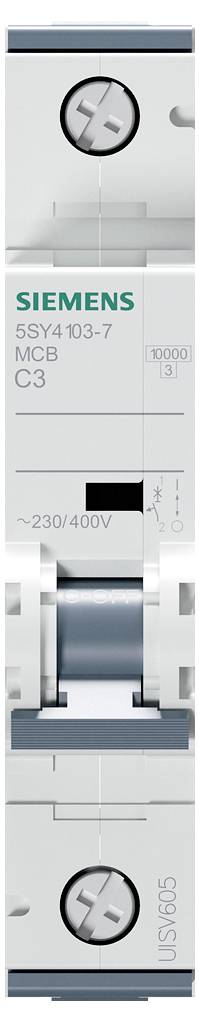

Siemens 5SY41037 5SY4103-7 Circuit breaker 3 A 400 V AC
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
1
Release characteristics
C
Nominal current - rounded value
3 A
Nominal current
3 A
Technical specifications
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
C
- Nominal current - rounded value
3 A
- Nominal current
3 A
- Content
1 pc(s)
- Nominal voltage
400 V AC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3749691 Siemens 5SY41037 5SY4103-7 Circuit breaker 3 A 400 V AC
Description

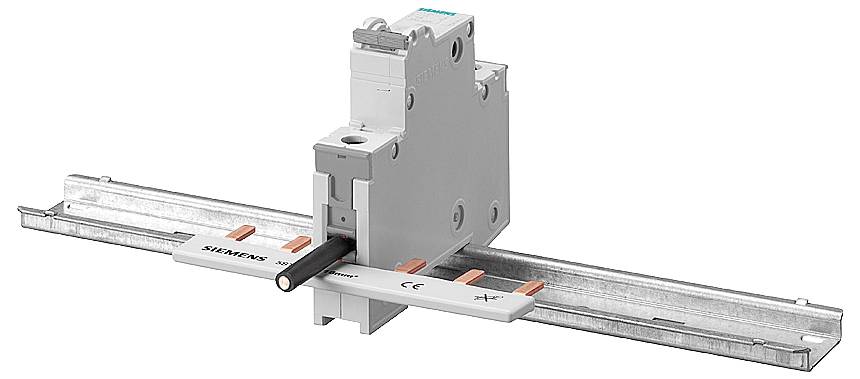

Line circuit breaker 230/400V 10kA, 1-pole, C, 3A, T=70mm circuit breaker SENTRON 5SY4 for safe short circuit and overload protection for residential buildings, purpose building and special industrial applications Tool-free assembly and disassembly of the device using a double slide. Any combination of conductors and bus bars by double-chamber clamp. Easy wiring of the feed through the rear busbar. The 5SY miniature circuit breakers are available in 1-, 2-, 3-, 4- as well as in 1+N- and 3+N-pin versions. The complete accessories can be used uniformly for all circuit breakers 5SY. Easily safe with the protective devices from SENTRON.
