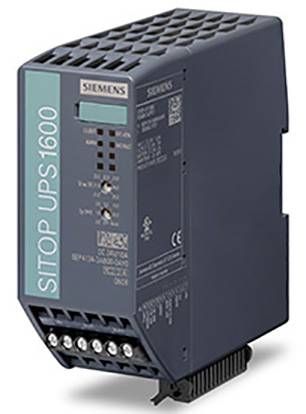

Siemens 6AG1134-3AB00-7AY0 6AG11343AB007AY0 UPS
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Output active power, typical 240 W.
- Start-up delay time, typical: 60 s.
- Type of energy storage: With batteries
- Mounting type: DIN rail mounting
- Short-circuit proof output: Yes
- Installation width 50 mm
- Mounting height 239 mm
- Input current at input voltage 24 V: 14 A.
- Adjustable charging current max.: Automatically depending on the battery module
- Charging current 1: 0.1 A.
- Charging current 2: 3 A.
- Connectable housing: Yes
- DC-UPS modular expandable: Yes
- Communication function: Yes
- Reverse polarity protection against reverse polarity input voltage: Yes
- Reverse polarity protection against polarity reversal of the energy storage: Yes
- Protection class: IP20
- Voltage rise time of output voltage, typical: 60 ms
- Peak current: 30 A;
- Battery power loss, typical 6W
- Supply voltage 24 V/DC
- Efficiency with battery operation, typical: 0.975
- Product type
UPS
- Nominal power
240 W
- Input voltage (max.)
29 V DC
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Dim
(W x H x D) 50 x 139 x 125 mm
- Output current (details)
30 A
- Input current
100 mA
- Weight
380 g
- Width
50 mm
- Height
139 mm
- Depth
125 mm
- Interfaces
yes
- Type
6AG1134-3AB00-7AY0
50
139 mm
125 mm
0.38 kg/m
DC
FALSE
FALSE
Offline
240 W
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1706987 Siemens 6AG1134-3AB00-7AY0 6AG11343AB007AY0 UPS
Datasheet 1706987 Siemens 6AG1134-3AB00-7AY0 6AG11343AB007AY0 UPS
User & Safety Instructions
User & Safety Instructions 1706987 Siemens 6AG1134-3AB00-7AY0 6AG11343AB007AY0 UPS
Description
SCALANCE TAP104 Text access port to telegram cable, 2 x RJ45 ports, 10/100MBit/s, LED diagnostics, 24 V DC Supply voltage, Manual
