Siemens 6EP3333-4SB00-3AX0 6EP33334SB003AX0 PLC power supply unit
EAN:
Part number:
Item no:
Technical specifications
- Product type
PLC power supply unit
- Type
6EP3333-4SB00-3AX0
- Manufacturer part #
6EP33334SB003AX0
- No. of outputs (max.)
1
- Height
100 mm
- Length
100 mm
- Width
70 mm
IP20
- Series
S7-1200
- Dim
(L x W x H) 100 x 70 x 100 mm
- Content
1 pc(s)
- Input voltage (max.)
264 V AC
- Min. input voltage
85 V AC
- Weight
0.5000 kg

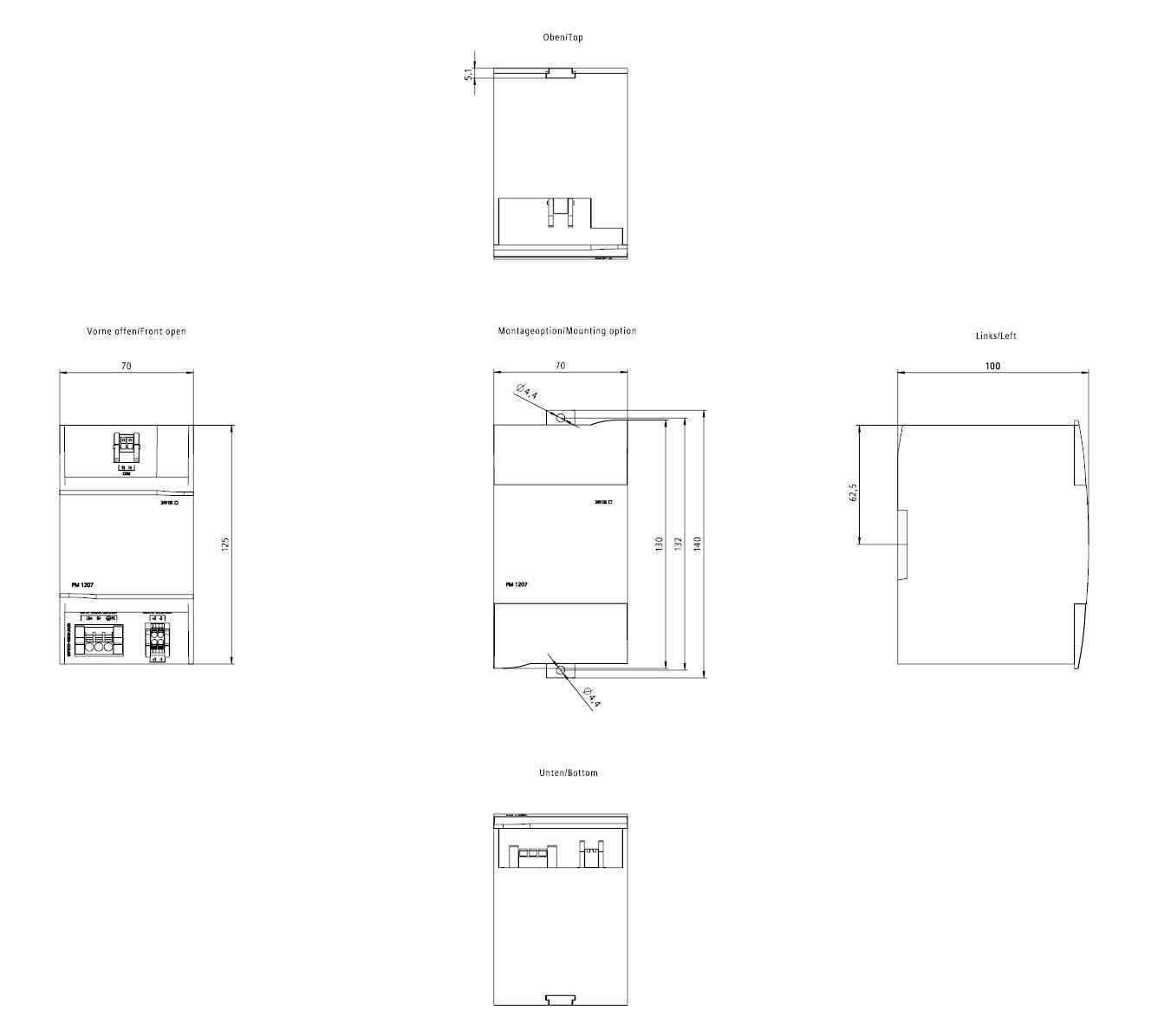

70
125 mm
100 mm
175 mm
70 mm
120 W
IP20
5 A
24 V
5 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3403249 Siemens 6EP3333-4SB00-3AX0 6EP33334SB003AX0 PLC power supply unit
Description

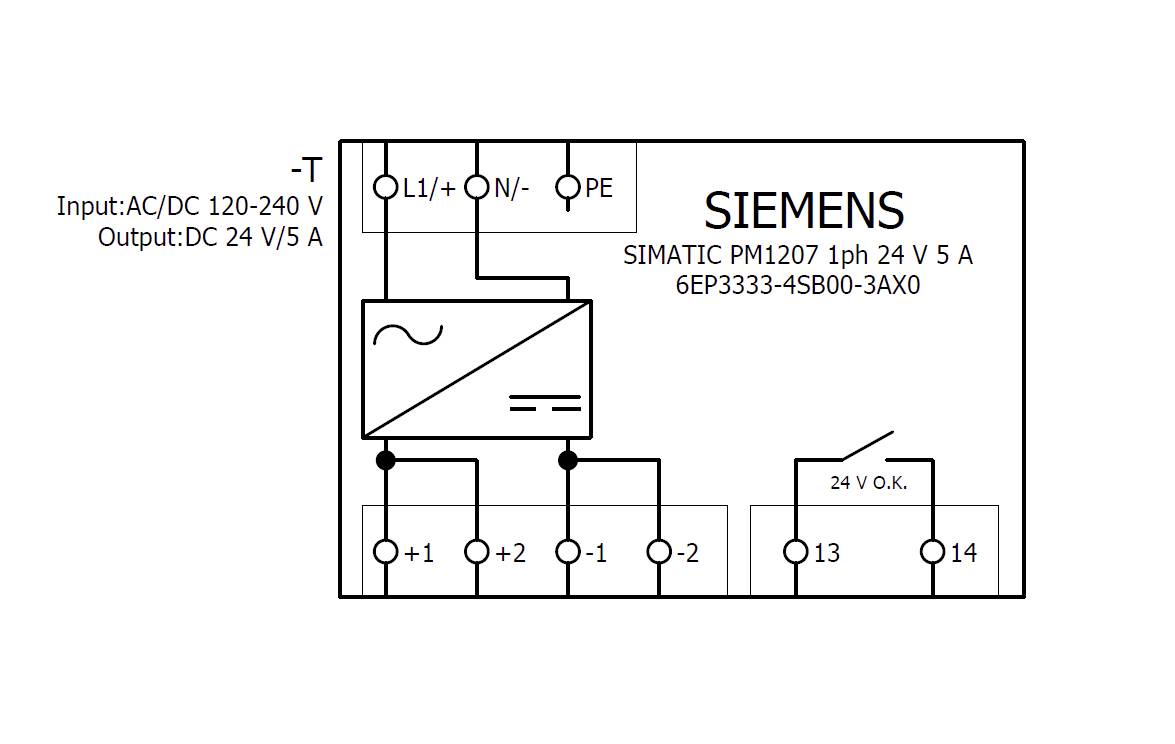

SIMATIC S7-1200 power module PM 1207 24V/5A Controlled power supply Input: AC/DC 120 - 240 V Output: DC 24 V/5 A with UDI diagnostics interface The single-phase load power supply SIMATIC PM1207 (PM = Power Module) in the SIMATIC S7-1200 G2 design requires only little space in conjunction with the micro PLC with a width of 70 mm. The 5-A power supply supplies CPUs with 24-V input, signal modules and connected consumers. The wide-range input provides for a problem-free connection to 1-phase AC/DC networks from 120 to 240 V in industrial and domestic environments. The mounting is done on DIN rail or with screws during wall mounting. Comprehensive certifications such as UL and GL enable a universal application No matter which industry, no matter what requirements - Siemens offers reliable and efficient power supplies for every system.
