Siemens 6EP34370SH003AV0 Power supply unit 24 V 40 A 960 W Content 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Type
short circuit resistant
- Nominal input voltage
400 - 500 V/AC
- Product type
Power supply unit
- Input voltage (max.)
500 V AC
- Max. output current
40 A
- Output current (max.) - rounded
40 A
960 W
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
24 V
- Dim

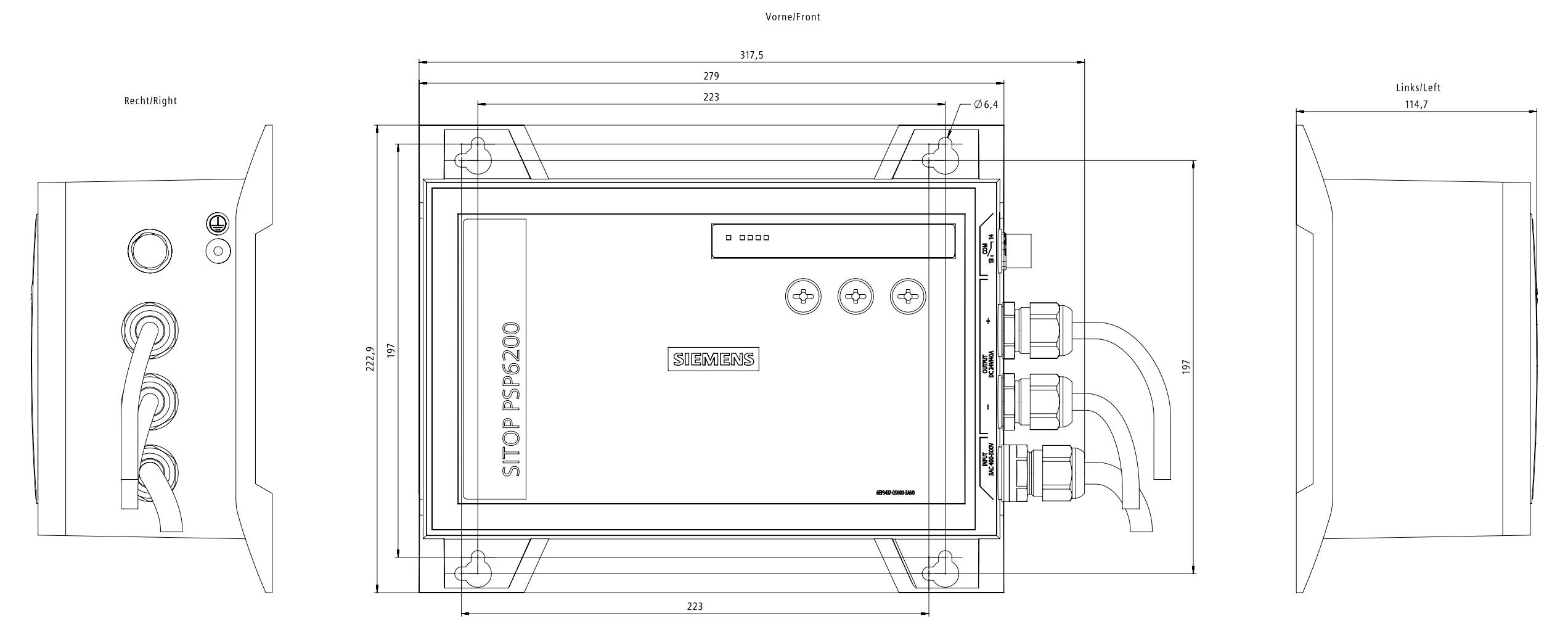

(L x W x H) 115 x 276 x 172 mm
- Output voltage (max.)
28 V
- Output voltage (min.)
24 V
- Manufacturer part #
6EP34370SH003AV0
- Content
1 pc(s)
- PSU features
Regulated
- Width
276 mm
- Height
172 mm
- Length
115 mm
IP65
- Type
6EP3437-0SH00-3AV0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3749721 Siemens 6EP34370SH003AV0 Power supply unit 24 V 40 A 960 W Content 1 pc(s)
Description

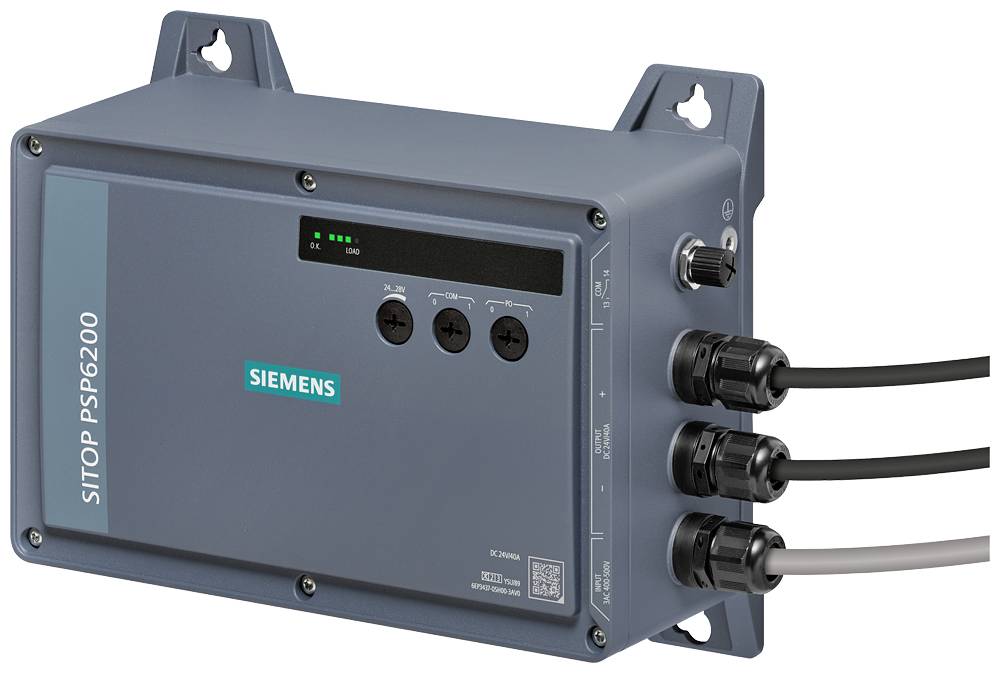

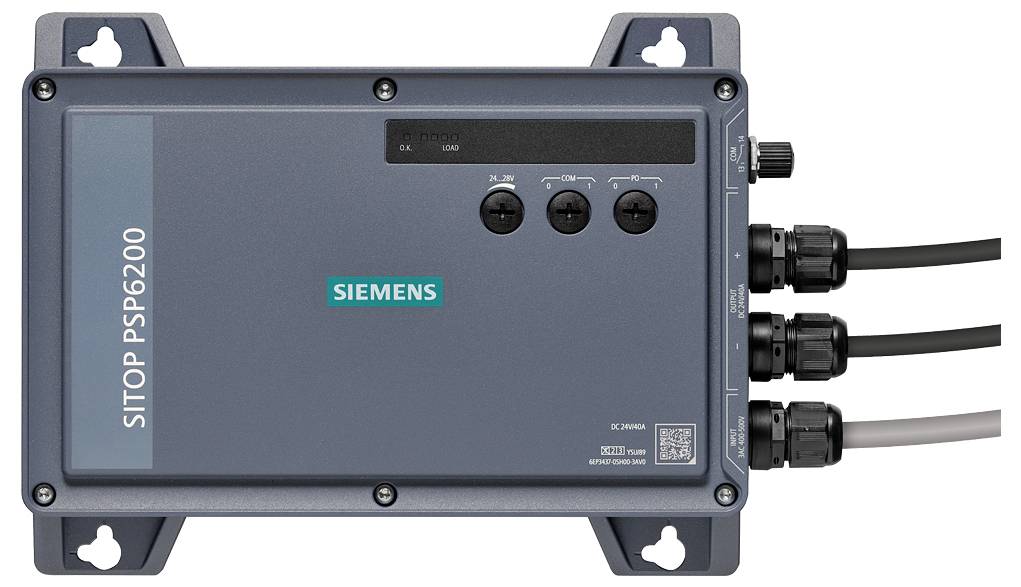

SITOP PSP6200 24 V/40 A Regulated power supply Input: AC 400 - 500 V Output: DC 24 V/40 A with diagnostic interface Protection class IP65 The SITOP PSP6200 is a new power supply in high degree of protection, which picks up the quality and efficiency of today's standard power supply SITOP PSU6200. Together with the in-built 960 W power supply in 24 VDC/40A as well as in 48 VDC/20 A the SITOP PSP6200 is a very powerful supplement for demanding applications in the field.
