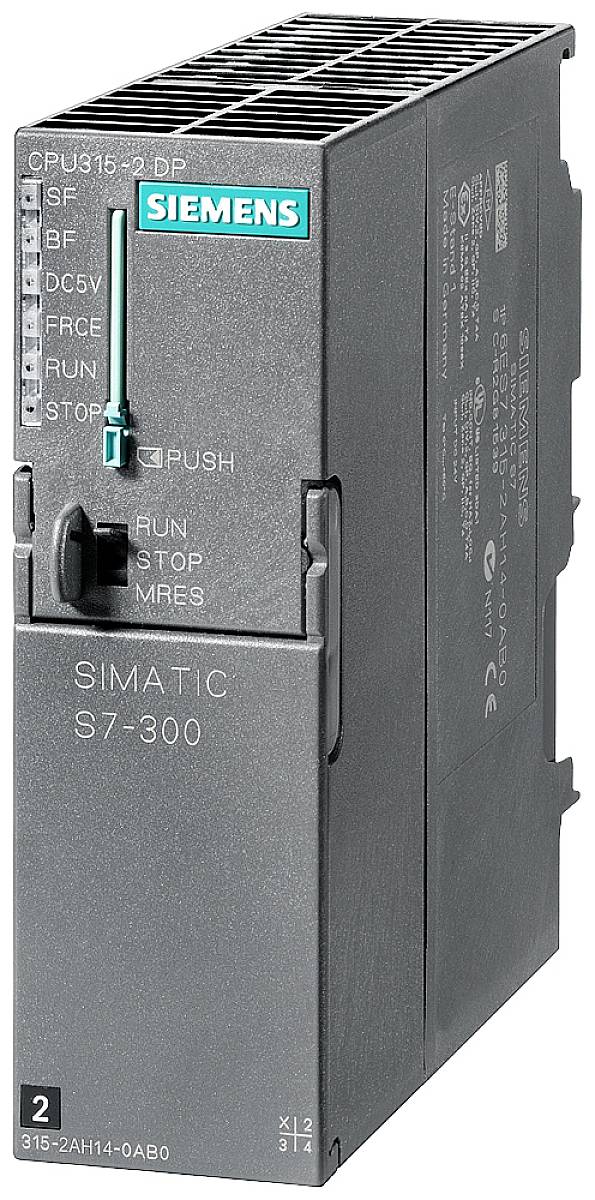

Siemens 6ES7315-2AH14-0AB0 6ES73152AH140AB0 PLC main module 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,935.00 / piece)
€ 3,935.00
incl. VAT
14-day return policy included
Technical specifications
- Power loss: 4500 mW
- Supply voltage 28.8 V.
- Current consumption 850 mA
- Product type
PLC main module
- Operating voltage
24 V DC
- Height
125 mm
- Length
130 mm
- Width
40 mm
- Program memory
256 kB
- Type
6ES7315-2AH14-0AB0
- Manufacturer part #
6ES73152AH140AB0
- Dim
(L x W x H) 130 x 40 x 125 mm
- Type
modular
- Fitting type (details)
Rail mounting
- Real-time clock
Yes (hardware)
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- Series
SIMATIC
- Factory colour
Multicolour
- UKCA
not relevant
