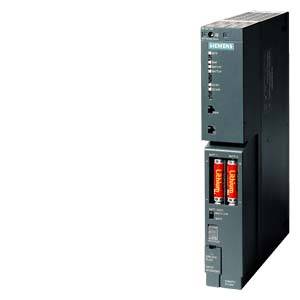

Siemens 6ES7407-0DA02-0AA0 6ES74070DA020AA0 PLC power supply 230 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 695.00 / piece)
€ 695.00
incl. VAT
14-day return policy included
Technical specifications
- Weight: 760 g
- Power loss: 20 W
- Active power consumption 52 W
- Leakage current 3.5 mA
- Design of the electrical connection: 3x 1.5 mm², solid wire or stranded wire with wire end sleeve, external diameter 3 mm to 9 mm
- Product type
PLC power supply
- Min. operating voltage
120 V AC
- Operating voltage
120 - 230 V AC
- Max. operating voltage
230 V AC
- Operating voltage
230 V AC
- Height
290 mm
- Length
217 mm
- Width
25 mm
- Type
6ES7407-0DA02-0AA0
- Manufacturer part #
6ES74070DA020AA0
- Dim
(L x W x H) 217 x 25 x 290 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- Series
S7-400
25
290 mm
217 mm
FALSE
AC/DC
FALSE
0.42 A
0.42 A
0.35 A
DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1759509 Siemens 6ES7407-0DA02-0AA0 6ES74070DA020AA0 PLC power supply 230 V AC
User & Safety Instructions
User & Safety Instructions 1759509 Siemens 6ES7407-0DA02-0AA0 6ES74070DA020AA0 PLC power supply 230 V AC
Description
Hawkeye 1500 Power supply 24V 100-250V, 50-60 Hz, 24 V, incl. replaceable Plug adapter set
