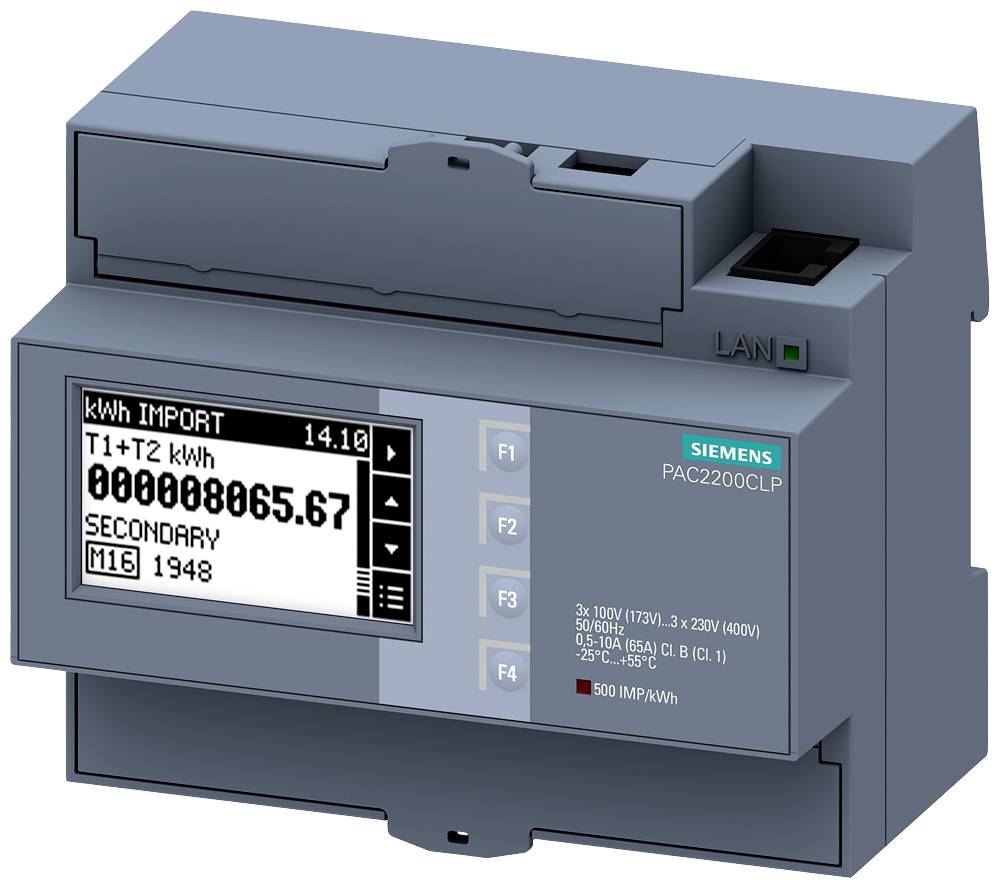

Siemens 7KM2200-2EA40-1JB1 Energy consumption meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Siemens 7KM2200-2EA40-1JB1 Energy consumption meter
- Siemens
Technical specifications
- SENTRON measuring device PAC2200-CLP L-L:400V, L-N:230V, 65A direct DIN rail device, 6TE, 3-phase LAN interface, ModbusTCP LCDisplay, MID approval screw connection, self-supplied apparent/active/blister energy certified load profile memory, measuring and calibration compliant with PTB-A50.7
- Product type
Energy consumption meter
- Type
7KM2200-2EA40-1JB1
IP40
- Weight
310
- MID-approved
No

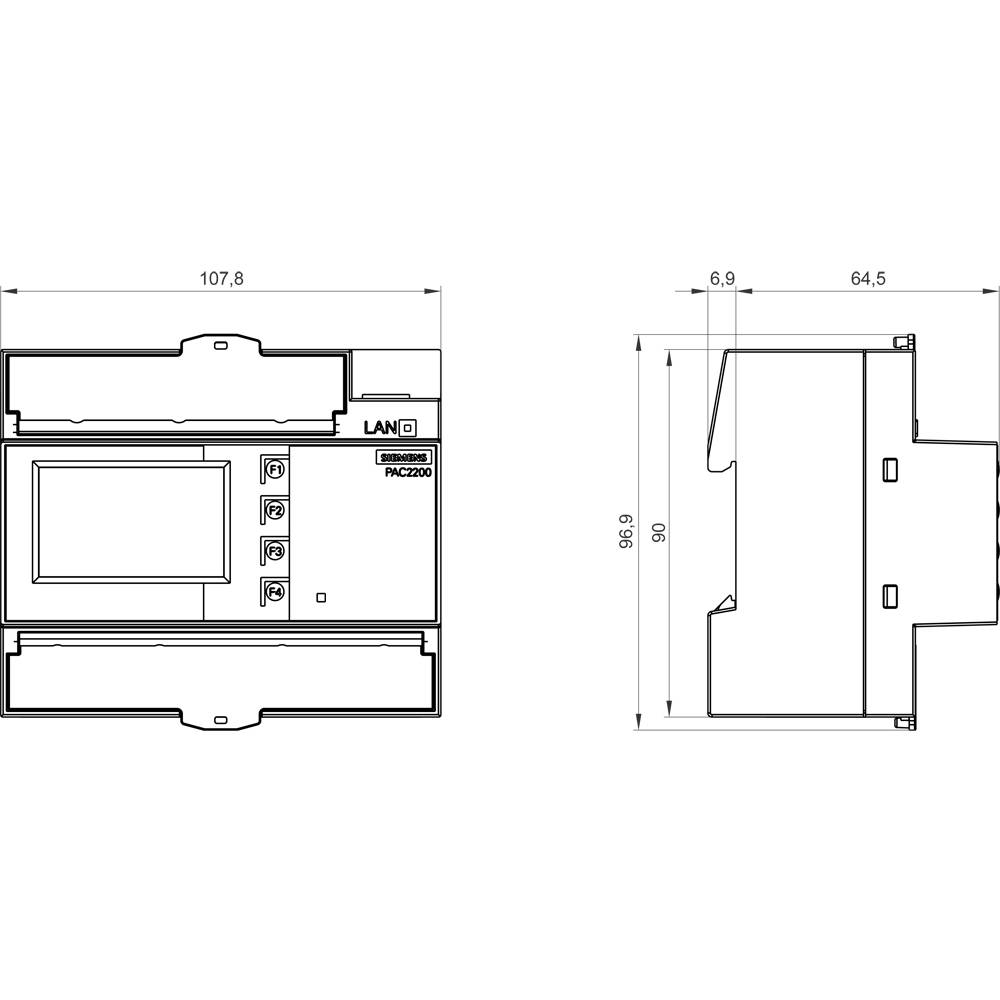

- Dim
(L x W x H) 71 x 108 x 97 mm
- Height
97 mm
- Length
71 mm
- Width
108 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2315631 Siemens 7KM2200-2EA40-1JB1 Energy consumption meter
User & Safety Instructions
User & Safety Instructions 2315631 Siemens 7KM2200-2EA40-1JB1 Energy consumption meter
Description
SENTRON measuring device PAC2200-CLP L-L:400V, L-N:230V, 65A direct rail device, 6TE, 3-phase LAN interface, Modbus-TCP LCDisplay, MID approval Screw connection, self-supplied glow / active / blister energy certified load profile memory meas- and calibrated according to PTB-A50.7
